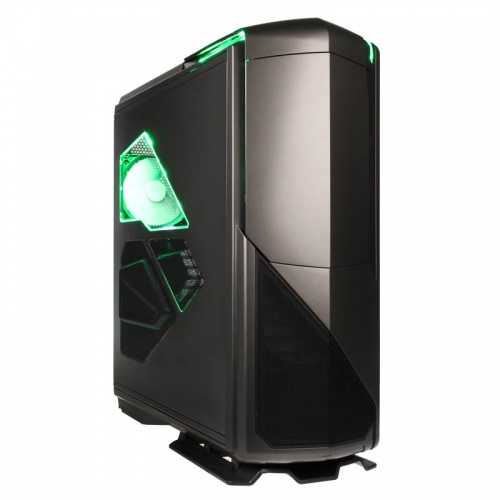

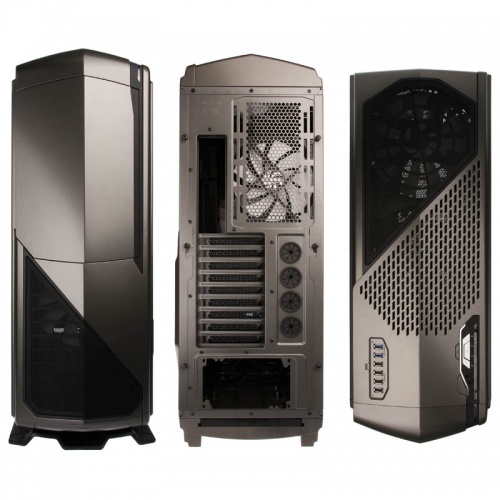

A high-tech housing as improve the extremely popular and high quality finished Phantom again, thats even possible? NZXT us answers that question with a bang and a resounding yes. The Phantom 820 is here, and combines all the advantages of its predecessor, this complemented with further detail solutions, punctual Designabwandlungen, a new stand and visually stunning LED elements on the way to perfection. Of course, back several variations of matte black, white over there to the present, very elegant-looking gunmetal.
The very potent fan control makes possible a flexible speed control, adjust volume and volume to the individual requirements. Since each of the four ports can be loaded with rich 15 watt, several fans are connected via a port and controlled. Here, the fan also down to 0 r / min variable, thus completely disabling. Naturally, all fan slots are provided with a dust filter, which are changeable through the filter in the lid.
For the integration of water cooling has the Phantom 820 Tower hose over four holes on the back panel. Furthermore, it is thereby possible to triple radiators with 120mm fans spoil with up to 60 mm in height (90 mm including fans). Add to that the possibility of a 120/140-mm-Single- 240/280-mm-Dual-Radiator or bottom of the housing to accommodate behind the power supply, if you dispense with the lower of the two HDD cages.
Specifications:
Manufacturer Number: CA-PH820-G1
Dimensions: 241 x 650 x 612 mm (W x H x D)
Steel: Material
Weight: 14.78 kg
Color: (Gunmetal) Grey (metallic)
Form factor: XL-ATX, E-ATX, ATX, Micro-ATX, SSI EEB, SSI CEB
Fan Total possible:
1x 200 mm (front)
1x 140/120 mm (rear, variable height)
1x 140/120 mm (HDD cage)
1x 200 mm (left side panel)
2x 200/140/3 x 120 mm (lid)
2x 140/120 mm (bottom)
Of preinstalled:
1x 200 mm (front)
1x 140 mm (rear)
1x 200 mm (left side panel)
1x 200 mm (lid)
Fan control: 4 channels, 10 fans, multiple levels (up to 15 watts per channel)
Filter: front, side, top, bottom
Bays:
4 x 5.25 inches (external, no tools required)
6x 3.5 / 2.5 inch (internal 3.5 inch tools)
Power Supply: Standard ATX 1x (optional)
Expansion Slots: 9
I / O panel:
2x USB 3.0 (internal connector)
4x USB 2.0
SD Card Reader
1x each Audio In / Out
Maximum graphics card length: 355 mm
Mainboardtray distance to the side wall: 208 mm
