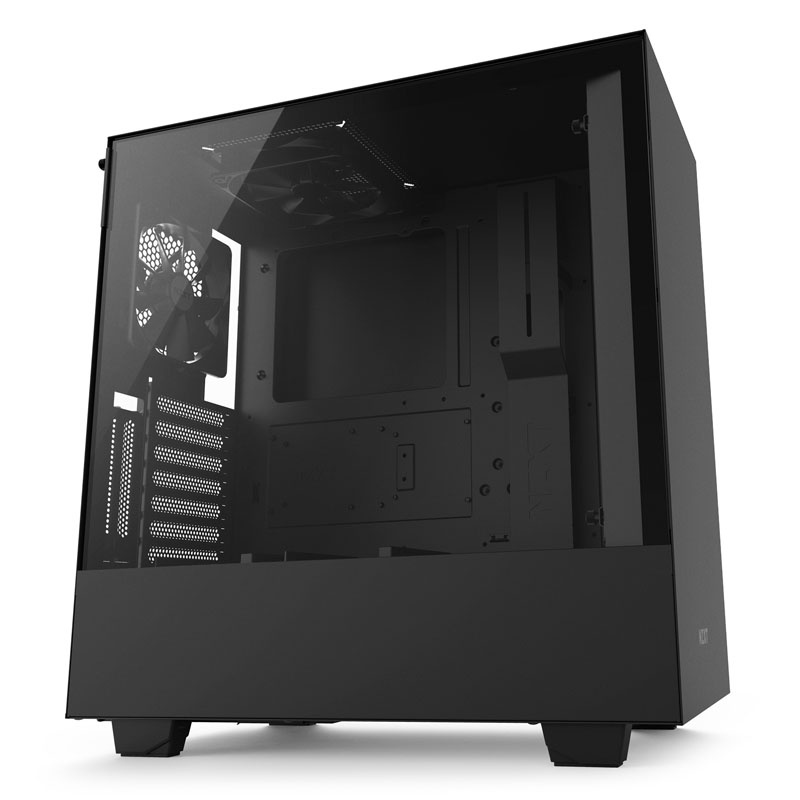

The H500i is the new noble midi tower from NZXT. In this case, the edges are exceptionally sharp, yet its exterior is very smooth, minimalist and geometrically shaped.
The cuboid is above all, thanks to its matt black surface design-technically beyond all measure. In addition, the left side houses a tempered glass window that reveals the equally black interior of the H500i.
The H500i is the new noble midi tower from NZXT. In this case, the edges are exceptionally sharp, yet its exterior is very smooth, minimalist and geometrically shaped.
The cuboid is above all, thanks to its matt black surface design-technically beyond all measure. In addition, the left side houses a tempered glass window that reveals the equally black interior of the H500i.
The H500i is the new noble midi tower from NZXT. In this case, the edges are exceptionally sharp, yet its exterior is very smooth, minimalist and geometrically shaped.
The cuboid is above all, thanks to its matt black surface design-technically beyond all measure. In addition, the left side houses a tempered glass window that reveals the equally black interior of the H500i.
No products found
The features of the NZXT H500
– Minimalist black case from NZXT
– Side window made of tempered glass
– Space for 280mm radiators
– Slots for seven 2.5-inch drives
The NZXT H500i Midi-Tower in detail

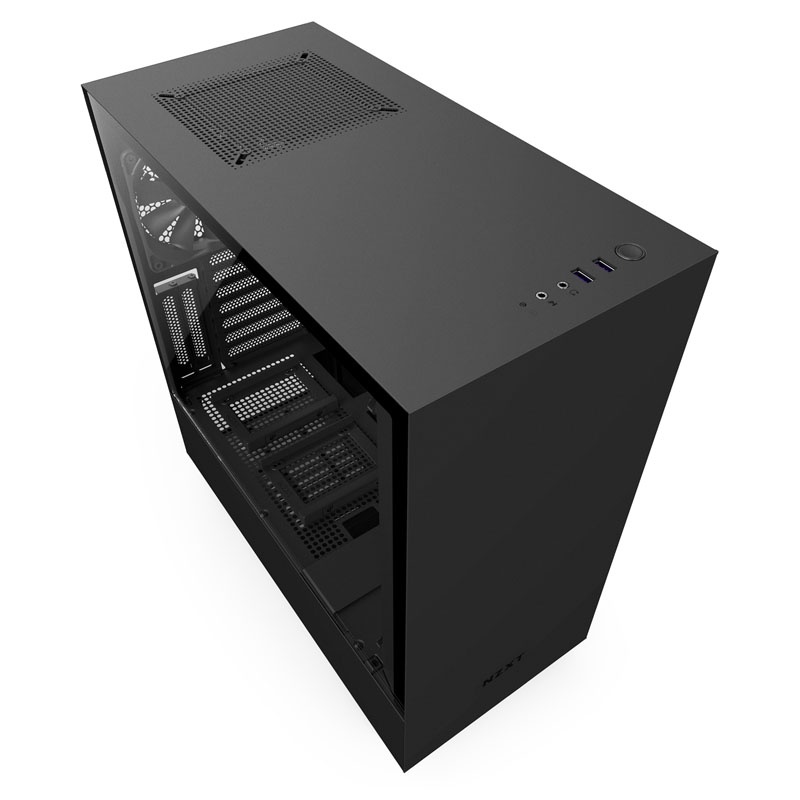

The front of this case is completely flat with no I / O panel. The latter is namely on the cover of this housing dream. The panel has two USB 3.0 ports and two audio jacks, as well as the inconspicuous power button. Cable management can take up to 23 millimeters.
As a special feature, the NZXT H500i Midi-Tower has an integrated controller called Smart Device with CAM support. It is used to control the Aer F fans already installed as well as the two RGB LEDs, which are immediately visible through the tempered glass window. Other fans or even more LED strips can of course also be connected. An acoustic sensor helps determine the optimal balance between cooling and noise. The control takes place via function-rich software on the PC.
Space for a lot of hardware
In the black interior is a lot of space. In addition to EATX, ATX, Micro ATX and Mini-ITX motherboards, seven expansion cards can also be installed in the housing. You can also install up to two 3.5-inch drives in the drive cage. There are also two 2.5-inch holders on the back of the motherboard trays or on the power supply cover. Dust filters are plentiful: on the right side panel, at the bottom front, on the power supply and on the lid.
Enough space in the NZXT H500i Midi Tower is also available for AiO water cooling and even a custom loop. 280 mm radiators can be attached to the front or the top. Alternatively, aside from the two 120 mm fans on the top, which are preinstalled on the top and back, there is room for 140 mm fans instead. Two 120mm or two 140mm fans can be attached to the front. Who puts on a CPU cooler, has up to 165 mm in height. The graphics card may be up to 381 mm long.
Technical details:
– Dimensions with feet: 210 x 460 x 428 mm (W x H x D)
– Material: steel, tempered glass
– Weight: 7 kg
– Color: Black
– Form factor: ATX, Micro-ATX, Mini-ITX
Total possible fan:
– 2x 120 mm or 2x 140 mm (front)
– 1x 120 mm (back)
– 1x 120 or 1x 140 mm (cover)
Preinstalled:
– 1x 120 mm (top)
– 1x 120 mm (back)
– Filter: front, right side panel, cover, bottom
Radiator Mountings:
– Up to 1x 280 mm (front side)
– 1x 120 mm (back side)
Drive Bays:
– 2x 3.5 inches (internal)
– 2x 2.5 inches (internal)
– Power supply: 1x standard ATX (optional)
– Expansion Slots: 7
I / O panel:
– 2x USB 3.0 (internal connection)
– 1x each HD Audio In / Out
– Maximum CPU cooler height: 165 mm
– Maximum length of the graphics card: 381 mm
– Manufacturers warranty: 2 years
