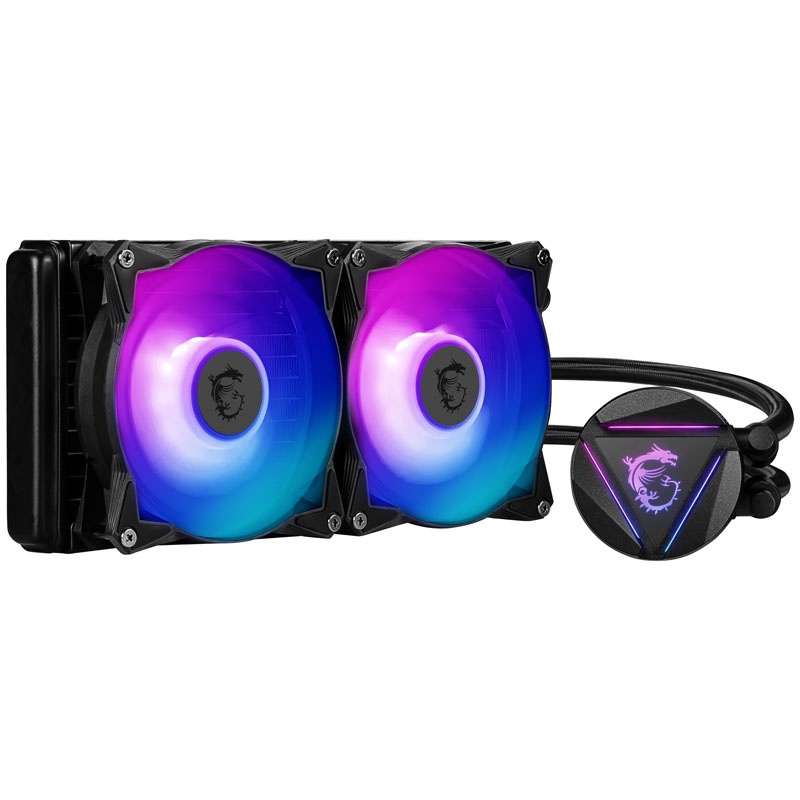

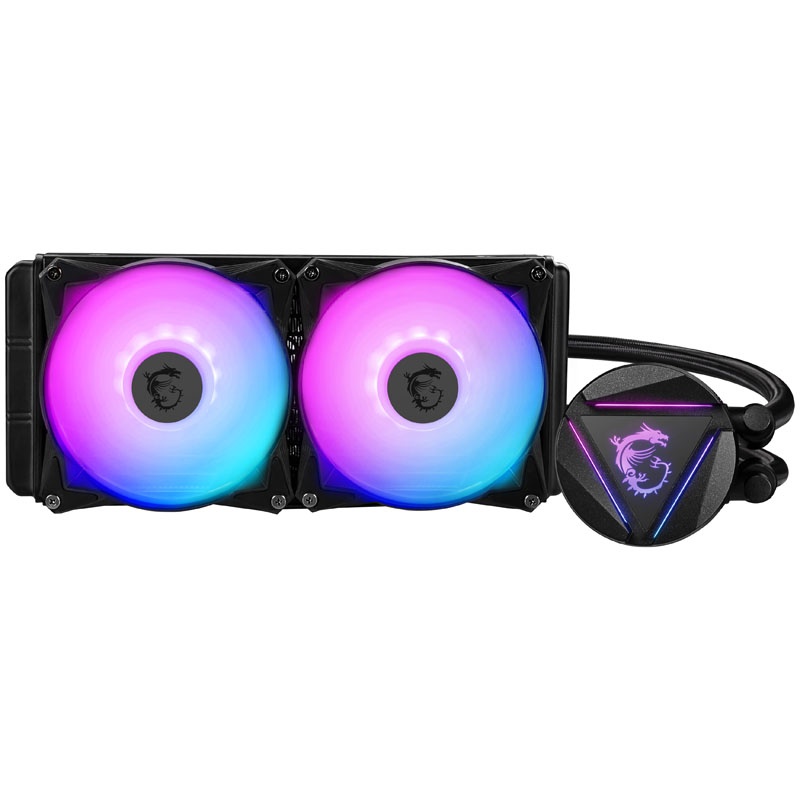

All-in-one water cooling with digitally addressable RGB lighting from MSI.
No products found
The MAG CoreLiquid 240R is compatible with many AMD and Intel sockets and looks extremely stylish thanks to the addressable RGB lighting of the cooler and fans.
The features of the MSI MAG CoreLiquid 240R at a glance:
– AIO from MSI with 240 mm radiator
– Prefilled and maintenance free
– High cooling performance thanks to the 27 mm thick radiator
– Two 120 PWM fans with ARGB lighting
– Powerful pump with 4200 rpm
– CPU cooler with addressable RGB lighting
– High compatibility with AMD and Intel sockets
The features of the MSI MAG CoreLiquid 240R in detail
The MAG CoreLiquid 240R has a 240 mm radiator, which is cooled by two 120 mm PWM fans. The pump sits in the radiator and offers a maximum speed of 4200 rpm. The top of the CPU cooler can be rotated 270 degrees to look good in any position.
The two fans ensure that the radiator is constantly supplied with fresh air. MSI donated two 120 mm fans with digitally addressable RGB lighting to the MAG CoreLiquid 240R. These rotate at a maximum of 2000 rpm and achieve a delivery volume of 133.76 m³ / h and a static pressure of 2.39 mm H2O. At 34.3 dB (A), they remain quiet.
Two additional fans can optionally be installed on the back of the radiator for push-pull operation. In line with the digitally addressable RGB lighting on the CPU block, the two fans are also equipped with colorful LEDs that can be controlled and synchronized via 3-pin RGB (5V).
The mounting system of the MAG CoreLiquid 240R is for the Intel sockets 1150, 1151, 1155, 1156, 1200, 1366, 2011, 2011-3 and 2066 as well as for AMD boards with AM4, FM2 +, FM2, FM1, AM3 +, AM3, AM2 + and AM2 suitable.
Technical details:
Radiator:
– Dimensions: 274 x 120 x 27 mm (L x W x H)
– Material: aluminum
– Hose length: 400 mm
– Fan:
– 2x 120 mm
– Connection: 4-pin PWM / 3-pin ARGB (5V)
– Bearing type: Two Ball Bearing
– Speed: 500 – 2000 rpm
– Volume: 14.3 – 34.3 dB (A)
– Delivery volume: 36.7 – 133.76 m³ / h
– Static pressure: max. 2.39 mm H2O
– Current: 0.15 A.
– Power consumption: 1.8 W.
– Cable length: 550/350 mm (RGB cable / fan cable)
– Cooler:
– Dimensions: 80.57 x 66.82 x 48.58 mm (L x W x H)
– Cable length: 400 mm (RGB cable)
– Pump:
– Speed: 4200 rpm
– Illumination: ARGB, 3-pin RGB (5VDG, 5V)
– Current: 0.34 A.
– Power consumption: 4.08 W.
– Compatibility (base):
– Intel: LGA 1150/1151/1155/1156/1200/1366/2011 / 2011-3 / 2066
– AMD: AM4 / FM2 + / FM2 / FM1 / AM3 + / AM3 / AM2 + / AM2
– Equipment:
– 1x splitter cable
– 1x PSU Molex 4-pin on fan cable
– Manufacturer guarantee: 3 years
