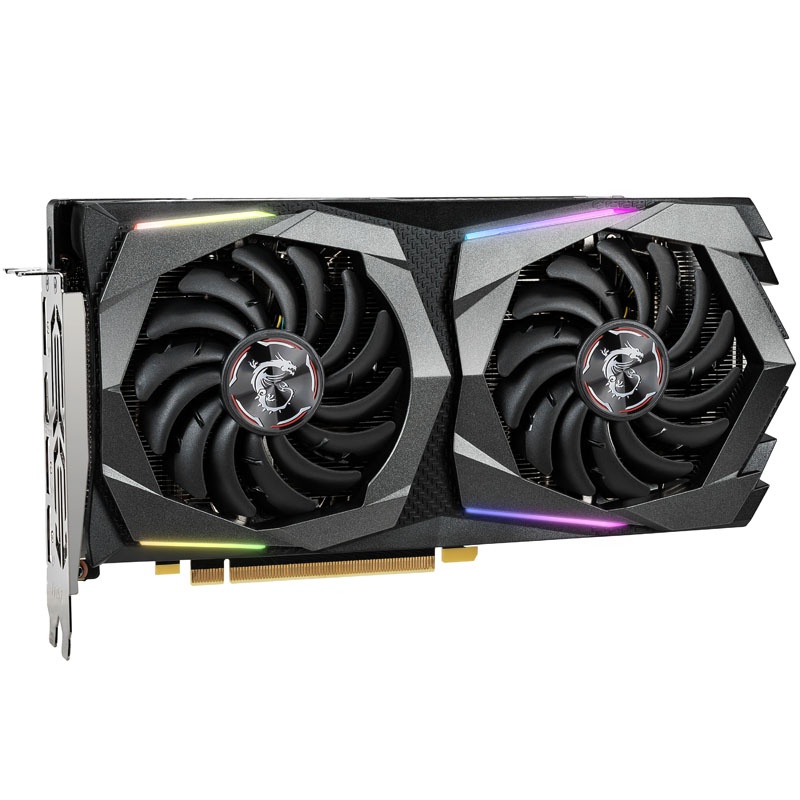

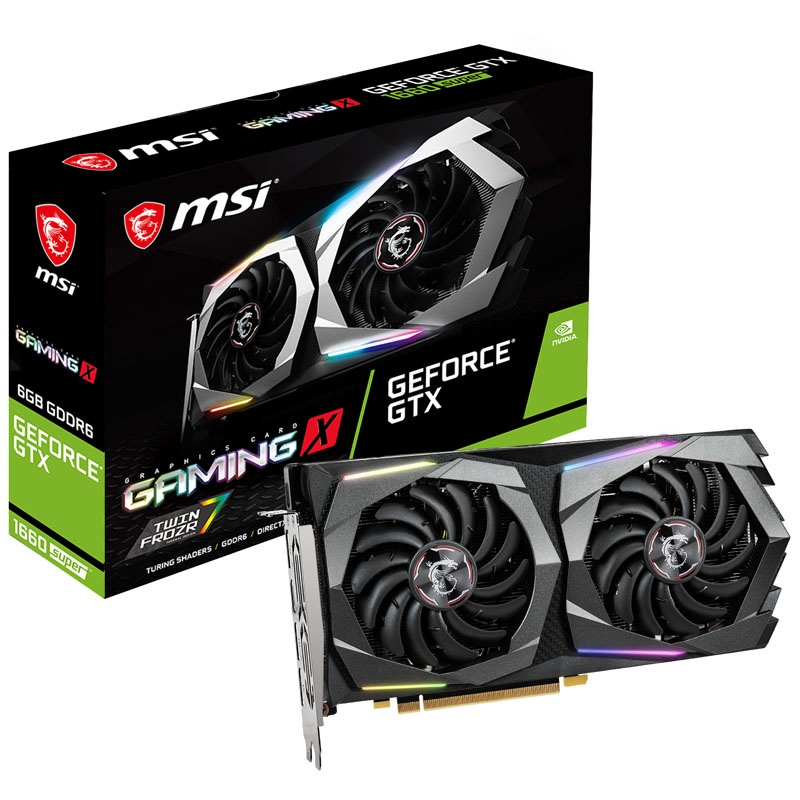

The MSI GeForce GTX 1660 Super Gaming X offers a good price-performance ratio as a mid-range gaming graphics card.
No products found
The TU116 graphics chip, based on the Turing GPU architecture, is the heart of the GTX 1660 Super and is produced in a 12 nm process. The shrunk manufacturing process in combination with the Turing architecture enables increased efficiency and higher clock rates compared to Pascal. The GeForce GTX 1660 Super is equipped with 6 GB of video memory with the GDDR6 specification, which clocks significantly higher compared to the memory on the non-super models.
The features of the MSI GeForce GTX 1660 Super Gaming X at a glance:
– Dual fan cooler design with semi-passive mode
– With RGB LED lighting and aluminum backplate
-Base clock of the GPU: 1530 MHz
– Boost clock of the GPU: 1830 MHz
– High-end graphics memory: 6 GB GDDR6
– Memory clock: 7000 MHz (effectively 14,000 MHz)
– TDP: 125 watts
– Additional power connector: 1x 8-pin PCIe
– Video outputs: 3x DP 1.4, 1x HDMI 2.0b
– Cooler design and clock speeds of the MSI GeForce GTX 1660 Super Gaming X
The TU116 graphics chip of the MSI GeForce GTX 1660 Super Gaming X clocks with a 1830 MHz boost clock, which automatically takes effect via GPU Boost 4.0 when the load is sufficient. Thanks to an effective dual fan cooler design, the Turbo Boost is also held for a long time, so that the graphics card delivers the optimal performance. The 6 GB of GDDR6 video memory connected to the chipset via a 192-bit memory interface and with a memory bandwidth of 336 GB / s clock with 7000 MHz (effectively 14,000 MHz). The 24.7 cm long graphics card is powered by an additional 8-pin PCIe connector. The cooler of the graphics card is equipped with RGB LED lighting, which can be set using the manufacturers software.
Free games for NVIDIA GeForce GTX / RTX gaming graphics cards:
For every game graphics card purchased from Caseking, we send the associated voucher codes of the current game bundles by email within 14 days of receipt of the goods. No coupon code will be sent for non-qualified products. Only end customers receive free additions. All promotions are limited and only valid while stocks last or until the offer ends. The judges decision is final. All currently active NVIDIA voucher promotions are listed below:
There are currently no active game bundles from NVIDIA.
Technical details:
Dimensions: 247 x 46 x 127 mm (W x H x D)
Height: 2.5-slot
GPU: GeForce GTX 1660 Super
Chip: TU116-300
Manufacturing: 12 nm
GPU clock: 1530 MHz
Boost clock: 1830 MHz
CUDA cores (shaders): 1408
Memory size: 6144 MB
Memory clock: 7000 (14,000) MHz
Type: GDDR6
Memory connection: 192 bit
Memory bandwidth: 336 GB / s
Slot: PCIe x16 (PCIe / PCIe 2.x / PCIe 3.0)
Connections:
3x DisplayPort 1.4
1x HDMI 2.0b
Power supply: 1x 8-pin PCIe
Recommended power supply output: min. 450 watts
Features: DirectX 12, OpenGL 4.5, Vulkan API, NVIDIA Ansel, G-Sync HDR, NVIDIA GPU Boost 4.0, HDCP 2.2, NVIDIA Surround, 3D Vision, Tessellation, PhysX, CUDA, Adaptive Vertical Sync, VXGI, Super Resolution, VR- ready
