As nomenclatural successor to the GeForce GTX 970, the GTX can measure in 1070 after the first benchmark results with the GeForce GTX Titan X!
The features of the MSI GeForce GTX 1070 Sea Hawk X Overview
Ingenious hybrid cooling solution
Base clock of the GPU: 1607 MHz
Boost clock of the GPU: 1797 MHz
Fast Memory clock: 4,096 MHz (8,192 MHz effective)
As an additional power connector: 1x 8 pin
MSI GeForce GTX 1070 Sea Hawk X Hybrid Cooler & LED Lighting
The MSI GeForce GTX 1070 Sea Hawk X has a base clock of 1,582 MHz. With GPU Boost 3.0 this can be increased if necessary to a boost clock of 1,771 MHz, just with increased power and temperature control target can be even herauskitzeln higher clock rates. About the MSI gaming app, the graphics card in the OC mode may change. The OC mode increases the base clock to 1607 MHz and the boost clock at 1.797 MHz. The memory clock is in OC mode. at 4,096 MHz (8,192 MHz effective).

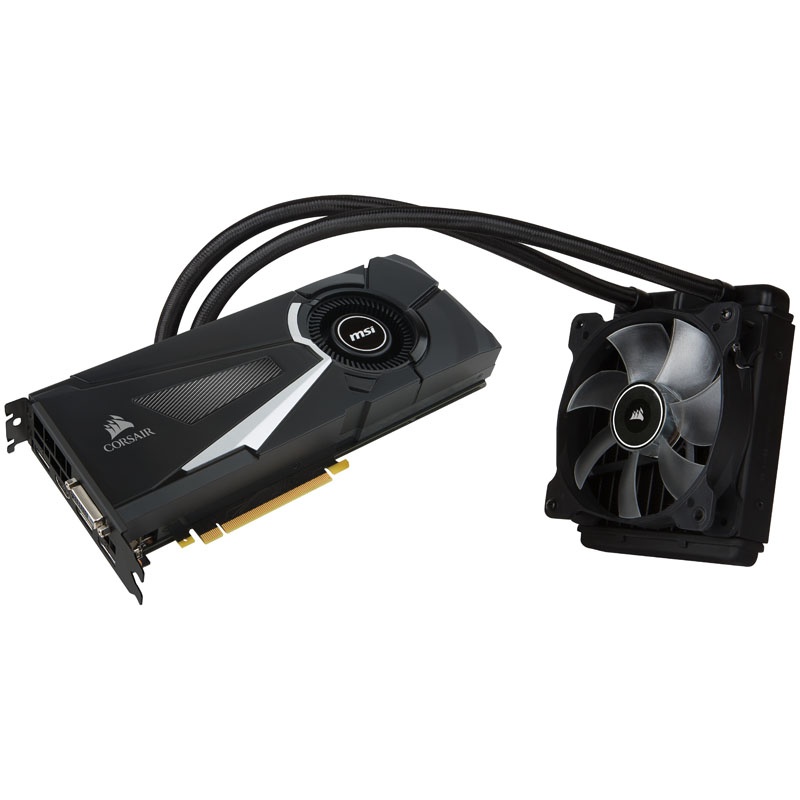

MSI uses the GeForce GTX 1070 Sea Hawk X on an ingenious hybrid cooling solution. Here, a cooler is installed, the (LCS) combines the advantages of a compact water cooling with those active ventilation. On the one hand are the GPU as the main heat source their heat via water-block the coolant from which is pumped in a closed circuit in a 120-radiator including fan – ie a corresponding slot must be present in the PC case! – The cooling performance is water cooling typically very high.
On the other hand, an additional axial fan is let into the casing of the cooler, which cools the active memory devices and the voltage regulation on the PCB map. In sum, this approach results in a high cooling potential at fairly low noise level, which also allows significantly increased clock rates compared to the reference model.
The black and silver GTX 1070 Sea Hawk X MSI has a LED illuminated MSI logo. The LED lighting can be adjusted via the MSI gaming app. The black backplate gives the GTX 1070 additional stability and is decorated with a black-stylized MSI gaming dragons and silver accents.
GeForce GTX 1070: gaming power for VR and 4K!
The 8 GB of video memory, the GeForce GTX 1070 are connected via a 256-bit memory interface to the GPU. The GP104 graphics chip GTX 1070 has 1,920 CUDA cores and the computing power of the GTX 1070 is 6.5 TFLOPS. This is the GeForce GTX 1070 in terms of computing power slightly above the GeForce GTX Titan X, which the Maxwell GPU series flagship!
The GTX-1070-series graphics cards support DirectX 12 and the latest gaming technologies, including NVIDIA GameWorks, Warp, stereo X, VR-Audio, PhysX and SMP (Simultaneous Multi-Projection). The latter is supported in version 4.0 and provides mainly for VR, Curved displays and multi-display setups great benefits.
Especially while gambling in the Virtual Reality (VR) benefit gamers of the new technology. With SMP 4.0 Total 16 viewports and two viewports can be rendered in a single pass. By utilizing multiple viewports the rendered image also comes out with a lower number of calculated pixels, which increases the energy in VR mode improved enormously.
The GeForce GTX 1070 has an image transfer of 4K / Ultra HD resolutions at 60 Hertz three DisplayPort 1.4 and HDMI 2.0b port, the latter has HDCP 2.2, and thus send encrypted signals and receive ( 4K Blu-Ray / 4K streams). Alternatively, has the GTX 1070 a DVI-D (Dual Link) output.
In order to exploit the full potential of the card in the future, new drivers from NVIDIA or MSI should be downloaded and installed at regular intervals.
Graphics Card Exchange without waiting for Caseking!
During the warranty period of 2 years from receipt of the goods are at Caseking of retail entitled complaining graphics cards – that is, those with a confirmed defect of us – all brands listed below directly exchanged against virgin (if in stock). A submission of the defective goods to the manufacturer and related longer waiting times thus completely eliminated! If the graphics card to be replaced is no longer in stock or available, so a credit issued by us. Then can thus be freely selected from our range an alternative graphics card. Here incurred extras are easily been settled and any resulting excess payment shall be refunded by us.
What do I do with failures of my graphics card? -> Graphics Card immediate replacement if defective (click here)
Brands: ASUS, Club 3D, EVGA, Gigabyte, Inno3D, Palit, PNY, PowerColor, Sapphire, VTX3D, XFX, ZOTAC & King Mod
Free games for NVIDIA GeForce GTX gaming graphics cards:
Each Purchased at Caseking games graphics card will be the associated Coupon codes in the latest game bundles. Not eligible products are not accompanied by vouchers. All promotions are limited and only valid while stocks last or will be finished by the offer. The decision is final. Subsequently all currently active coupon actions are listed by NVIDIA:
Currently there are currently no active games Bundles for NVIDIA GeForce GTX graphics cards
Technical details:
Dimensions: 270 x 111 mm (W x D)
Height: 2-Slot
GPU: NVIDIA GeForce GTX 1070
Chip: GP104
Production: 16 nm
GPU clock (Gaming Mode): 1582 MHz
Boost Clock (Gaming Mode): 1771 MHz
GPU clock (OC-mode): 1607 MHz
Boost Clock (OC-mode): 1797 MHz
Shader units (CUDA cores): 1,920
Memory Size: 8192 MB
Memory clock (Gaming Mode): 4,000 (8,000) Mhz
Memory Clock (OC-mode): 4,096 (8,192) MHz
Type: GDDR5
Memory interface: 256-bit
Memory Bandwidth: 256GB / s
Slot: PCIe x16 (PCIe / PCIe 2.x / PCIe 3.0)
Connections:
3x DisplayPort 1.4
1x HDMI 2.0b
1x DVI-D (dual link)
Power supply: 1x 8-pin PCIe
Recommended power supply capacity: min. 500 Watt
Features: DirectX 12, OpenGL 4.5, VR Ready, SLI Ready, NVIDIA Ansel, G-Sync, Game Stream, GPU Boost 3.0, HDCP 2.2, NVIDIA Surround, 3D Vision, Tessellation, PhysX, CUDA, NVENC, Adaptive Vertical Sync, VXGI, Super resolution 4K Ultra HD support, SMP, NVIDIA Shadowplay
