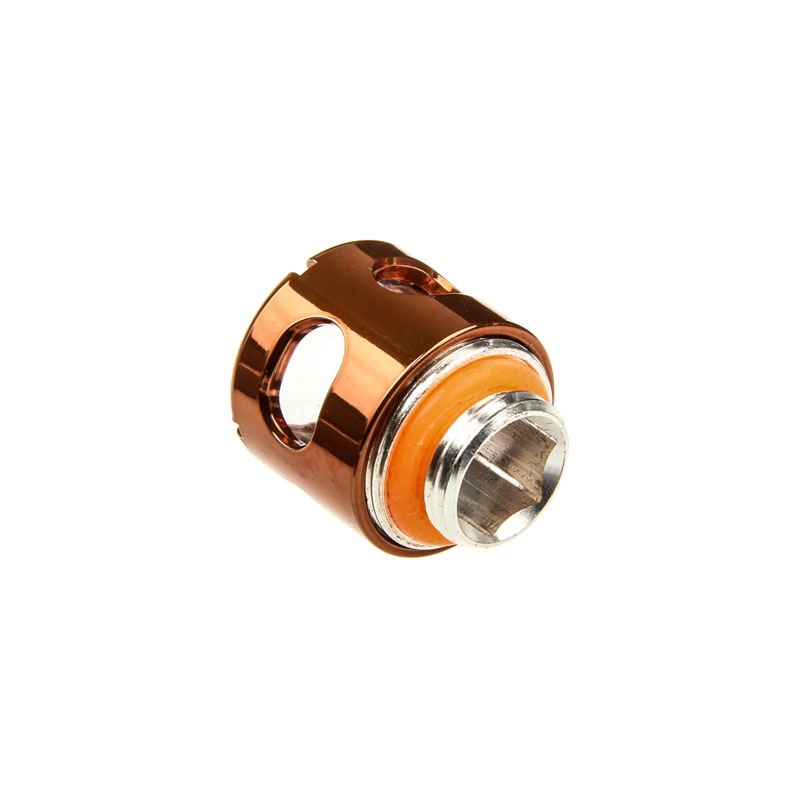

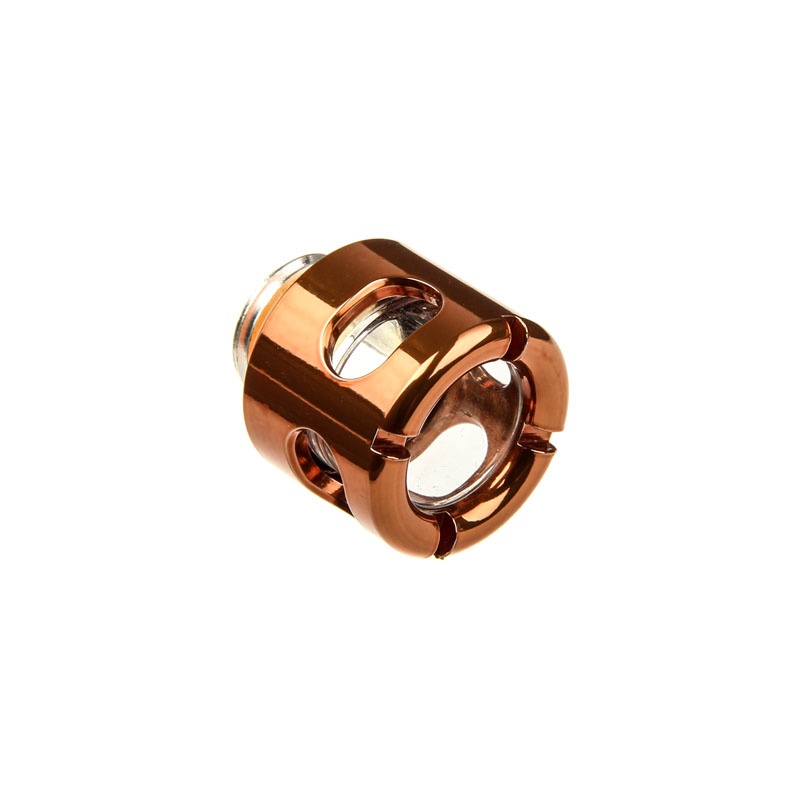

Monsoon Free Center Hardline Comp. Fitting 13/10mm - orange

This compression fitting for acrylic tubes with 13 and 10 mm outer and inner diameter works in such a way that first the orange lacquered nut (compression ring) is inserted in the tube and then the supplied Plexiglas collar (lock collar) on is glued to the last millimeter of the tubes with a suitable adhesive *.

The silver nickel plated brass base of the terminal with their G1 / 4 inch thread will now be equipped on both sides with respective sealing rings. After the glue dried and the plexiglass collar is fixedly connected to the hardline Acrylic tube, you screwed careful nut and base.

The sealing effect in monsoon Free Centre Hardline connection arises when the nut is turned to the side of the tubes inside, so forms a peripheral edge and this edge pushes the Plexiglass collar when screwing in the direction of connection or seal ring.
* Note: To use the Free Centre Hardline connections with acrylic tubes necessarily suitable adhesive is required! Monsoon provides a corresponding 8-ml vials yourself at (559 WAZU-in Dealer-range).

In the 6-packs of connections a handy tool is included, with the one hand lightly tighten the nut, on the other hand the connection can be easily screwed into a G1 / 4-inch port. This tool is not included here!

Technical Details:
Compatibility: acrylic tubes with 13/10 mm outer / inner diameter
Thread: G1 / 4 inch
Color: Orange
Material: Nickel plated brass
