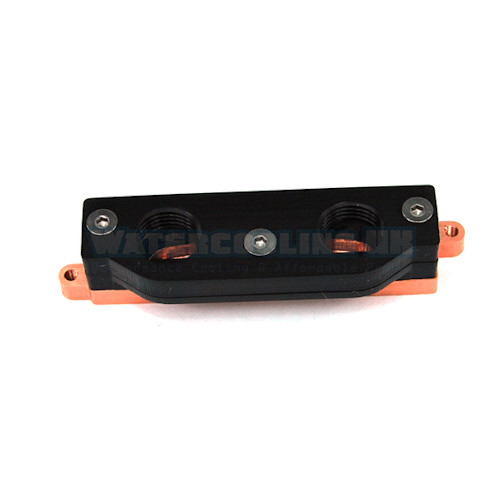

MIPSASUS P6T (7) / Del P6X58D MOSFET 2 POM

This is specifically for the following Mosfet ASUS P6T Series Main Board developed and reliably cools the mosfets above the CPU:

– ASUS P6T
– ASUS P6T Deluxe
– ASUS P6T Deluxe V2
– ASUS P6T Deluxe OC Palm
– ASUS P6T WAS Professional
– ASUS P6T6 WAS Revolution

This mainboard hang Southbridge, Northbridge and MOSFET cooler to a continuous heat pipe. This heat pipe works only with very large CPU air coolers, if it is cool but your CPU is not enough water available to cool air to the sensible heat pipe.

The Mosfet is simply integrated into the existing water system and achieves excellent cooling performance.
It is attached by screwing to the motherboard, so the cooler is a safe seat guaranteed.

For ease of fixing screws and screw Kunstoffunterlegscheiben are included.
The cooler has 1 / 4thread and can be combined with all possible connection types.

Tip: Take the best original thermal pads from the original heatpipe!

WARNING: The dismantling of the original MOSFET cooler may void your warranty, please work accordingly careful when mounting this product. For damages or consequential damages is not liable!

Technical data:

Size Shoe: 67 x 14mm
Total size without connections: 78 x 14 x 17 mm (L x W x H without connections)
Weight: ~ 100g
Bottom panel: pure copper 5mm
Intermediate plate: 6mm black POM
Upper panel: POM black 6mm
Connecting thread: 1 / 4

Our coolers are always delivered without connections, use if necessary. ! Listen!

Delivery:

1x Mosfet
1x Mounting material (2x screws, 2 nuts)
2x spacers
