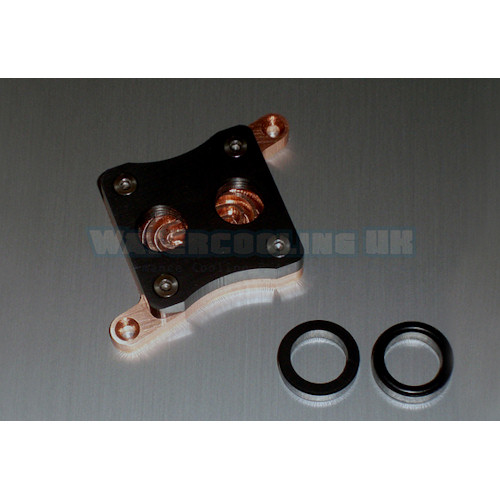

MIPS GIGABYTE EP45 UD3 Series NB POM

New look with POM cover!

With this Northbridge waterblock we offer the perfectly tailored cooling solution for the following Gigabyte Mainboards:

– GIGABYTE GA-EP45-UD3
– GIGABYTE GA-EP45-UD3P
– GIGABYTE GA-EP45-UD3R
– GIGABYTE GA-EP45T-UD3
– GIGABYTE GA-EP45T-UD3P
– GIGABYTE GA-EP45T-UD3R

The stock coolers of these Mainboards cool Southbridge, Northbridge as well as the VRM modules with one Heatpipe which is designed to work with large actively cooled CPU coolers. If you cool your CPU with water the Heatpipe does not receive the required Airflow from the CPU cooler and is not able any more to sufficiently cool the  Mainboard.

We therefore recommend to cool both Chipsets and the VRM modules with waterblocks to allows stable and safe operation and OC.
With this waterblock it is possible to cool the Northbridge safely with water!

This waterblock is the perfect expansion your you if you are already using a watercooled system.

IMPORTANT: The deinstallation of the stock chipset cooler may void your warranty, please work accordingly careful when mounting this product. We are not responsible for any damages resulting from or during  installation of this product and will not be liable.

Technical data:
Overall size without fittings: 39 x 41 x 10mm (L x W x H)
Weight: ~128g
Baseplate material: Pure copper 5mm
Cover material: Black POM 6mm
Connection thread size: 1/4
