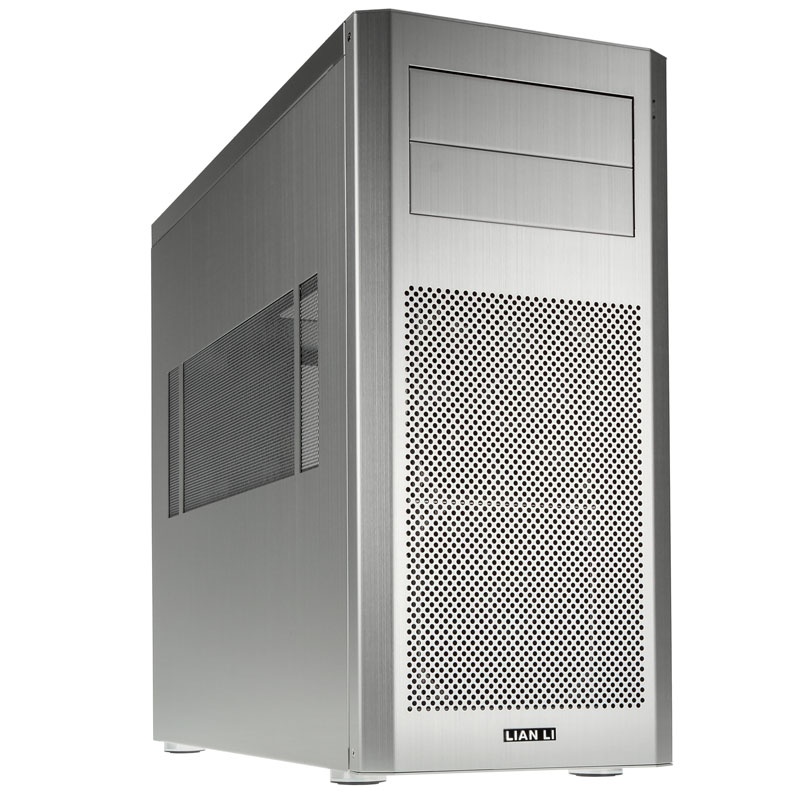

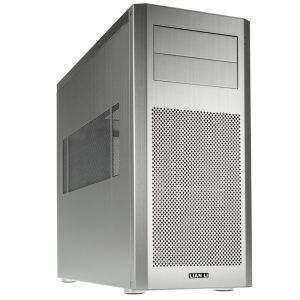

Lian Li PC-18A Midi-Tower - silver

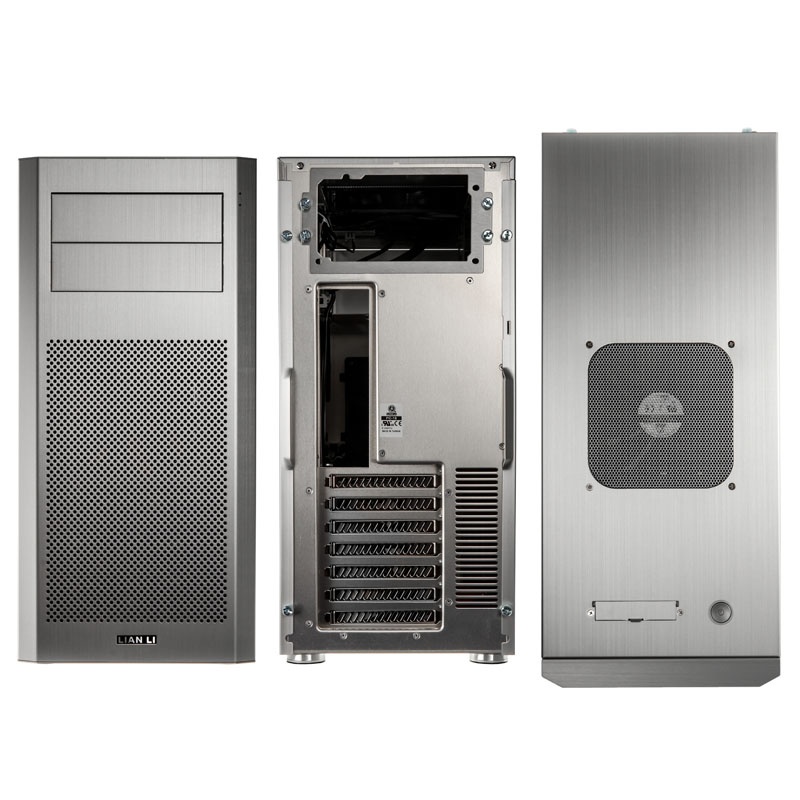

The front, the lid and the side panels look very noble by the brushed aluminum and the fan slots in the cover and the left side part are hidden behind mesh. This large mesh surfaces can be the possible number of fans of the Silver PC housing 18A guess; so a 140 mm fan pre-installed in the front two 120 mm and in the lid. A bracket on the left side of the tower may optionally contain up to three 120mm or accommodate two 140 mm fans.

Alternatively, up to 120×360 mm can be installed in the side bracket radiators, the front can accommodate a maximum of 120×240 mm radiators. For CPU Coolers stay a maximum of 160 mm square and the power adapter at the top of the back can be up to 160 mm long. Also mounted under the lid are the two external 5.25-inch drive slots.

Graphics cards can be up to 285 mm long, when the HDD cage for three 3.5-inch hard drives and one 2.5-inch drive is used. Without the hard drive cage Pixel Accelerator can find up to 410 mm length a home PC in 18th In this case, stay for two disks Mountings behind the motherboard tray, which can accommodate two 3.5-inch hard drives, or one each 3.5-inch HDD and a 2.5-inch SSD. Seven PCI-aperture in the rear also offer plenty of opportunities for accommodation of male and expansion cards.

Technical details:
    Dimensions: 210 x 452 x 490 mm (W x H x D)
    Material: Aluminum (Body), brushed aluminum (lining), plastic
    Weight: 5 kg
    Colour: Silver
    Form Factor: ATX, Micro-ATX
    Fan total possible:
    2x 120 mm (front)
    1x 140 mm (cover)
    2x 140 mm / 3x 120 mm (left side)
    Of this pre-installed:
    2x 120 mm (front)
    1x 140 mm (cover)
    Radiator-Mountings:
    1x 240/120 mm (front)
    1x 360/240/120 mm (cover)
    Drive Bays:
    2x 5.25 inches (external)
    5x 3.5 inch (internal)
    2x 2.5 inch (internal)
    PSU: ATX (optional)
    Extension slots: 7
    I / O Panel:
    2x USB 3.0 (internal connection)
    1x per Audio In / Out
    Maximum video card length: 285 mm (410 mm without HDD cage)
    Maximum CPU cooler height: 160 mm
    Maximum power supply Length: 160 mm
