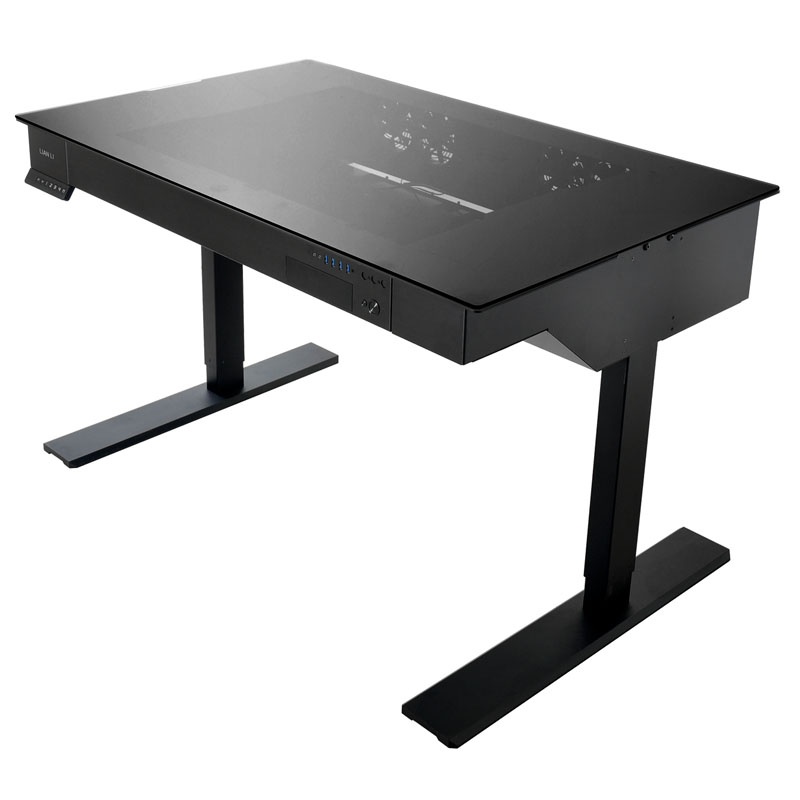

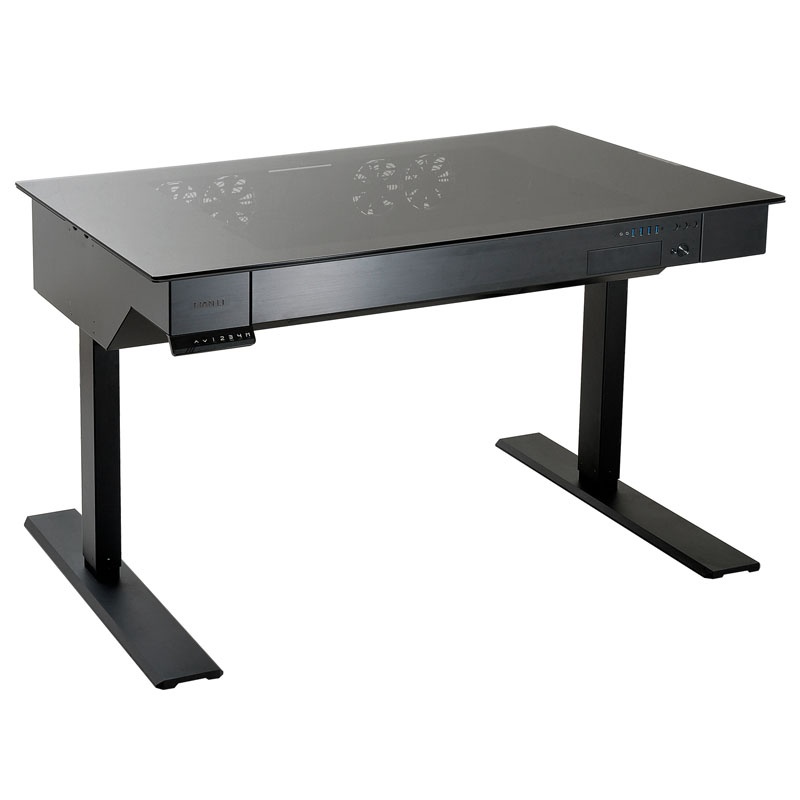

Lian Li goes to his table housings in the fourth round! The DK-04X desktop case has many new features and is adjustable in height by 39 cm. With a maximum height of 117 cm standing before working on Lian Li DK-04th Through a retreaded Design legroom is given even when sitting. A 480s and two 240-mm-radiators can be installed to cool the hardware, while graphics cards can be up to 32 cm long. At the front there are four USB 3.0 slots available and a RGB controller allows setting laid RGB LED Strips.
Lian Li goes to his table housings in the fourth round! The DK-04X desktop case has many new features and is adjustable in height by 39 cm. With a maximum height of 117 cm standing before working on Lian Li DK-04th Through a retreaded Design legroom is given even when sitting. A 480s and two 240-mm-radiators can be installed to cool the hardware, while graphics cards can be up to 32 cm long. At th...
Lian Li goes to his table housings in the fourth round! The DK-04X desktop case has many new features and is adjustable in height by 39 cm. With a maximum height of 117 cm standing before working on Lian Li DK-04th Through a retreaded Design legroom is given even when sitting. A 480s and two 240-mm-radiators can be installed to cool the hardware, while graphics cards can be up to 32 cm long. At th...
No products found
The Lian Li DK-04X desktop case in a short overview:
Height adjustable via an electric motor
Double-sided mounting of the control panel height adjustment
New table design for more legroom
Brackets for 480s and 240s radiators
Up to ten data storage
Integrated RGB LED controller
Four USB 3.0 ports on the front panel
VESA mount for Monitor Arms
Cover made of tempered glass
Precious aluminum casing
Sturdy steel frame
Height adjustable table housing for better ergonomics
The worlds first desktop case that Lian Li DK-04 can be adjusted by an electric motor in height. About a bi-mountable control panel of the table of minimum 78 cm table height to a maximum of 117 cm height can be adjusted. A digital display shows the actual height of the stage housing and up to four height settings can be saved.
The new design, the table housing at the front edge is much narrower, so legroom is given. Together with the height adjustment can now be used more effectively and more convenient to the case table. Depending on body size or position of the arms of the gaming chair of the DK-04 can be set by pressing a button at the right height.
Elegant table housing for high-end gaming hardware
The motherboard tray is removable for easy installation of the hardware. On the left side of the MB-trays the motherboard is installed, while the right side houses the power supply unit (PSU). Before power supply two 2.5 inch SSDs can be mounted. The mainboard in ATX or Micro-ATX form factor is in Airflow the pre-installed fans.
Graphics cards can be up to 32 cm long. Eight PCI-aperture on the motherboard tray are for fixing plug and expansion cards. For gaming systems with multiple graphics cards plenty of space in the table housing is available. 140 mm high CPU cooler can be housed under the glass lid.
Refined table housing for Custom Water Cooling
On the slope between the narrower front and the main part of the DK-04 four 120 mm fans are preinstalled. The bracket for mounting the fan is removable and can take as an alternative to the fans a 480 mm radiator. The two 120-fan-couple at the back can be replaced with a 240-mm radiator respectively.
Pumps and expansion tank can be installed at multiple locations. One possibility would be the incorporation before PSU, behind the front or on the left / right side. The slots on the sides are hidden by cover. Here, the available space is shared with the electric motor. If Conditions and / or pump to be mounted in front of the power supply, the two fall SSD slots away.
The narrow space in front of the slope can also absorb pump and Conditions. Here you have to be paid to the height of the components. If this option is selected, drop off the brackets for HDDs / SSDs. A total of eight disks can be mounted on four brackets. Two of the brackets are mounted one above the other. To mount the bracket rubber spacers are used.
Modular bench case with many features
In addition to the extensive hardware compatibility and the options for a custom water cooling the Lian Li DK-04X desktop case has many more features. These include dust filter under the power supply and from the front fans. The I / O panel features alongside four USB 3.0 ports, and an RGB controller via the mandatory audio jacks.
In addition to the I / O panel on the right front, a 5.25-inch drive can be installed. In the middle of the back of a mount for Monitor Arms is integrated into the desktop case. Up at the edges of the pages are screening plates, under which cable can be laid hidden. The operating element and the electric motor of the height adjustment can be optionally installed on the left or right side.
The Lian Li DK-04 is a further step in the evolution of the desktop case. Compared to the DK-03 it takes up only a system at slightly elevated dimensions. However, the limited viewing allowed by the tempered glass cover a much tidier system building. The ergonomic height adjustment is the real selling point of the DK-04 and allows you to work standing up.
Technical details:
Dimensions: 1,200 x 675-1160 x 750 mm (W x H x D)
Material: brushed aluminum (housing), tempered glass (table top), steel (frame)
Weight: 53 kg
Color: Black
Maximum load: 120 kg
Form Factor: ATX, Micro-ATX
Fan total possible:
4x 120 mm (rear)
4x 120 mm (front)
Of preinstalled:
4x 120 mm (rear)
4x 120 mm (front)
Radiator Mountings:
2x max. 240 mm (rear)
1x max. 480 mm (front)
Filter (removable): Front, Below (PSU filter)
Drive Bays:
1x 5.25 inch (external)
2x 2.5 inch (internal)
8x 3.5 / 2.5 inch (internal)
Power Supply: Standard ATX (optional)
Expansion Slots: 8
I / O panel:
1x RGB Controller
1x operating element height adjustment
4x USB 3.0 (internal connection
1x per Audio In / Out
Maximum video card length: 320 mm (without any waiver)
Maximum power supply Length: 210 mm
Maximum CPU cooler height: 140 mm
