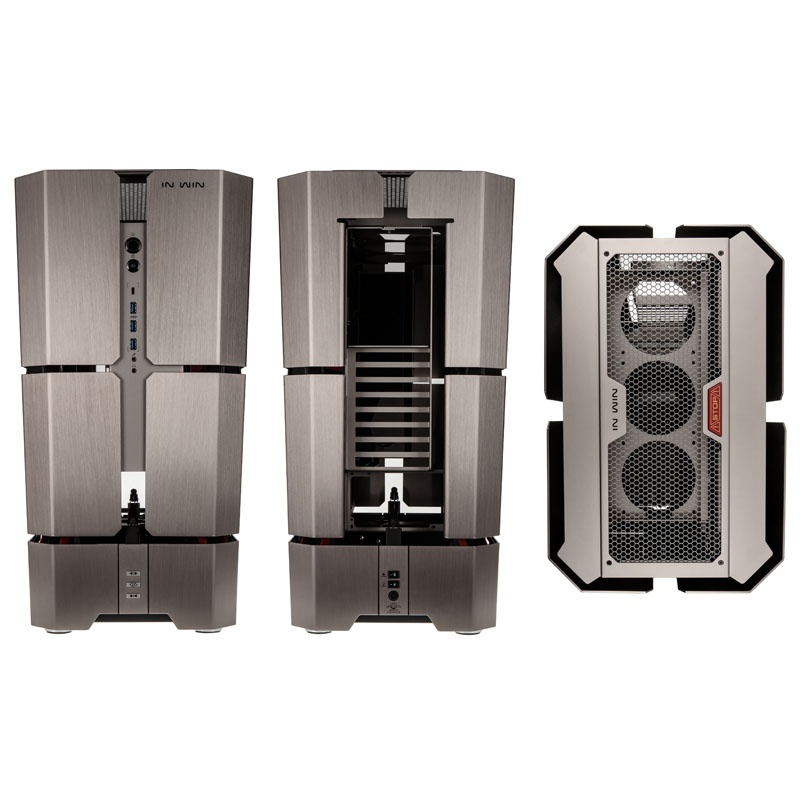

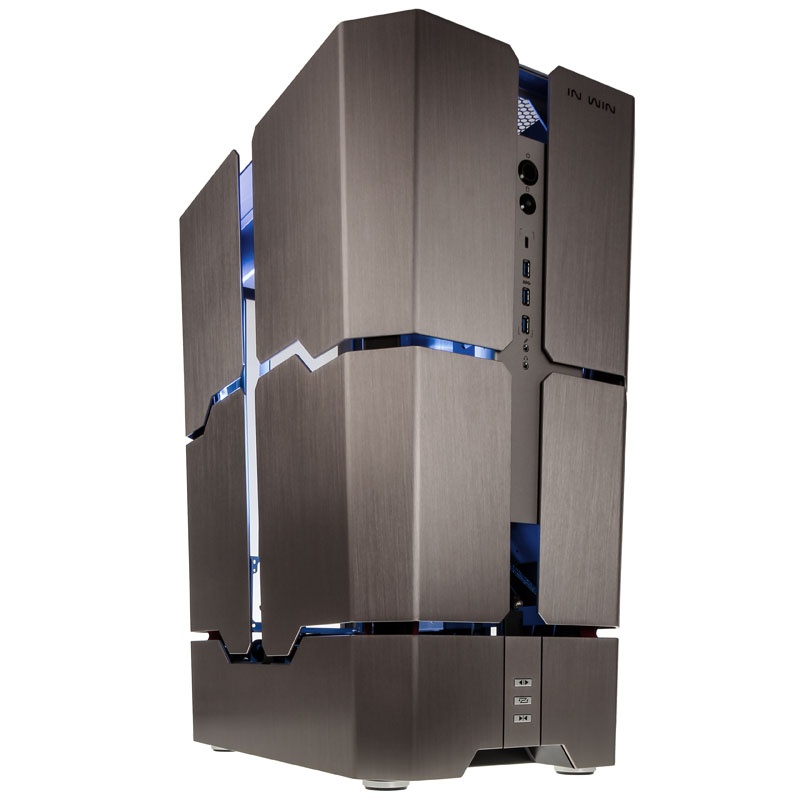

IN WIN H-Tower Big-Tower - titanium / black

Following the release of the first open housing from the D-frame, H-frame and S-frame series, the dreamlike tou with transparent mirror surface or the extravagant 904 or 901 was clear: IN WIN is the housing innovator par excellence.
Since IN WIN is known to create something new and unique regularly. These more unconventional PC cases, which repeatedly set the Taiwanese groundbreaking impulses for the entire industry, is now joined by another, fantastic copy. With the remarkable and absolutely unique IN WIN H-Tower present the case-architect of the coolest and most unusual cases that has ever seen the market and thus provide the extent of their creativity once again skillfully demonstrated.
One is transforming housing? This has not been done before!

Fans of famous blockbuster movie series will love the exceptional IN WIN H-Tower, because it transformed not only similarly impressive as the fighting for peace robots in the film, but is similar to the closed state even the mighty cube which breathes life machines. Cooler It really could not, here IN WIN has done a great job. opens by pressing a button or the Tower unfolds completely independent and is impressively presented to an open platform, which enables a particularly simple hardware installation and the installed components. The total of eight aluminum plates that represent the housing wall, move apart at the opening of the tower and allow the motherboard tray has a maximum rotation of 90 degrees. All of this is controlled by a complex mechanism hydraulic and electric motors.

The offered variant of the H-Towers comes in Titanium Black, the side walls, bases and covers in silver (Titanium) are kept and the motherboard tray in black. Inside on the side panels mounted RGB LEDs complete the unique look and allow an individual lighting and the choice of different effects. IN WIN used in preparing this absolutely unique Cases of course only the highest quality materials, therefore it consists mainly of thick, brushed aluminum, which brings the metal structure particularly impressive clarity. The base plate on the other hand is made of solid steel, is used as a hostel for the elaborate hydraulic of Towers and ensures absolutely solid state. The motherboard tray can therefore be loaded with a maximum of 10 kg.
Equipment, ventilation & connectivity IN WIN H-Tower

The interior of the H-Towers summarizes boards with E-ATX, ATX or Mini-ATX form factor and can accommodate up to eight expansion cards. While the maximum length of video card in this case is 34 cm, a CPU cooler can be about 21 cm high and apply to be the power supply about 23 cm long. For hard drives are located on the top of the tray held by two thumbscrews 2.5-inch drive bays that are extended on the opposite tray side by two other 2.5-inch and 3.5-inch drive bays.
As for the ventilation, the H-Tower provides three 120-mm fans on the top places of the motherboard tray, which could alternatively be replaced by a slim 360-mm radiator. The cover of fans is also held by thumbscrews. The cooling system is so that the air sucked through the open sides of the housing and is blown out above again.

Regarding connectivity and accessibility of the connections of the IN WIN H-Tower I / O panel front, and motherboard connectors is in the retracted state in a standardized arrangement, rear. Quite different the course looks in the extended state, the terminals and ports of the now angled motherboard trays are significantly above or slightly offset. Depending on the current angle of the trays are all connections but still easily accessible, since the eight side panels of the tower always fully extend.
The I / O panel of the tower is equipped with a modern USB 3.1 Type-C port, three USB 3.0 ports and HD audio ports located on the front at the motherboard tray and accordingly moves during the transformation. Power button with integrated light ring and reset button with integrated HDD LED are also front and complete the panel. Besides the already mentioned control elements for controlling the hydraulics, has the housing itself has two additional switch on the back that allows the built-in LED strips and the surrounding laser on and can be turned off. The connector for the dedicated 120-watt power supply can be found also at the rear lower end.

Control & security features of the unique housing
is controlled the complicated mechanism. through the integrated on the lower case front buttons or via wireless Chassis Control App from afar The case management includes three buttons, one of which is intended for the complete and automatic opening and closing. The other two buttons must be pressed to open or close permanently, however, which is also given the option of mechanics at any desired point to stop. Especially cool to showcase the hardware installed even more impressive.
With such automated product safety is a top priority, of course! So there is no risk order for housing and users during the transformation, IN WIN has installed four laser projectors, which are divided among the four sides of the tower. This project laser markings around the H-Tower, which will signal to us the extent to which the housing is open. must therefore be nothing within these lines, since this would otherwise lead to clashes. In the case of the cases located on top of the case, an additional emergency stop switch which brings the motors of the tower to a halt immediately.

For presentation purposes, it obviously makes more of an impression when the case as if by magic moves and changes color – and what could be more natural than a complete control via app. The specially designed one Bluetooth module was mounted on the back of the motherboard tray, which enables control of up to 10 meters range either by iOS app (iOS 9.2 or later) or Android app (Android 2.3.3 or later). The app is available in two versions per OS, where they differ only in design, as a representative of the ROG version and was suitably designed in the appropriate colors. In addition to controlling the basic functions can be adjusted by using the app additionally color and effect of the illumination system. Very comfortable and very cool!

Due to the unprecedented complex manufacturing processes, the production of this hydraulic marvel is limited, also the entire production volume is limited worldwide. By thus conferred exclusivity liable this show-case on the aura of a precious trophy that would harmonize perfectly as furnishing optically with a designer condo.

ATTENTION: Shipping only possible with GLS!
Due to the weight of the IN WIN H Towers send by DHL at present for logistical reasons is not possible. Although in order processing DHL is selected as the delivery method, the software is delivered by GLS! We ask for this measure to understand, because only we can make so that your new case comes fast and without complications with you.

Technical details:
Dimensions (closed): 617 x 322 x 502 mm (H x W x D)
Dimensions (open): 620 x 680 x 785 mm (H x W x D)
Material: aluminum, steel
Weight: 24.33 kg
Color: Titanium / Black
Form Factor: E-ATX, ATX, Micro-ATX
Fan (not included):
3x 120 mm (upper side)
Radiator Mounting (without fans):
1x 360mm radiator (top; optional; maximum height: 35 mm)
Drive Bays:
1x 3.5 inch (internal)
4x 2.5 inch (internal)
PSU: ATX12V, PSII & EPS (optional)
Expansion Slots: 8
Bluetooth range: 10 meters
I / O panel:
1x USB 3.1 Type-C
3x USB 3.0 Type-A
1x HD audio connectors
1x Power Button
1x reset button with HDD LED
Maximum video card length: 340 mm
Maximum video card height: 200 mm
Maximum CPU cooler height: 209 ~ 214 mm (depending on mounting position)
Maximum power supply Length: 230 mm
Power Supply: 120 Watt power supply for the housing
App Support:
iOS 9.2 or later (iPhone, iPad, iPod touch)
Android 2.3.3 or later
