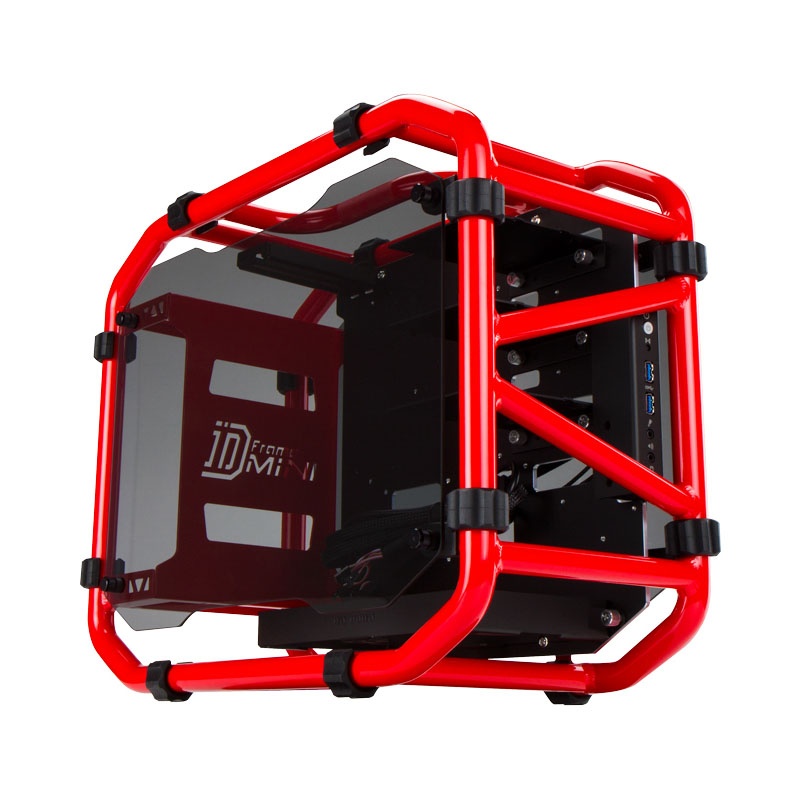

IN WIN D-Frame Mini Mini-ITX case - red

The buyer is with this half-open housing namely maximum flexibility, because In Win sent the advantages of in principle simple, but ingenious converted frame construction uses: up or down, left or right edge or along – all this there is virtually not here in unbreakable form. At most you can position the I / O panel with two USB 3.0 and audio ports view as a recommendation for alignment, for he who loves like to connect his memory stick or his headset to the PC behind or below?

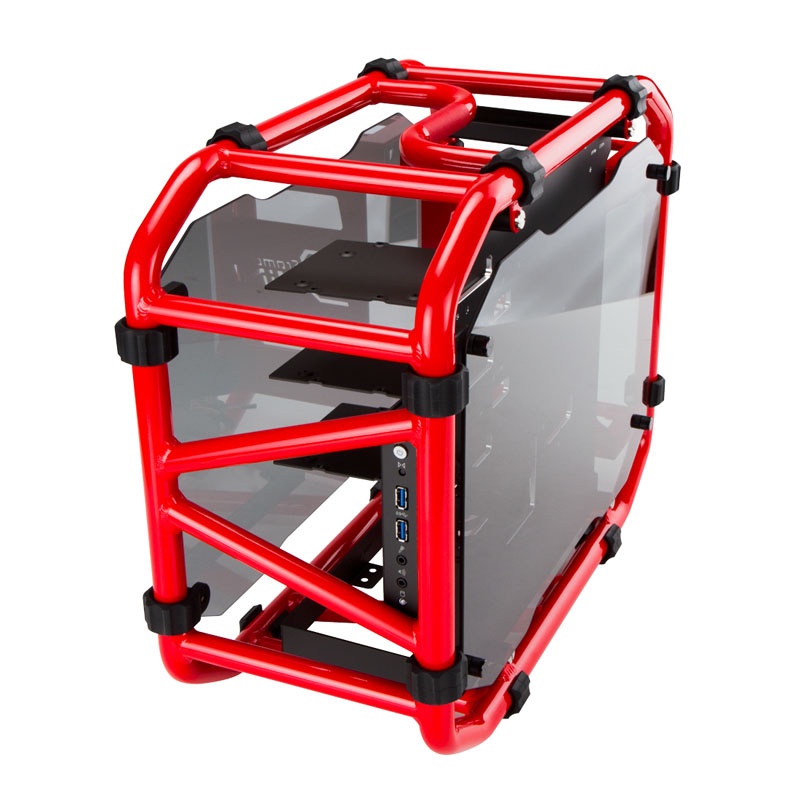

From this perspective, the D-Frame Mini only left and right, more or less closed sides, because as the large original lightly tinted glass panes are attached here can be removed at all or only incidentally quite easy for the hardware replacement. Up In Win has the pipe piece S-shaped handle designed as a kind of so-LAN-goers can take the easy mini-computer easily and safely transport. Incidentally put under a lot of craftsmanship, the red aluminum struts are once again very clean welded together.

To long to 22 cm ATX power supplies found in the back in a separate PSU section place before sitting sideways the Mini-ITX motherboard on the black tray and shows the I / O Shield up, gene open sky, there are directed according to the monitor ports of an installed graphics card. Since the In Win D-Frame Mini some similarities with Benchtables has hardly fan slots are also needed here and there. Cooling the parts can easily transfer from the ambient air, about one to about 16.5 cm high CPU cooler or a graphics card that can fail lush 34 cm long.

Only be found on the bottom of just over 5 kg light D-Frame Mini two 120-mm fan spaces, used here, optional fans can so the convection upward ascending warm air to be something more thrust by actively from the bottom of new fresh air suck. But especially attractive is the fan slot plate as radiator shroud, because here it is also possible to screw a 240-mm dual-radiator – ie: on the little space of the In Win D-Frame Mini is even an internal water cooling feasible!

Note: Pictures that built-in hardware components can be seen in the housing, for illustrative purposes only. It is only supplied the case in the color version above.

Technical Details:

Dimensions: 230 x 405 x 501 mm (W x H x D)
Material: aluminum (pipes, motherboard tray), glass (side windows)
Weight: 5.25 kg
Color: Red, Black
Form Factor: Mini-ITX
Fan total possible:
2x 120 mm (floor)
Radiator Mountings (without fans slots):
1x max. 240 mm (bottom)
Drive bays:
3x 3.5 inch (internal)
5x 2.5 inch (internal; 3x instead of 3.5 inches)
Power supply: 1x Standard ATX (optional, max 220 mm length.)
Expansion Slots: 2
I / O panel:
2x USB 3.0 (internal connection)
1x per Audio In / Out
Maximum video card length: 340 mm
Maximum CPU cooler height: 165 mm
Maximum PSU length: 220 mm
