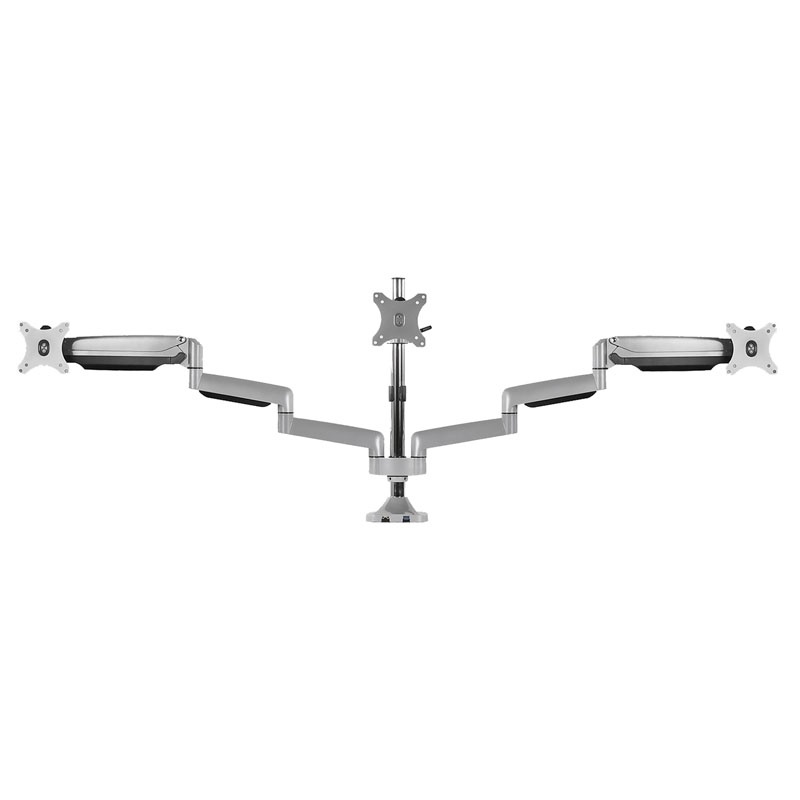

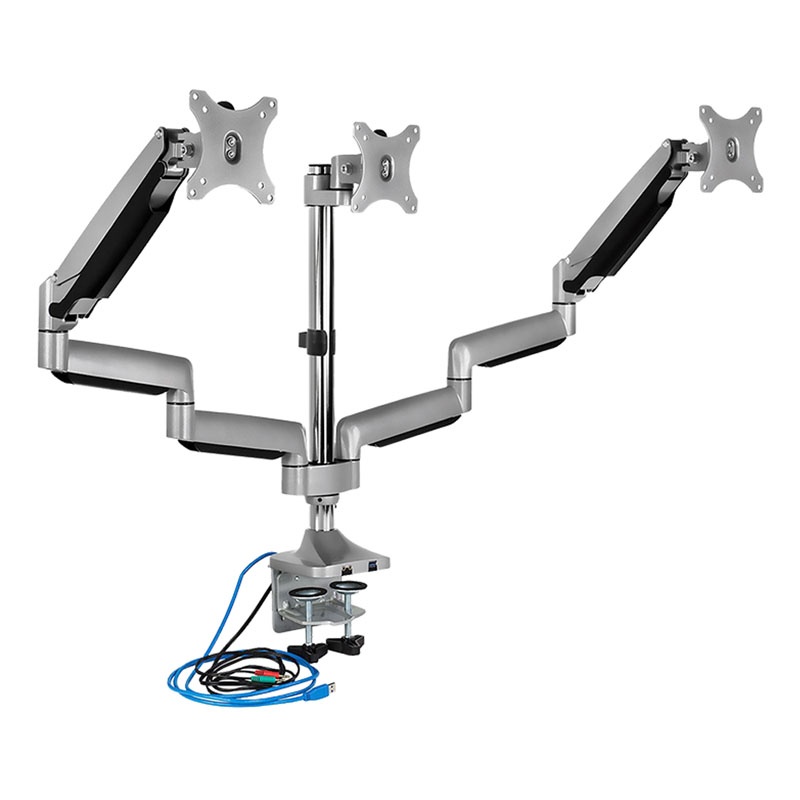

ICY BOX Triple monitor holder IB-MS505-TI

The silver construction made of steel, aluminum and plastic is used for alternative and, above all, ergonomic installation of monitors with maximum flexibility.

The features of the ICY BOX IB-MS504-T monitor holder at a glance:
– Flexible adjustable triple monitor desk mount
– For three monitors up to 32 inches (81 cm) screen size
– Maximum load of 7 kg (per arm)
– Easy height adjustment with gas spring support
– Clever cable management
– Compatible with VESA standard 100×100 and 75×75
– Easy installation thanks to removable VESA adapter
– Height adjustable / extendable / pivot / swivel / tilt
– With USB 3.0 and audio connections in the foot

The features of the ICY BOX IB-MS504-T monitor holder in detail
The ICY BOX IB-MS504-T carries three monitors, each with a screen size of up to 32 inches or smaller. Thanks to the Smart Torque Adjust torque setting, the holder can be adjusted to different monitor weights. The maximum load is seven kilograms per arm.

Monitors are compatible with the VESA-75 and VESA-100 standards. With the removable VESA bracket, the installation of the screens is very convenient. The monitor holder itself is attached to a maximum of nine centimeters thick table tops using a stable clamp. The clever cable management effectively prevents cable clutter.

The height adjustment of the monitors is made easy and quick thanks to the gas pressure spring support. Thanks to the pivot function, the full vertical rotation (360 degrees) is possible, so that text documents can be read upright, while drawings can be viewed in width. The horizontal rotation (swivel) is possible in both directions up to 90 degrees and the screens can also be swiveled up or down (tilt) – perfect ergonomics are therefore always guaranteed.

Technical details:
– Dimensions: 48 x 1510 x 590 mm (W x H x D)
– Weight: 9 kg
– Material: steel, aluminum, plastic
– Color: silver, black
– Mounting system: VESA
– VESA standard:
– 75 x 75 mm
– 100 x 100 mm
– Compatibility monitor:
– 3x max. 32 inches
– 3x max. 7 kg
– Compatibility tabletop:
– 10 – 90 mm thick
– Maximum armrest: 525 mm
– Arm height: 175 – 505 mm
– Arm tilt angle: +/- 45 degrees
– Stand pivot point (right / left arm): 270 degrees horizontal
– Stand pivot point (middle arm): 360 degrees horizontal
– Vertical rotation (pivot): yes (+/- 180 degrees)
– Horizontal rotation (swivel): yes (+/- 90 degrees)
– Tilt angle: yes (+/- 90 degrees)
– Connections:
– 1x USB 3.0 type A
– 1x 3.5 mm microphone
– 1x 3.5 mm audio
– Cable length: 160 mm
– Scope of delivery:
– IB-MS505-TI
– Allen key
– Screw set
– Quick installation guide
