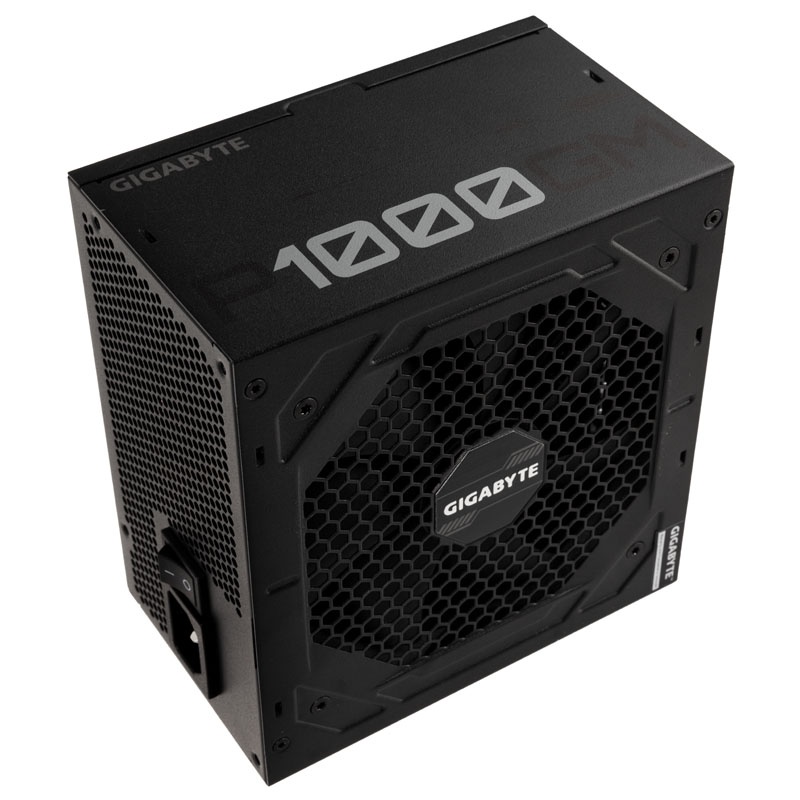

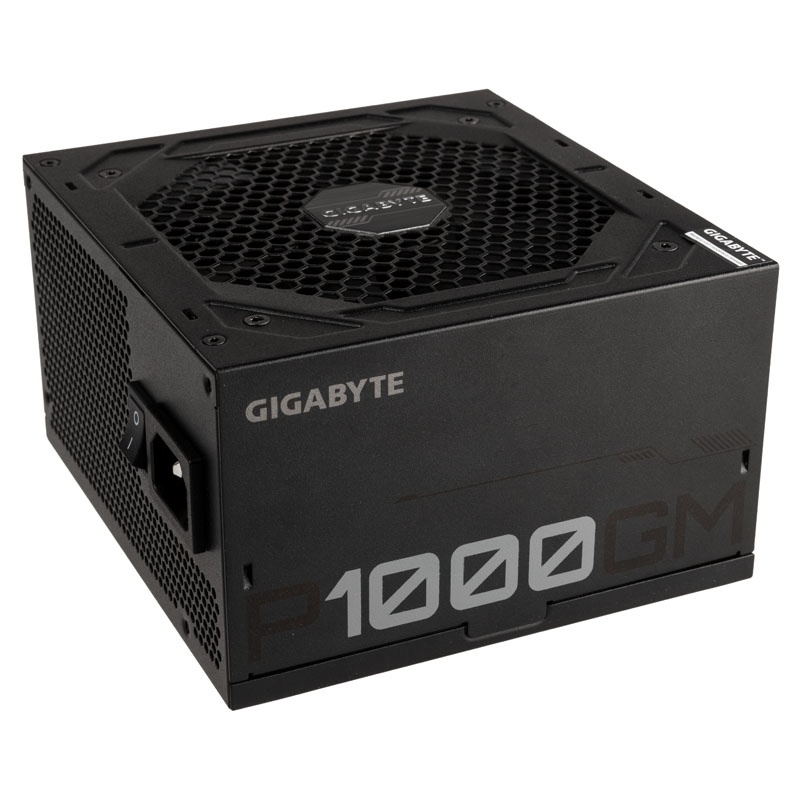

The inexpensive and extremely powerful 80 PLUS Gold power supply P1000GM from Gigabyte is ideal for budget gaming and workstation systems with high-end hardware.
The inexpensive and extremely powerful 80 PLUS Gold power supply P1000GM from Gigabyte is ideal for budget gaming and workstation systems with high-end hardware.
The inexpensive and extremely powerful 80 PLUS Gold power supply P1000GM from Gigabyte is ideal for budget gaming and workstation systems with high-end hardware.
No products found
It is characterized by its compact design and high performance. The perfectly coordinated electronics are cooled by a powerful 120 mm fan, the volume of which is regulated by Gigabytes intelligent fan control.
The Gigabyte P1000GM 80 PLUS Gold power supply at a glance:
1,000 watt ATX power supply unit with a powerful 83.3 A single rail
With 80 PLUS gold certificate
Automatically controlled 120 mm fan
Six 6 + 2-pin PCIe connectors for graphics cards
Fully modular with black cables
Gigabyte P1000GM: 80 PLUS Gold efficiency and strong 83.3 A single rail
The Gigabyte P1000GM is a high-performance power supply unit and, with its 1,000 watts of total output, also supplies gaming PCs and workstations with high-end hardware with plenty of power. The powerful 12 volt rail delivers a whopping 83.3 amps. The power supply is certified with 80 PLUS Gold. Gigabyte relies on high-quality Japanese capacitors.
In addition to a 24-pin and two 4 + 4-pin cables, the Gigabyte P1000GM provides six 6 + 2-pin PCIe connectors as well as eight SATA, three 4-pin Molex and one floppy connector . With this variety of connections, high-performance systems can be implemented. With its minimalist design and compact standard ATX format, the power supply fits in with any case.
The built-in 120 millimeter fan with hydraulic bearing (HYB) quietly and reliably supplies the power supply with fresh air. Gigabytes intelligent fan control ensures that the fan speed is automatically regulated depending on the load on the power supply unit. This is particularly noticeable in the noise development and the maximum possible cooling performance, depending on how much the power supply is currently being used.
Technical details:
– Dimensions: 150 x 86 x 140 mm (W x H x D)
– Fan: 120 mm (intelligent fan control)
– Efficiency: max. 92% @ 50% load, 80 PLUS Gold certificate
– Active PFC
– Form factor: ATX12V
– Power: 1,000 W.
– + 3.3V: 25 A
– + 5V: 25 A
– + 3.3V & + 5V: 125 W.
-+ 12V: 83.3 A / 999.6 W.
– -12V: 0.3 A / 3.6 W.
– + 5Vsb: 3 A / 15 W.
– Connections:
– 1x 20 + 4-pin (610 mm)
– 2x 4 + 4-pin (2x 600 mm)
– 6x 6 + 2-pin PCIe (3x 600 + 150 mm)
– 8x SATA (2x 600 + 150 + 150 + 150 mm)
– 3x 4-pole Molex + 1x floppy (500 + 120 + 120 + 120 mm)
– Protection: OVP, UVP OPP, SCP, OCP, OTP
– Manufacturers guarantee: 5 years
