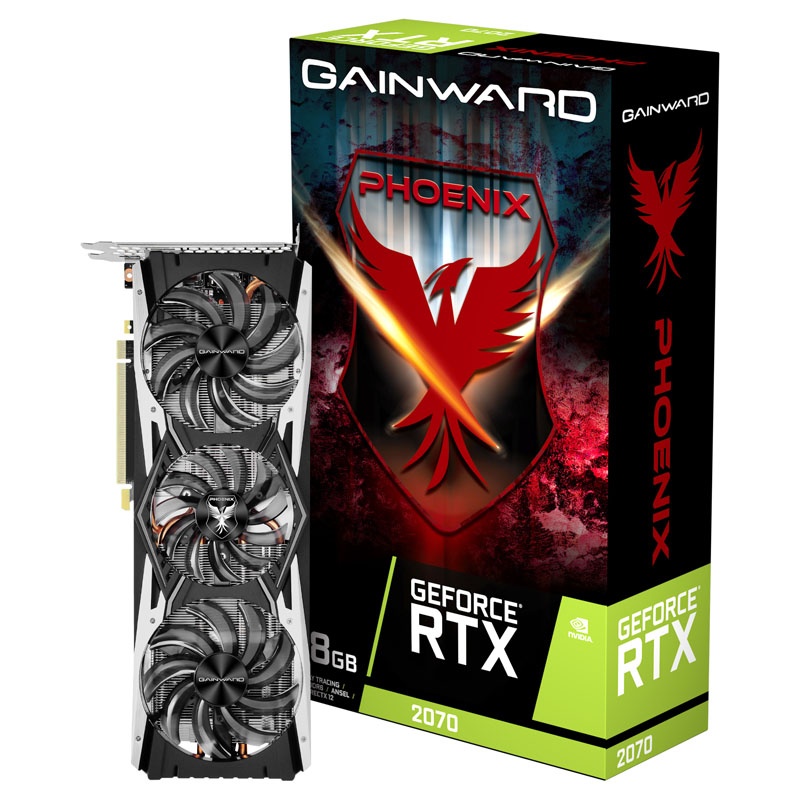

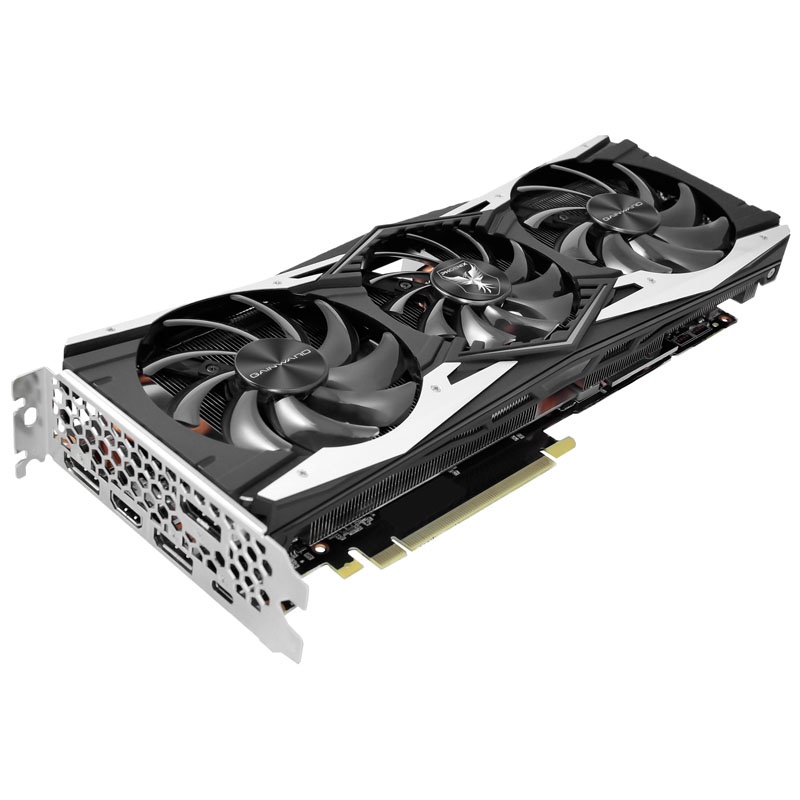

Gainward GeForce RTX 2070 Phoenix, 8192 MB GDDR6

The graphics chip used is a TU106 with 2,304 CUDA cores on the GeForce RTX 2070. The chip is manufactured using the 12 nm FinFET process and is based on the Turing GPU architecture. The memory uses GDDR6 VRAM with a capacity of 8 GB, while ray tracing and tensor cores allow fantastic light and shadow effects.

The features of the Gainward GeForce RTX 2070 Phoenix at a glance
– Triple Fan cooler design
– Fast base clock of the GPU: 1,410 MHz
– High boost rate of the GPU: 1,650 MHz
– High-end graphics memory: 8 GB GDDR6
– Very high memory clock: 7,000 MHz (effectively 14,000 MHz)
– Large memory interface: 256 bits
– High memory bandwidth: 448 GB / s
– Strong processing power: 2,304 CUDA cores (shaders)
– Low TDP: 185 watts
– Additional PCIe power connection: 1x 8 pin, 1x 6 pin
– Video outputs: 3x DP 1.4, 1x HDMI 2.0b, 1x USB Type C (VirtualLink)
– Cooler design and clock speeds of the Gainward GeForce RTX 2070 Phoenix

The graphics chip of the Gainward GeForce RTX 2070 Phoenix clocks from the factory with a base clock of 1,410 MHz and a preset boost clock of 1,650 MHz. The latter is automatically activated via GPU boost if the graphics chip requires more power. The GDDR6 video memory clocks with very fast 7,000 MHz (effectively 14,000 MHz), which is almost 75 percent faster than the direct predecessor. The capacity of 8 GB VRAM allows gambling with 4K resolution or in Virtual Reality. As a cooler, a triple-fan design is used.
Graphics card exchange without waiting at Caseking!
During the warranty period of 2 years from the receipt of the goods, Caseking will legitimately exchange end-user complaint graphics cards – ie those with a defect confirmed by us – of all brands mentioned below for new goods (if in stock). A submission of the defective goods to the manufacturer and associated longer waiting times are thus completely eliminated! If the graphics card to be replaced is no longer in stock or deliverable, we will issue a credit note. Afterwards an alternative graphic card from our assortment can be chosen freely. Any additional charges can simply be paid and any remaining amounts will be refunded by us.

How do I handle a defect in my graphics card? -> Immediate graphic card replacement (click here)

Brands: ASUS, Club 3D, EVGA, Gigabyte, INNO3D, Palit, PNY, Powercolor, Sapphire, VTX3D, XFX, ZOTAC & King Mod
Free games for NVIDIA GeForce GTX gaming graphics cards:
For each game video card purchased at Caseking, we will ship the corresponding coupon codes of the current game bundles by e-mail 1-2 days after receipt of the goods. For non-qualified products no coupon code will be sent. Only end customers receive free donations. All promotions are limited and valid only while stocks last or until the offer is closed. The legal process is excluded. Here are all currently active coupon promotions from NVIDIA:

NVIDIA GeForce GTX 1070 (Ti) & 1060: Monster Hunter: World. More info.

Technical details:
– Dimensions: 292 x 112 mm (W x H x D)
– Height: 2-slot
– GPU: GeForce GTX 2070
– Chip: TU106
– Production: 12 nm
– GPU clock: 1,410 MHz
– Boost Clock: 1,650 MHz
– CUDA-Cores (shaders): 2.304
– RT cores: 36
– Tensor cores: 288
– Memory Size: 8,192 MB
– Memory clock: 7,000 (14,000) MHz
– Type: GDDR6
– Memory connection: 256 bits
– Memory bandwidth: 448 GB / s
– Slot: PCIe x16 (PCIe / PCIe 2.x / PCIe 3.0)

Connections:
– 3x DisplayPort 1.4
– 1x HDMI 2.0b
– 1x USB Type C (VirtualLink)
– Power supply: 1x 8-pin PCIe, 1x 6-pin PCIe
– Recommended power supply performance: min. 550 watts

Features: DirectX 12, OpenGL 4.5, Vulkan API, VR Ready, NVIDIA Ansel, G-Sync HDR, NVIDIA GPU Boost 3.0, HDCP 2.2, NVIDIA Surround, 3D Vision, Tessellation, PhysX, CUDA, NVENC, Adaptive Vertical Sync, VXGI, Super Resolution, 4K Ultra HD Support, SMP, NVIDIA Shadow Play, Real-Time Ray Tracing
