Pascal graphics cards series The performance segment is well staffed with the GeForce GTX 1070th The Pascal-GPU architecture, combined with the 16-nm FinFET manufacturing process, resulting in an impressive increase in performance compared to the Maxwell graphics cards. As nomenclatural successor to the GeForce GTX 970, the GTX can measure in 1070 after the first benchmark results with the GeForce GTX Titan X!
Pascal graphics cards series The performance segment is well staffed with the GeForce GTX 1070th The Pascal-GPU architecture, combined with the 16-nm FinFET manufacturing process, resulting in an impressive increase in performance compared to the Maxwell graphics cards. As nomenclatural successor to the GeForce GTX 970, the GTX can measure in 1070 after the first benchmark results with the GeForce...
Pascal graphics cards series The performance segment is well staffed with the GeForce GTX 1070th The Pascal-GPU architecture, combined with the 16-nm FinFET manufacturing process, resulting in an impressive increase in performance compared to the Maxwell graphics cards. As nomenclatural successor to the GeForce GTX 970, the GTX can measure in 1070 after the first benchmark results with the GeForce...
No products found

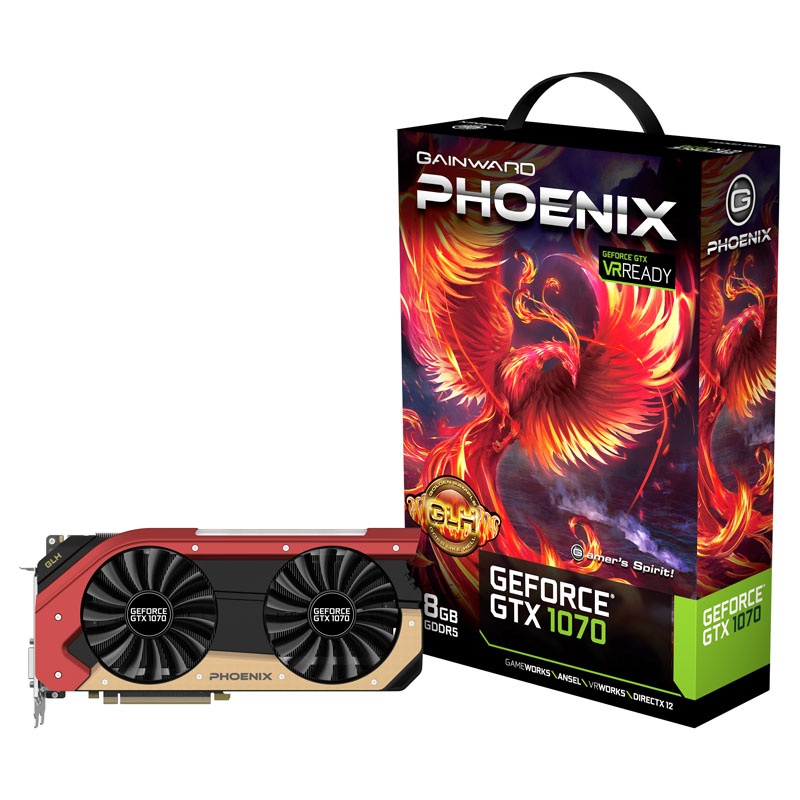

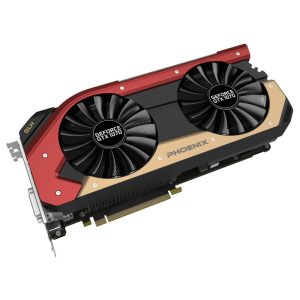

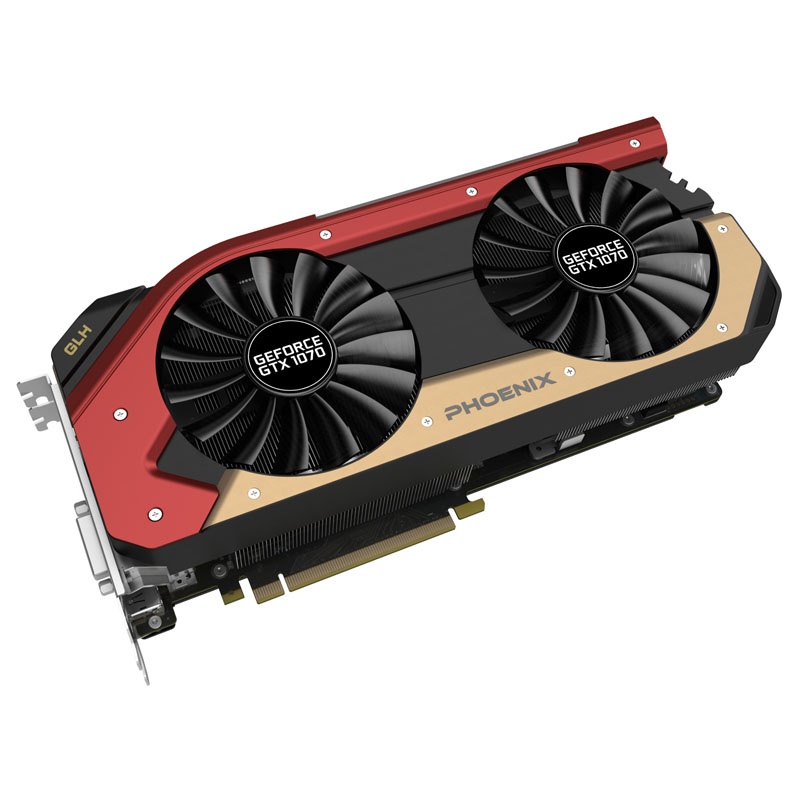

The features of Gainward GeForce GTX 1070 Phoenix GLH Overview
Dual-Fan Phoenix cooler with LED lighting
Base clock of the GPU: 1.670 MHz
Boost clock of the GPU: 1873 MHz
Fast Memory clock: 4,250 MHz (8,500 MHz effective)
As an additional power connector: 1x 8 pin
Dual Fan Phoenix cooler with LED Lighting & plant-OC
The Gainward GeForce GTX 1070 Phoenix GLH (Goes like Hell) has a base clock of 1,670 MHz. With GPU Boost 3.0 this can be increased if necessary to a boost clock of 1,873 MHz. The memory clock is 4,250 MHz (8,500 MHz effective). For the cooling of the graphics card, the Dual Fan Phoenix cooler design is used.
This NVIDIA GPU Boost 3.0 can access as well as possible, it is important that the electronics of the card stays as cool as possible. Therefore Gainward relies on its own Phoenix -Kühlerdesign with several heatpipes, a large aluminum radiator and two large axial fans that ensure you always have enough fresh air is available to cool the GPU, voltage converters, RAM and Co.. Below 60 degrees GPU temperature they remain even completely stand ( 0 db tech), so that the card in Idle is passive and therefore completely silent cooled.
New to the Phoenix cooler design is the integrated LED lighting. The black-red-golden radiator cover now has a LED light whose colors change in accordance with the utilization of the graphics card.
GeForce GTX 1070: gaming power for VR and 4K!
The 8 GB of video memory, the GeForce GTX 1070 are connected via a 256-bit memory interface to the GPU. The GP104 graphics chip GTX 1070 has 1,920 CUDA cores and the computing power of the GTX 1070 is 6.5 TFLOPS. This is the GeForce GTX 1070 in terms of computing power slightly above the GeForce GTX Titan X, which the Maxwell GPU series flagship!
The GTX-1070-series graphics cards support DirectX 12 and the latest gaming technologies, including NVIDIA GameWorks, Warp, stereo X, VR-Audio, PhysX and SMP (Simultaneous Multi-Projection). The latter is supported in version 4.0 and provides mainly for VR, Curved displays and multi-display setups great benefits.
Especially while gambling in the Virtual Reality (VR) benefit gamers of the new technology. With SMP 4.0 Total 16 viewports and two viewports can be rendered in a single pass. By utilizing multiple viewports the rendered image also comes out with a lower number of calculated pixels, which increases the energy in VR mode improved enormously.
The GeForce GTX 1070 has an image transfer of 4K / Ultra HD resolutions at 60 Hertz three DisplayPort 1.4 and HDMI 2.0b port, the latter has HDCP 2.2, and thus send encrypted signals and receive ( 4K Blu-Ray / 4K streams). Alternatively, has the GTX 1070 a DVI-D (Dual Link) output.
In order to exploit the full potential of the card in the future, new drivers from NVIDIA or Gainward should be downloaded and installed at regular intervals.
Graphics Card Exchange without waiting for Caseking!
During the warranty period of 2 years from receipt of the goods are at Caseking of retail entitled complaining graphics cards – that is, those with a confirmed defect of us – all brands listed below directly exchanged against virgin (if in stock). A submission of the defective goods to the manufacturer and related longer waiting times thus completely eliminated! If the graphics card to be replaced is no longer in stock or available, so a credit issued by us. Then can thus be freely selected from our range an alternative graphics card. Here incurred extras are easily been settled and any resulting excess payment shall be refunded by us.
What do I do with failures of my graphics card? -> Graphics Card immediate replacement if defective
Brands: ASUS, Club 3D, EVGA, Gigabyte, Inno3D, Palit, PNY, PowerColor, Sapphire, VTX3D, XFX, ZOTAC & King Mod
Free games for NVIDIA GeForce GTX gaming graphics cards:
Each Purchased at Caseking games graphics card will be the associated Coupon codes in the latest game bundles. Not eligible products are not accompanied by vouchers. All promotions are limited and only valid while stocks last or will be finished by the offer. The decision is final. Subsequently all currently active coupon actions are listed by NVIDIA:
Currently there are currently no active games Bundles for NVIDIA GeForce GTX graphics cards
Technical details:
Dimensions: 285 x 133 mm (W x D)
Height: 2.5 slot
GPU: NVIDIA GeForce GTX 1070
Chip: GP104
Production: 16 nm
GPU clock: 1.670 MHz
Boost Clock: 1873 MHz
Shader units (CUDA cores): 1,920
Memory Size: 8192 MB
Memory clock: 4,250 (8,500) MHz
Type: GDDR5
Memory interface: 256-bit
Memory Bandwidth: 256GB / s
Slot: PCIe x16 (PCIe / PCIe 2.x / PCIe 3.0)
Connections:
3x DisplayPort 1.4
1x HDMI 2.0b
1x DVI-D (dual link)
Power supply: 1x 8-pin PCIe
Recommended power supply capacity: min. 500 Watt
Features: DirectX 12, OpenGL 4.5, VR Ready, SLI Ready, NVIDIA Ansel, G-Sync, Game Stream, GPU Boost 3.0, HDCP 2.2, NVIDIA Surround, 3D Vision, Tessellation, PhysX, CUDA, NVENC, Adaptive Vertical Sync, VXGI, Super resolution 4K Ultra HD support, SMP, NVIDIA Shadowplay
