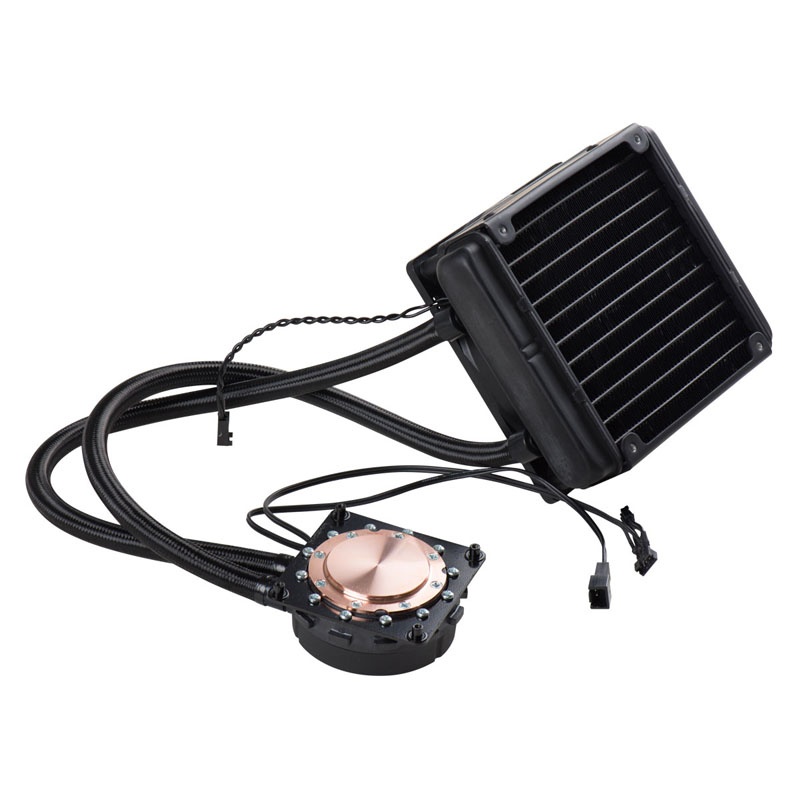

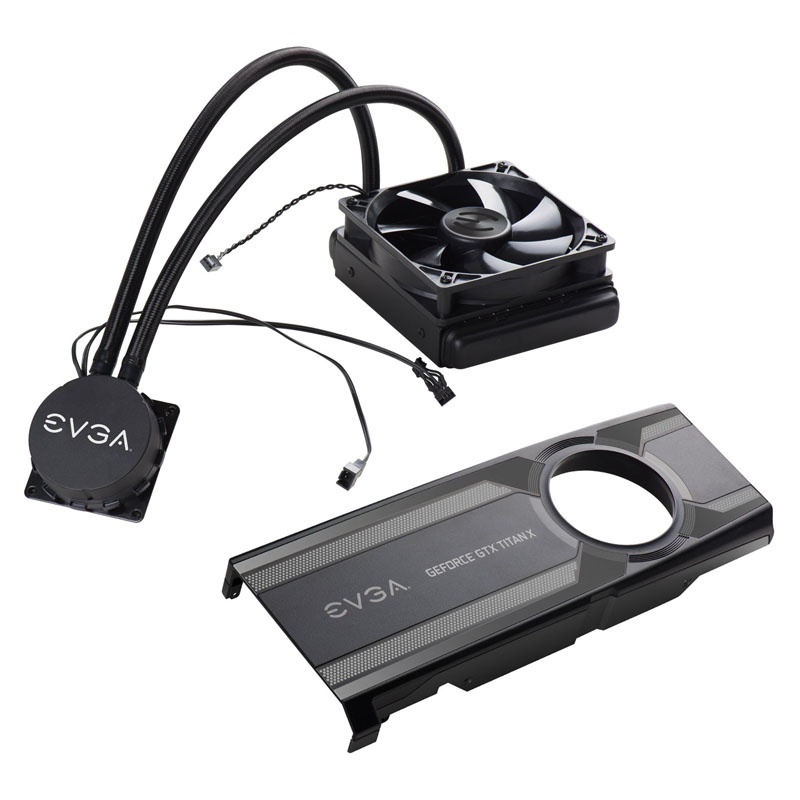

With ?? Hybrid ?? – special versions of GeForce graphics cards EVGA presented for some time a very strong alternative cooler for many NVIDIA graphics card types that convinces both in terms of looks as well as his good and especially quiet cooling results. Hybrid means here that the main heat source – the GPU – is cooled with water, the other components – graphics memory and power supply – however, with air, because here does not arise so much waste heat. This allows for a similarly good cooling capacity as a full cover cooler including associated water cooling at a fraction of the price, and this solution is also much easier to integrate them into a PC system.
The GPU cooler with integrated pump is now so flat that the card despite water cooling only two slots are occupied. Otherwise, the cooler is the reference cooler is not dissimilar – at a very slim, smart housing continues sits a large radial fan that sits in the back of the card and conveyed the warm air directly through the slot bracket. In order for this cooling option is also ideal for multi-GPU setups, a corresponding number provided for mounting the radiator.
The metallic black plate, called the baseplate, on top of the graphics card PCB is taken from the original cooler. She takes over a large area on the heat of the GDDR5 RAM chips, the voltage regulation and the MOSFETs and distributes them effectively in order to leave no heat spots arise. The fan is also adopted and supplemented with an adapter cable to which the fan is connected to the radiator. Both fans are thus governed by the load and temperature dependent fan control the graphics card, thus allowing both a strong cooling capacity under load and a very quiet operation at idle and at low load.
Caution: The EVGA hybrid cooler is only with graphics cards in reference design of the type NVIDIA GeForce GTX Titan X with 12 GB and GTX 980 Ti with 6GB of graphics memory compatibility!
Technical Details:
Radiator size: 120 mm (152.5 x 27.5 x 121)
Hose length: 400 mm
Fan: 1 x 120 mm (max 37.7 dB (A), 2435 U / min, PWM).
Compatibility:
NVIDIA GeForce GTX Titan X (Maxwell GM200, 12,288 MB, reference design)
NVIDIA GeForce GTX 980 Ti (Maxwell GM200, 6,144 MB, reference design)
