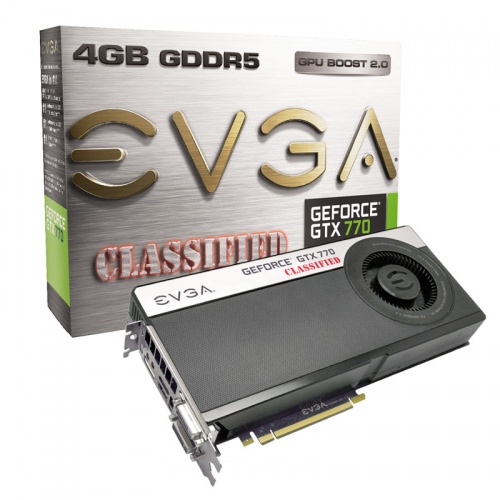

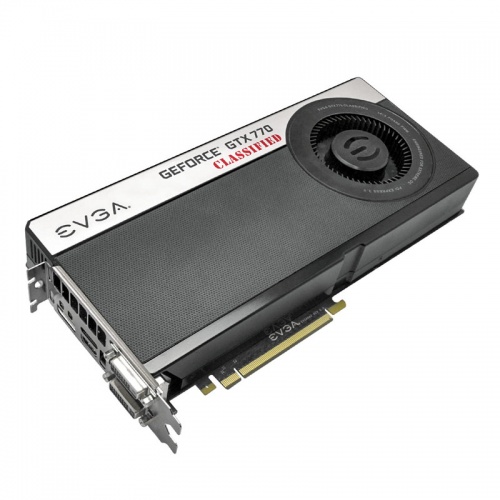

EVGA GeForce GTX 770 Classified, 4096 MB GDDR5, DP, HDMI, DVI

The Kepler architecture, NVIDIA introduced with the launch of the GTX 600 series, was and is a masterpiece – Kepler GPU graphics cards are more energy efficient, very powerful and equipped with modern features. Reason enough to manufactured in 28nm Kepler chips to remain faithful to the California graphics card developers, even with the new GeForce GTX 700 generation.

Here, the power structure is clearly lifted upwards, as the GTX 780 seeks the super card GTX titanium after, while the GeForce offered here from EVGA GTX 770 Classified 4GB with factory overclocking even about 10 percent faster rendering than the former single-GPU flagship GTX 680th The main reason for the leap in performance, higher clock speeds of the GK104 chip and the GDDR5 memory.

So the GPU is working on this overclocked GTX 770 with fast-paced 1.150 MHz (the GTX 680 there were just over 1,000 MHz) and the improved GPU Boost in version 2.0 allows the clock to up to an incredible 1,202 MHz high speed when TDP (230 Allow W) and especially the temperatures, as is often the case. The power supply on the board via two 8-pin PCIe connectors.

Even more impressive is how the 4,096 MB of graphics memory of the EVGA GTX 770 Classified, communicating through a 256-bit bus with the Kepler chip: The RAM runs namely effective 7 Gbps (7.010 MHz) and faster than any other series graphics card – which gives a whopping memory bandwidth of over 220 GB / s, enough so to be able to play demanding games in high resolution.

In addition to extreme gaming performance with the NVIDIA GeForce GTX 770 excited by further measures, which were presented exclusively with Kepler. Adaptive Vertical Sync automatically turns off the vertical synchronization in complex scenes, where the performance of the graphics card temporarily not sufficient to operate the monitor refresh rate.

NVIDIA also provides with FXAA and TXAA two modern image enhancement modes. Other features include support for PCI Express 3.0 and DirectX 11 In addition, with NVENC is a dedicated video engine for fast and economical H.264 transcoding available. Of course, old friends do not like missing the chance to GPU PhysX, SLI and 3D Vision Surround.

With the GTX 700-series NVIDIA also introduces new driver. From now on it is called experience with GeForce GEFORCE EXPERIENCE! The ingenious tool is now integrated into the graphics driver, enabling both potty Driver updates also perfect settings for each computer in each game! To the huge database is queried in NVIDIAs cloud data center in various configurations, so they can click of the mouse to make the optimal settings.

In order to realize the full potential of the card in the future, new drivers from NVIDIA or EVGA should be downloaded and installed at regular intervals.

Technical details:

    Dimensions: 266.7 x 111.15 mm (W x H)
    Height: 2 slot
    GPU: NVIDIA GeForce GTX 770
    Type: Kepler GK104
    Production: 28 nm
    GPU clock: 1,150 MHz
    Boost Clock: 1202 MHz
    Texture units: 128
    ROP units: 32
    Unified shaders (CUDA cores): 1,536
    Shader clock: 1150 MHz
    Memory Size: 4096 MB
    Memory Clock: 3505 (7010) MHz
    Type: GDDR5
    Memory interface: 256-bit
    Slot PCIe x16 (PCI / PCIe 2.x/PCIe 3.0)
    Connections:
    1x DisplayPort 1.2
    1x HDMI 1.4
    1x DVI-I (dual link)
    1x DVI-D (dual link)
    Power supply: 2x 8-pin PCIe
    Recommended power supply-output: min. 600 watts (42 amps on the 12 volt rail)
    Features: DirectX 11, Shader Model 5.0, DirectCompute 5.0, OpenGL 4.3, OpenCL, 3D Vision Surround, Tessellation, PhysX, CUDA, NVENC, SMX, GPU Boost 2.0, Adaptive Vertical Sync, SLI
    Compatibility (OS): Windows XP, Vista, 7, 8
