The GeForce GTX 1060s GP106 graphics chip uses the 16nm FinFET process and is based on NVIDIAs Pascal GPU architecture. The GeForce GTX 1060 can shine better than its predecessor, the Maxwell generation, with improved efficiency and impressive performance. The GeForce GTX 1060 is the mid-range model of the GTX-10 graphics card series and is available in versions with 3 or 6 GB VRAM. The GeForce GTX 1060 is VR Ready and has an HDMI 2.0b port.
The GeForce GTX 1060s GP106 graphics chip uses the 16nm FinFET process and is based on NVIDIAs Pascal GPU architecture. The GeForce GTX 1060 can shine better than its predecessor, the Maxwell generation, with improved efficiency and impressive performance. The GeForce GTX 1060 is the mid-range model of the GTX-10 graphics card series and is available in versions with 3 or 6 GB VRAM. The GeForce GT...
The GeForce GTX 1060s GP106 graphics chip uses the 16nm FinFET process and is based on NVIDIAs Pascal GPU architecture. The GeForce GTX 1060 can shine better than its predecessor, the Maxwell generation, with improved efficiency and impressive performance. The GeForce GTX 1060 is the mid-range model of the GTX-10 graphics card series and is available in versions with 3 or 6 GB VRAM. The GeForce GT...
No products found

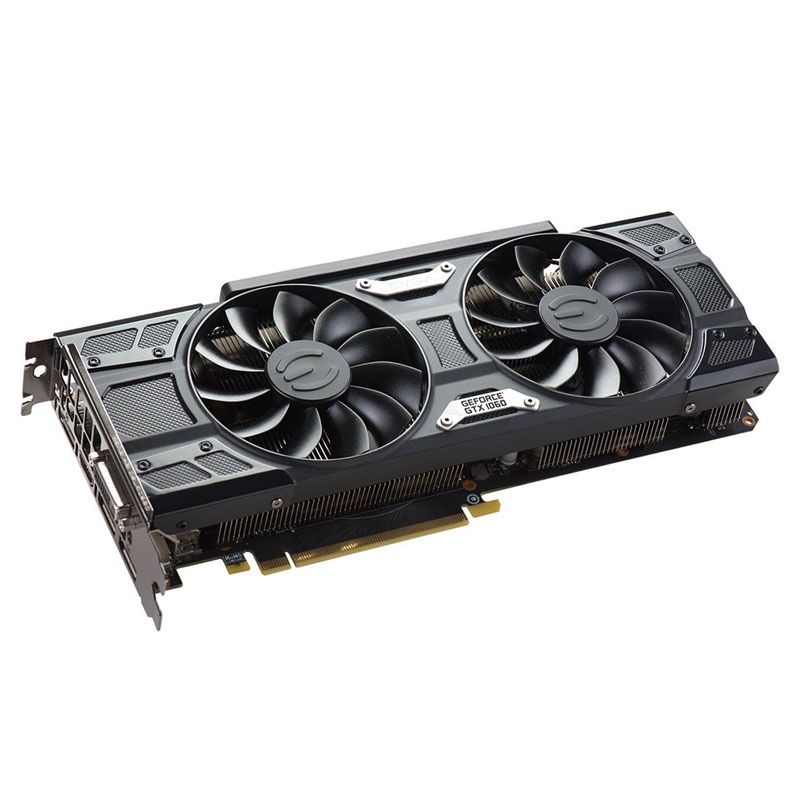

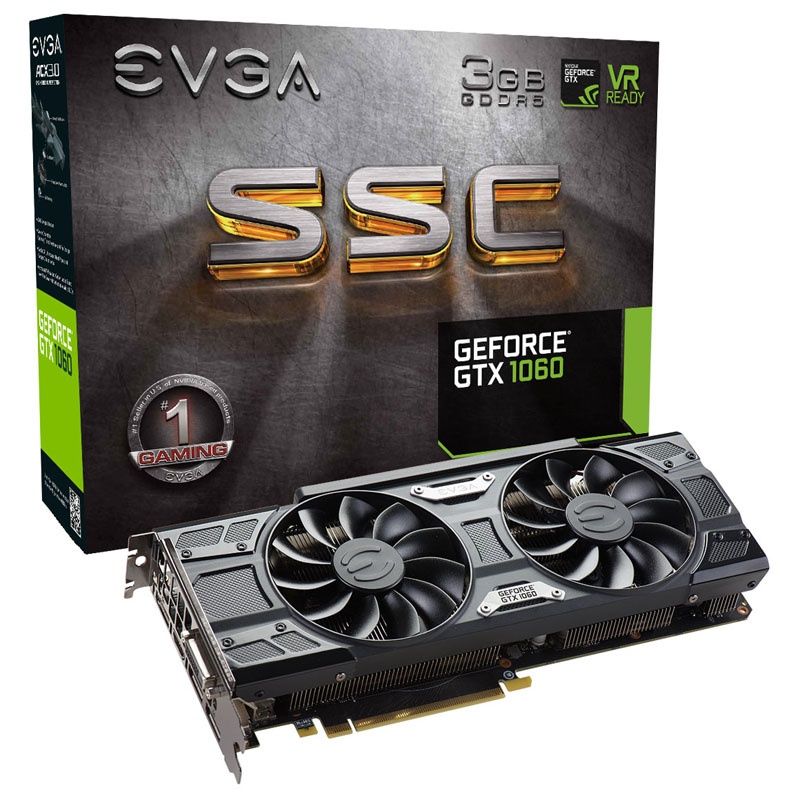

The features of the EVGA GeForce GTX 1060 SSC Gaming ACX 3.0 at a glance
ACX 3.0 radiator design with white LED lighting
High base clock of the GPU: 1.607 MHz
Enormous boost clock of the GPU: 1,835 MHz
3 GB video memory
Very fast memory clock: 4,004 MHz (effective 8,008 MHz)
Only one additional power connection: 1x 8-pin
Compact GeForce GTX 1060 with dual-fan cooler & factory OC
The EVGA GeForce GTX 1060 SSC Gaming ACX 3.0 has a base clock of 1,607 MHz. With GPU-Boost 3.0, it can be boosted to a boost clock of 1,835 MHz if required. The memory clock is 4,004 MHz (effectively 8,008 MHz). For the cooling of the graphics card the Active Cooling Xtreme in the third generation is used.
The ACX 3.0 layout features two redesigned axial fans with optimized swept fan blades, double ball bearings and low-power motors. Thanks to the dual-fan design and open construction on all sides, the resulting waste heat can be delivered even better, so that the cooler works very quietly. Thanks to the low power consumption in idle and in 2D mode, this graphics card switches off its fans completely, as long as a certain temperature is not exceeded.
The white LED illumination of the EVGA GeForce GTX 1060 SSC Gaming ACX 3.0 can be switched off via GeForce Experience. The graphics card is powered by an 8-pin PCIe power plug.
Cheap VR-Ready graphics card from NVIDIA: The GeForce GTX 1060
The GTX 1060s 3 GB of GDDR5 video memories are connected to the GPU via a 192-bit memory interface, resulting in a memory bandwidth of 192 GB / s. The GP106 graphics chip has 1,152 shader units, called NVIDIA CUDA cores.
The GTX-1060 graphics card series supports DirectX 12 and current gaming technologies including NVIDIA Ansel, Gameworks, Warp, Stereo-X, VR-Audio, PhysX, and Simultaneous Multi-Projection (SMP). SMP 4.0 offers great advantages for VR, curved displays and multi-display setups.
Thanks to SMP 4.0, Pascal supports 16 simultaneous viewports that allow a much more realistic display on multiple monitors or curved displays. In particular, gambling in Virtual Reality (VR) benefits from the new technology, as it can render two viewports in one go. By using multiple viewports, the rendered image also has a lower number of calculated pixels.
The GeForce GTX 1060 operates with a TDP of only 120 watts and it is recommended to use a power supply with a minimum power of 400 watts. The GeForce GTX 1060 has an HDMI 2.0b port, three DisplayPort 1.4 ports, and a dual-link DVI output. The HDMI port supports HDCP 2.2 and can send and receive encrypted signals.
In order to realize the full potential of the card in the future, new drivers from NVIDIA or EVGA should be downloaded and installed at regular intervals.
Graphics card exchange without waiting at Caseking!
During the warranty period of 2 years from the receipt of the goods, Caseking will legitimately exchange end-user complaint graphics cards – ie those with a defect confirmed by us – of all brands mentioned below for new goods (if in stock). A submission of the defective goods to the manufacturer and associated longer waiting times are thus completely eliminated! If the graphics card to be replaced is no longer in stock or deliverable, we will issue a credit note. Afterwards an alternative graphic card from our assortment can be chosen freely. Any additional charges can simply be paid and any remaining amounts will be refunded by us.
How do I handle a defect in my graphics card? -> Immediate graphic card replacement (click here)
Brands: ASUS, Club 3D, EVGA, Gigabyte, INNO3D, Palit, PNY, Powercolor, Sapphire, VTX3D, XFX, ZOTAC & King Mod
Free games for NVIDIA GeForce GTX gaming graphics cards:
For each game video card purchased at Caseking, we will send the corresponding coupon codes of the current game bundles by e-mail 1-2 days after receipt of the goods. For non-qualified products no coupon code will be sent. Only end customers receive free donations. All promotions are limited and valid only while stocks last or until the offer is closed. The legal process is excluded. Here are all currently active coupon promotions from NVIDIA:
NVIDIA GeForce GTX 1080 & 1080 Ti: Destiny 2. More information.
Technical details:
Dimensions: 266.7 x 111.2 mm (W x D)
Height: 2-slot
GPU: NVIDIA GeForce GTX 1060
Chip: GP106
Production: 16 nm
GPU clock: 1,607 MHz
Boost clock: 1,835 MHz
Shader units (CUDA cores): 1152
Memory size: 3.072 MB
Memory clock: 4,004 (8,008) MHz
Type: GDDR5
Memory connection: 192 bits
Memory bandwidth: 192 GB / s
Slot: PCIe x16 (PCIe / PCIe 2.x / PCIe 3.0)
Connections:
3x DisplayPort 1.4
1x HDMI 2.0b
1x DVI-D (dual-link)
Power supply: 1x 8-pin PCIe
Recommended power supply performance: min. 400 watts
Features: DirectX 12, OpenGL 4.5, VR Ready, NVIDIA Ansel, G-Sync, Gamestream, GPU Boost 3.0, HDCP 2.2, NVIDIA Surround, 3D Vision, Tessellation, PhysX, CUDA, NVENC, Adaptive Vertical Sync, VXGI, Super Resolution, 4K Ultra HD Support, SMP, NVIDIA ShadowPl
