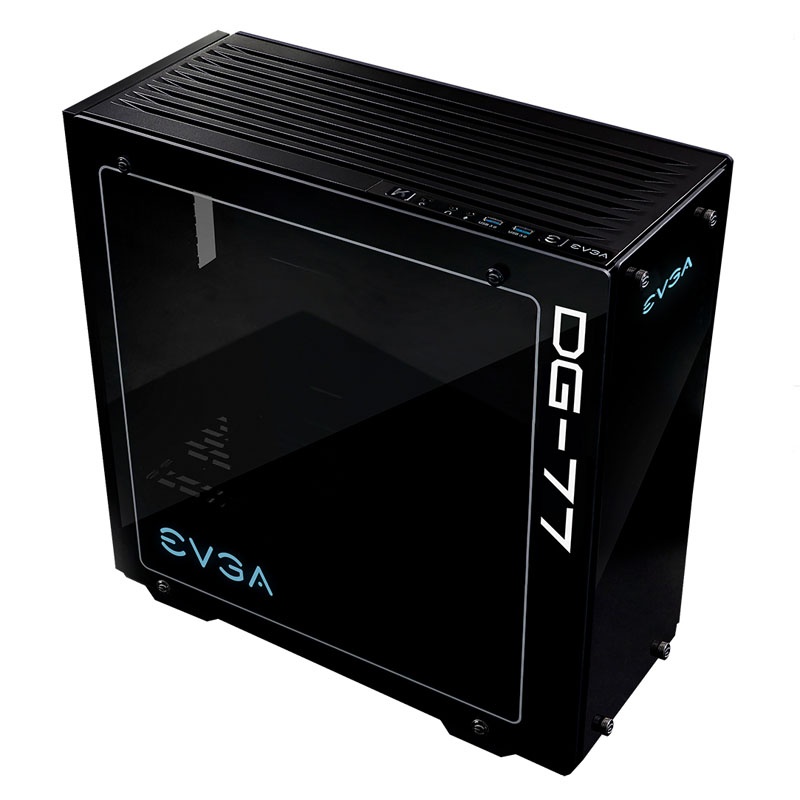

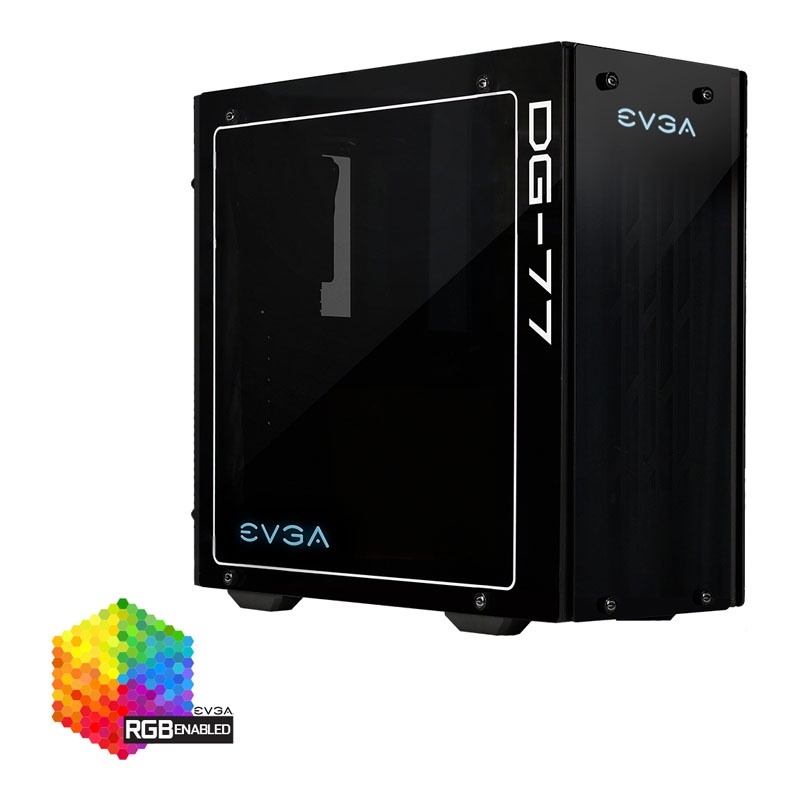

EVGA DG-77 Midi-Tower tempered glass - matt black

The DG-7 enclosure series is aimed at PC enthusiasts who want to pay attention to their budget, without sacrificing quality. The EVGA DG-77 is the highest expansion stage of the DG-7 and offers many features, such as plenty of space for fans or radiators or a chic water cooling. Particularly striking is the ability to vertically install graphics cards, so that their entire splendor behind the transparent window in the side part to admire is a real eye-catcher.

The features of the DG-77 Midi-Tower at a glance:

    For ATX, Micro ATX and Mini ITX motherboards
    Stylish design
    Front and both sides made of tinted or opaque tempered glass
    Optimized airflow
    Space for seven fans
    Space for 360mm radiator
    Vertical placement of the graphics card possible
    Integrated RGB LED controller
    Front HDMI, USB 3.1 Type C & K Boost Switch
    2x 3.5 / 2.5 and 2x 2.5-inch bays

Eye-catcher for hardware and LED lighting

The elegantly designed and sleek DG-77 Midi-Tower should focus on its interior. The front panel is made of tinted toughened glass and allows the view of the built-in LED RGB fans of which EVGA attaches two. Alternatively, a radiator up to 360 millimeters in size can be accommodated there. At the edge of the front, the developers at EVGA have left a gap, which ensures optimized ventilation of the housing.

The left side panel of the DG-77 Midi Tower is also made of tempered glass and reveals a comprehensive view of the mainboard and graphics card. Up to three graphics cards with a length of up to 39 centimeters fit into the DG-77 Midi-Tower. The trick is that a graphics card can be installed vertically, with an optional riser kit. The view of the motherboard remains free. Discreetly on the back of the mainboard tray, however, EVGA hid the bays for data carriers. There is room for a total of four 2.5-inch drives, optionally, two of them can be replaced by 3.5-inch drives. The right side panel is made of non-transparent toughened glass. This completes the classy look of the case, but the drives behind it remain invisible.

EVGA DG-77: Gaming Midi Tower for Enthusiasts

On the back with its seven expansion slots fits a 120-mm fan, the EVGA also attaches. The power supply disappears behind a side cover. On top fits another 240 mm radiator or optionally three 120 mm fans.

In addition to the usual audio connections, the I / O panel also offers a Type-C USB port and two additional USB 3.0 ports. Exceptional is the external HDMI port, such as for virtual reality headsets. The EVGA K-Boost button sets the power management of Windows to maximum to set the CPU and GPU to the highest possible performance. EVGA has given the DG-77 Midi-Tower a sophisticated cable management system that greatly simplifies the installation of all components. Of course, the housing also has dust filters. The DG-77 Midi Tower is the ideal case for those who value their powerful hardware and chic lighting.

Technical details:

    Dimensions: 483 x 477 x 211 mm (W x H x D)
    Weight: about 10.14 kg
    Material: steel (chassis), tempered glass (front, both sides)
    Color: Black
    Form factor: ATX, Micro-ATX, Mini-ITX
    Total fan possible:
    1x 120 mm (back)
    3x 120/140 mm (front)
    3x 120 mm (cover)
    Preinstalled:
    2x 120 mm (front)
    1x 120 mm (cover)
    1x 120 mm (back)
    Radiator mountings (partial waiver of fan slots):
    1x max. 360 mm (front side)
    1x max. 240 mm (cover)
    Filter: top, power supply (removable)
    Drive Bays:
    2x 2.5 / 3.5 inches (internal)
    2x 2.5 inches (internal)
    Power supply: 1x standard ATX (optional)
    Expansion Slots: 7
    Graphics cards: up to 390 mm
    I / O panel:
    1x power
    1x reset
    1x USB 3.1 Type C
    2x USB 3.0
    1x HDMI (front)
    1x K boost
    1x each audio in / out (front)
    Manufacturers warranty: 3 years
