EVGA has not only supplied Gamer with top graphics cards, but also with powerful input devices of the highest precision, stylish housings and potent power supplies. Modern graphics cards place high demands on the power supply. Practical, that EVGA as a specialist for the best and strongest graphics cards then also match the right voltage converters in all price classes, in order to provide these pixel accelerators reliably and reliably with current.
EVGA has not only supplied Gamer with top graphics cards, but also with powerful input devices of the highest precision, stylish housings and potent power supplies. Modern graphics cards place high demands on the power supply. Practical, that EVGA as a specialist for the best and strongest graphics cards then also match the right voltage converters in all price classes, in order to provide these p...
EVGA has not only supplied Gamer with top graphics cards, but also with powerful input devices of the highest precision, stylish housings and potent power supplies. Modern graphics cards place high demands on the power supply. Practical, that EVGA as a specialist for the best and strongest graphics cards then also match the right voltage converters in all price classes, in order to provide these p...
No products found

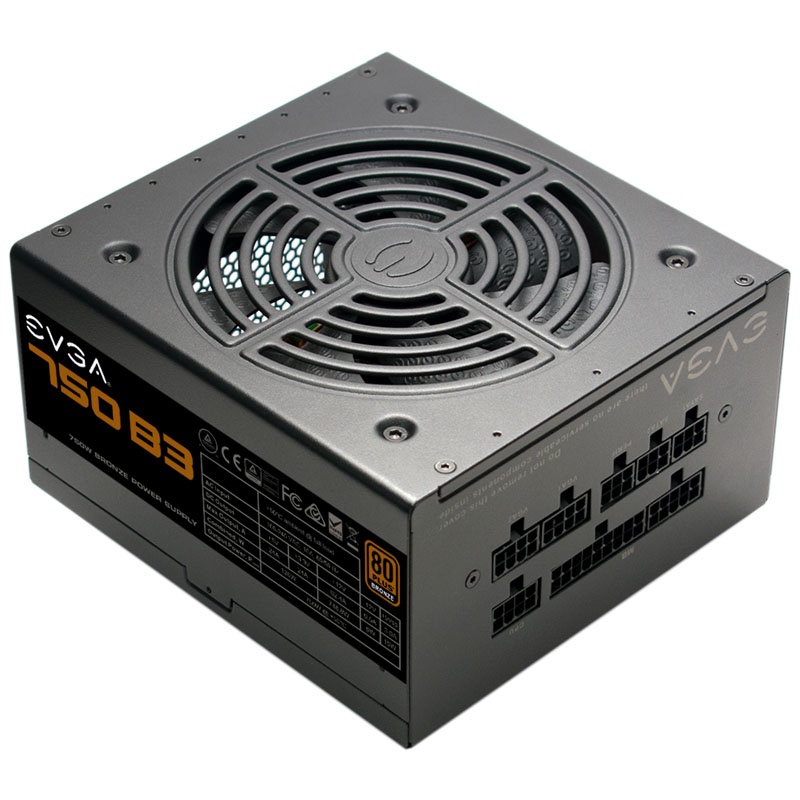

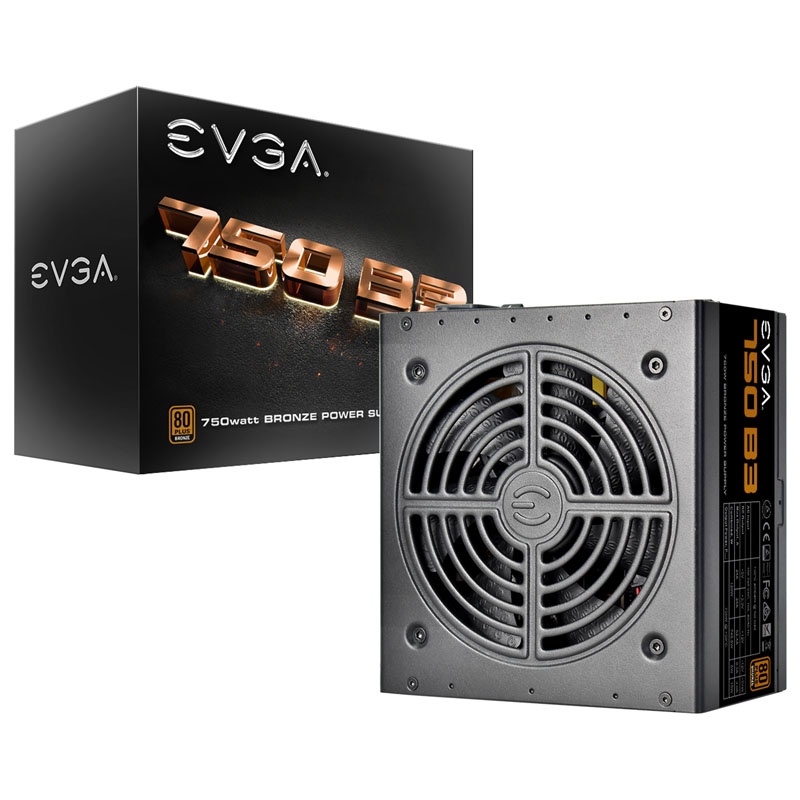

The EVGA B3 80 Plus Bronze Power Supply at a glance:
750 watt total power with 62.4 A strong single-rail
130 mm fan with ECO mode for extremely quiet operation
4x 6 + 2-pin / 6x SATA / 3x 4-pin Molex
High efficiency thanks to 80Plus bronze certificate
Fully modular cable management
Five years of manufacturing guarantee
Powerful EVGA power supply with fully-modular cable management
The models of the B3 series are available in several power stages, all of which fulfill the requirements of 80Plus bronze and thus achieve at least 85% efficiency at medium load. Compared to older bronze power supplies, EVGA offers, above all, improved voltage regulation, a completely modular cable management and the intelligent ECO Thermal Control System, which makes the high-quality LongLife Sleeve Bearing fan in the 130 mm format extremely quiet.
Thanks to the DC-DC downconversion, the + 3.3 and + 5 volt voltage are independently regulated, which in particular improves the suitability for asymmetrical loads, which are almost permanent in modern systems. Thus EVGA B3 power supplies are also officially suitable for the modern Intel platforms according to Haswell. At the same time, this results in the full availability of the rated power as a + 12 volt voltage, if the situation so requires. For example, the graphics card and processor can access up to 748.8 watts with the offered 750 watt model. Thus, the total nominal power can also be used by real systems.
EVGA also relies on quality: On the main board, exclusively electrolytic capacitors of Japanese brands are used, whose quality control is considered particularly strict. A 130 mm fan with LongLife Sleeve Bearing provides the necessary air flow under the air inlet in the low-resistance grill design. Thanks to ECO Thermal Control System, it is also possible to operate extremely quietly at low and medium loads, which also increases the longevity of the fan. Matching to this, EVGA provides all B3 5-year warranty.
EVGA is based on a completely modular cable management system: the mainboard and CPU are supplied via a 24-pin and 4 + 4-pin connector. Two cable strings each with two 6 + 2-pin connectors offer enough capacities for several powerful graphics cards. In addition, a total of six SATA, three 4-pole Molex and a Molex-to-Floppy adapter plug are available. In short, the EVGA B3 is the ideal power supply for high-performance gaming PCs!
Technical details:
Dimensions: 150 x 85 x 160 mm (W x H x D)
Weight: 2.1 kg
Fan: 130 mm (long-life-sleeve bearing, automatic control)
Efficiency: at least 85/82/82 percent at 50/20/100 percent utilization (115V). In the European 230-volt network, the efficiency is up to two percentage points higher.
Active PFC
Form Factor: ATX PS / 2
Operating temperature: 0 degrees to 50 degrees
Power: 750 W
+ 3.3V: 24A
+ 5V: 24A
+ 3.3V & + 5V: 120W
+ 12V: 62.4A / 748.8W
-12V: 0.5A / 6W
+ 5Vsb: 3 A / 15 W
Connections (modular):
1x 24-pin (1x 600 mm)
1x 4 + 4-pin (1x 600 mm)
4 x 6 + 2 pin (2x 550/700 mm)
6x SATA (2x 500/600/700 mm)
3x 4-pole Molex (1x 500/600/700 mm)
1x Molex to Floppy Adapter
Manufacturing guarantee: 5 years
