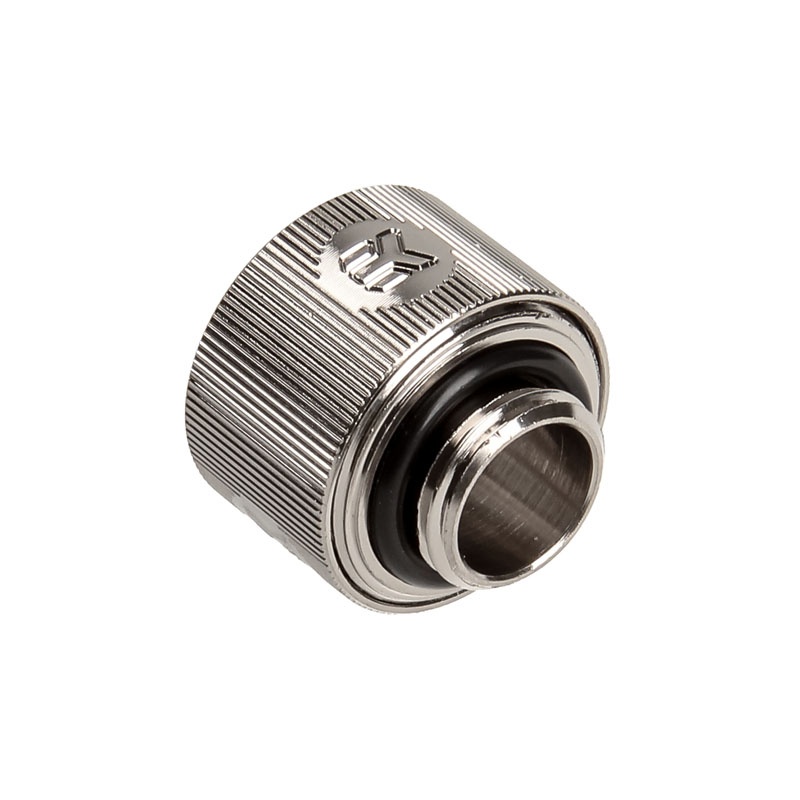

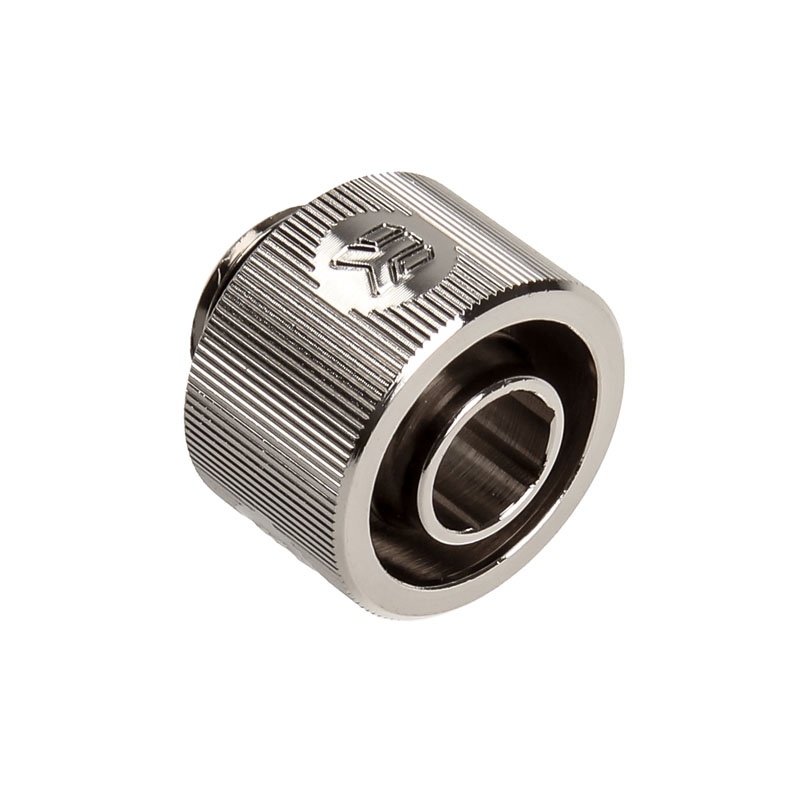

This is a flat straight G1 / 4-inch screw, on the other side of a compression fitting (union nut) for hoses with 16/10 mm outer and inner diameter (OD / ID) represents. The thread is sealed with a rubber ring and the tube side has at the EK-ACF-fitting an Allen-profile, so you can tighten the connection perfectly with an 8-mm Allen key.
The silver fitting this ACF connection is made of nickel-plated brass, the silver cap nut as well. Thanks to the compression effect of the coupling nut sitting hoses especially safe on the EK Water Blocks EK-ACFs.
Technical details:
Material: Nickel plated brass (connection, union nut)
Outside diameter: 22 mm
Height (installed): 15.6 mm
connections:
Outer Thread: G1 / 4 inches
Hose 16/10 mm outer / inner diameter (OD / ID)
Color: Silver
