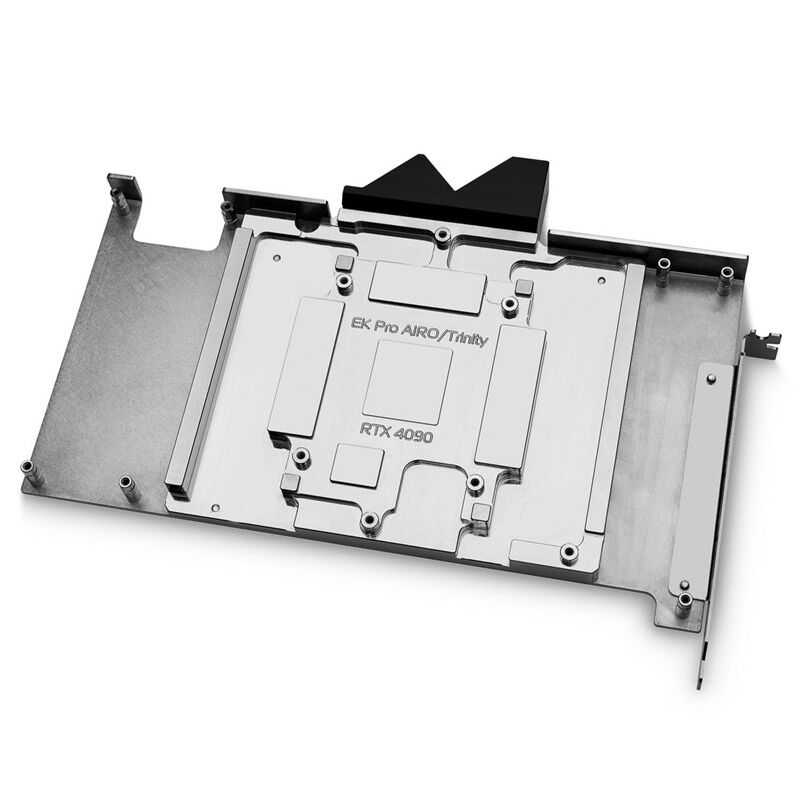

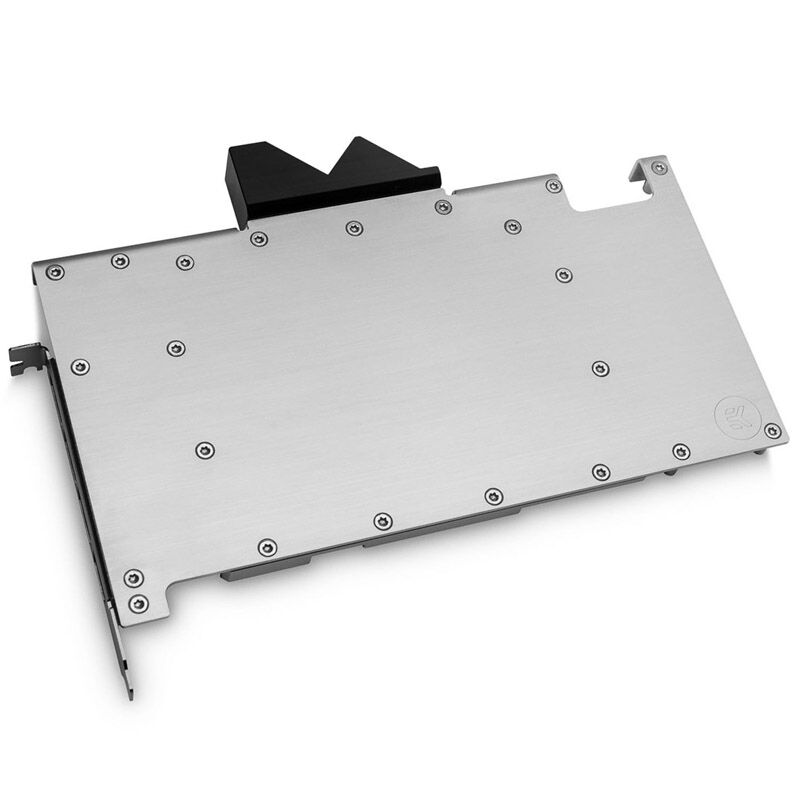

EK-Pro GPU WB AMP/Trinity RTX 4090 – Ni + Inox is a high-performance full-cover water block for the ZOTAC NVIDIA GeForce RTX™ 4090 AMP Extreme Airo, Trinity, and Trinity OC graphics cards.
EK-Pro GPU WB AMP/Trinity RTX 4090 – Ni + Inox is a high-performance full-cover water block for the ZOTAC NVIDIA GeForce RTX™ 4090 AMP Extreme Airo, Trinity, and Trinity OC graphics cards.
EK-Pro GPU WB AMP/Trinity RTX 4090 – Ni + Inox is a high-performance full-cover water block for the ZOTAC NVIDIA GeForce RTX™ 4090 AMP Extreme Airo, Trinity, and Trinity OC graphics cards.
No products found
The water block is a liquid cooling solution that spans the entire card length, cooling all critical components. It directly cools the GPU, VRAM, and the VRM (voltage regulation module) as cooling liquid is channeled directly over these critical areas.
Compatibility list:
EK-Pro GPU WB AMP/Trinity RTX 4090 – Ni + Inox water blocks use an Open Split-Flow cooling engine design that has proven to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, which means it can be used with weaker water pumps or pumps running on low-speed settings and still achieve top performance.
The jet plate and fin structure geometry have been optimized to provide an even flow distribution with minimal losses and optimal performances even when used in reversed water flow scenarios.
The base of the block is CNC machined out of nickel-plated electrolytic copper, while the top is laser-cut out of industry-grade stainless steel. High-quality EPDM O-Rings ensure the sealing. The brass standoffs are pre-installed and allow for a safe and easy installation procedure. For added stability and protection for the graphics card, the I/O plate is designed to be a part of the water block top itself, which means that the block replaces the stock I/O shield and adds more sturdiness to the whole assembly.

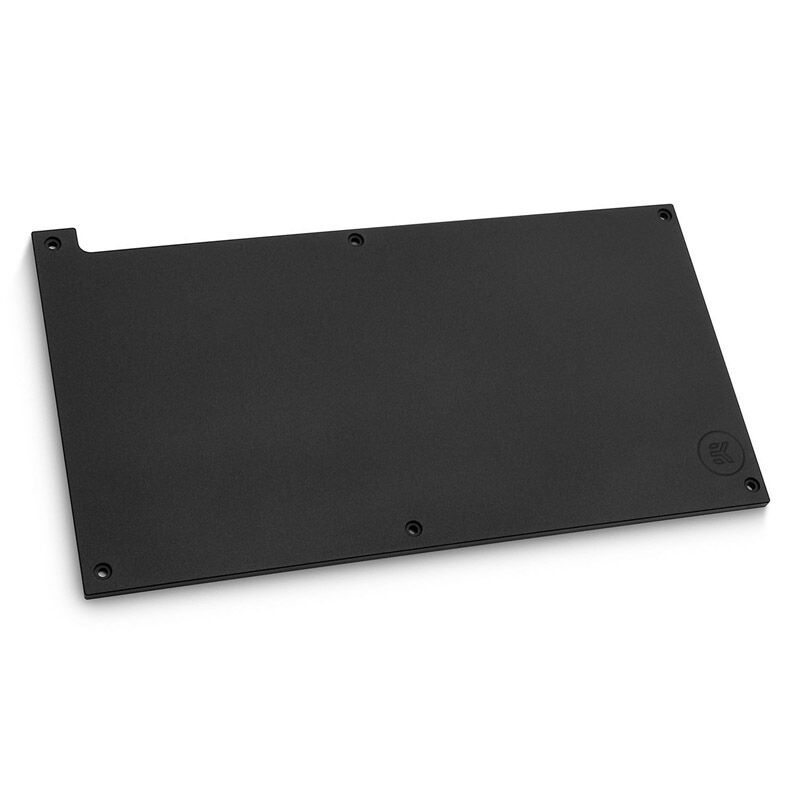

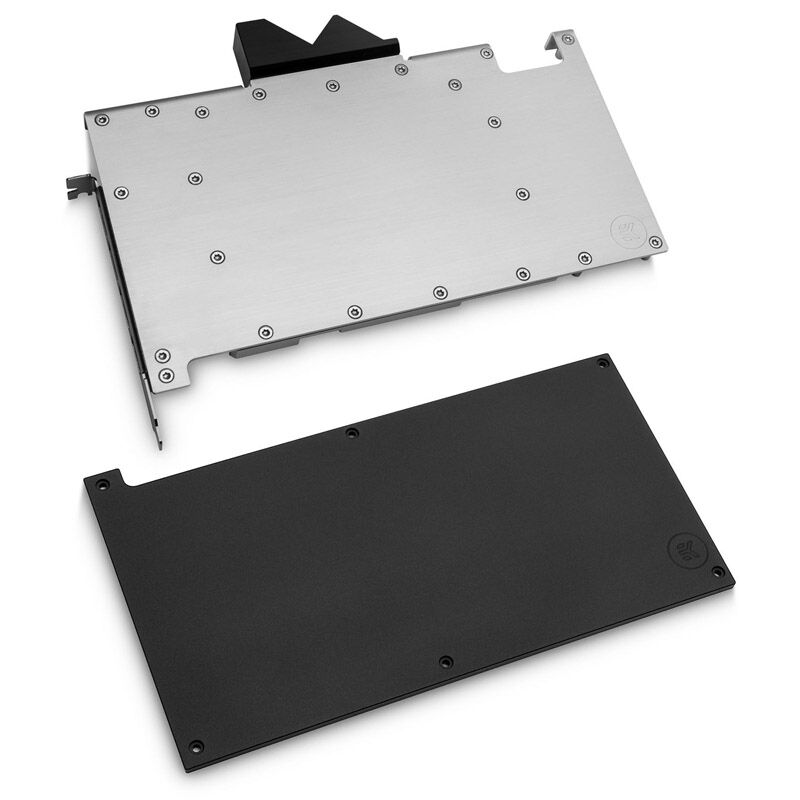

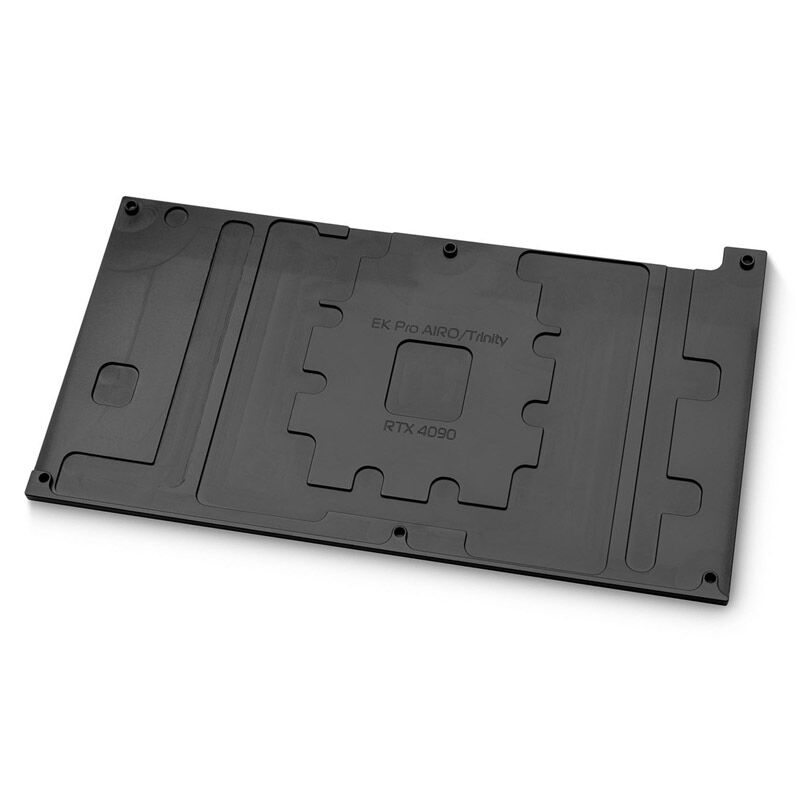

The aesthetically pleasing retention backplate improves your graphics cards looks and structural rigidity while providing passive cooling to the backside of the PCB VRM area.
This version of the EK-Pro AMP/Trinity 4090 GPU water block features a 45 degrees angled terminal block with two G1/4 ports, enabling easy integration with EK-Pro QDC kits and manifolds for high compute density applications.
Technical Specification:
– Dimensions (L x H x W): 232.30 x 160.70 x 21.75 mm
– Materials: Nickel-plated copper and stainless steel
Enclosed:
– EK-Pro GPU WB AMP/Trinity RTX 4090 – Ni + Inox workstation and server-grade water block
– Retention backplate
– Mounting mechanism with screw-in brass standoffs
– Necessary mounting screws, nuts, and washers
– Thermal Interface Material
