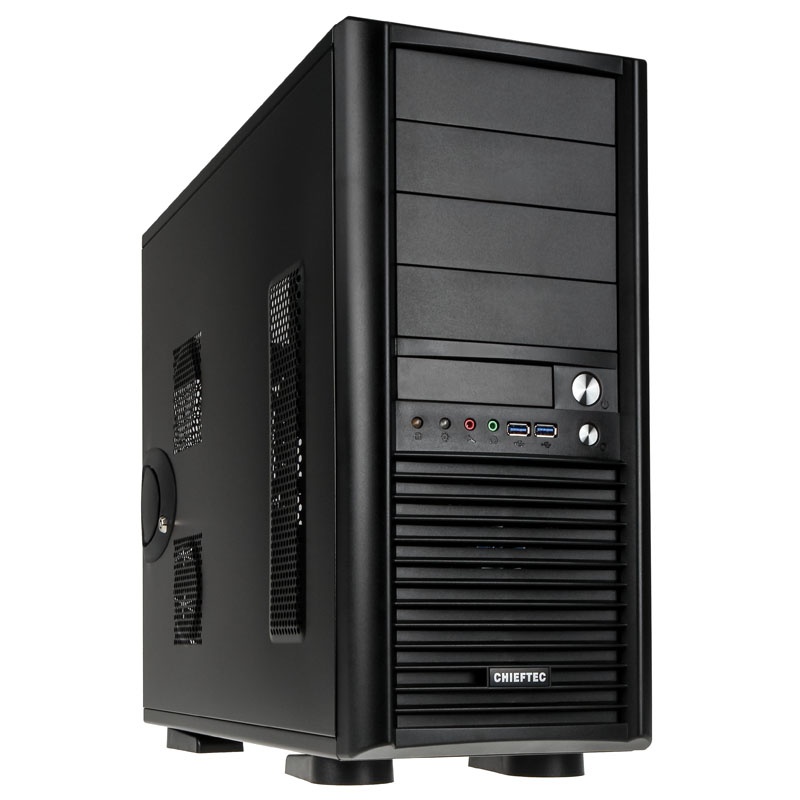

The Chieftec Smart Series CH-09B-U3 midi tower in black can mainboards high hold up to E-ATX form factor and is ideal thanks to its simple design and the five (!) External drive bays not only as a case for a gaming PC, but lends itself well as a base for a home office PC or workstation.
The Chieftec Smart Series CH-09B-U3 midi tower in black can mainboards high hold up to E-ATX form factor and is ideal thanks to its simple design and the five (!) External drive bays not only as a case for a gaming PC, but lends itself well as a base for a home office PC or workstation.
The Chieftec Smart Series CH-09B-U3 midi tower in black can mainboards high hold up to E-ATX form factor and is ideal thanks to its simple design and the five (!) External drive bays not only as a case for a gaming PC, but lends itself well as a base for a home office PC or workstation.
No products found

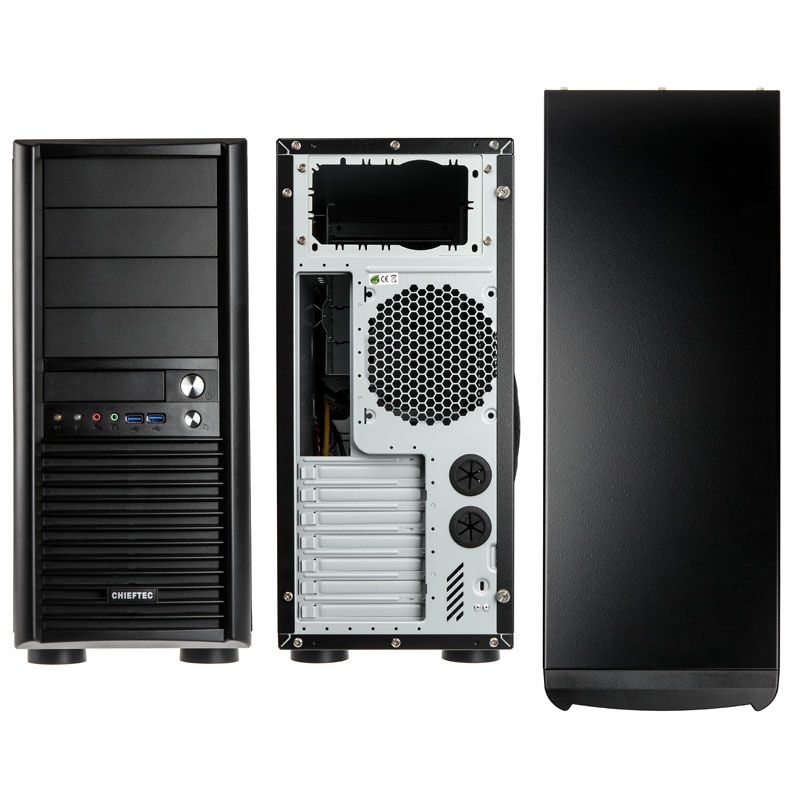

Four of these external drive slots are available 5.25-inch drives, while the fourth, offset to the left slot accommodates an external 3.5-inch drive. The I / O panel in the middle of the front covers in addition to two USB 3.0 ports, audio ports as well as two status LEDs per a power and reset button.
The painted in gray interior of the Tower can accommodate up to 320 mm long Pixel Accelerator and thanks to the seven PCI-aperture also multiple graphics cards and additional plug-in and extension cards can be installed. For data storage there are five drive slots for 3.5-inch hard drives and CPU cooler ready can be up to 160 mm high.
For the passive cooling of the drives the left side panel has a ventilation grille in the front area and can additionally accommodate two optional 92-mm fan. The pre-installed 120mm fan in the front can be used for an optimized airflow an optional fan (120 mm) are added in the back. For an external water cooling in the back two hose feedthroughs are also been integrated into the Case.
Technical details:
Dimensions: 205 x 440 (with feet + 20 mm) x 540 mm (W x H x D)
Material: steel, plastic
Weight: 12.15 kg
Color: Black (outside), gray (inside)
Form Factor: E-ATX, ATX, Micro-ATX
Fan total possible:
1x 120 mm (rear)
1x 120 mm (front)
2x 92 mm (left side panel)
Of this pre-installed:
1x 120 mm (front)
Drive Bays:
4x 5.25-inch (external)
1x 3.5 inch (external)
5x 3.5 inch (internal)
Power Supply: 1x standard ATX (optional)
Extension slots: 7
I / O Panel:
2x USB 3.0
1x per Audio In / Out
Maximum video card length: 320 mm
Maximum CPU cooler height: 160 mm
