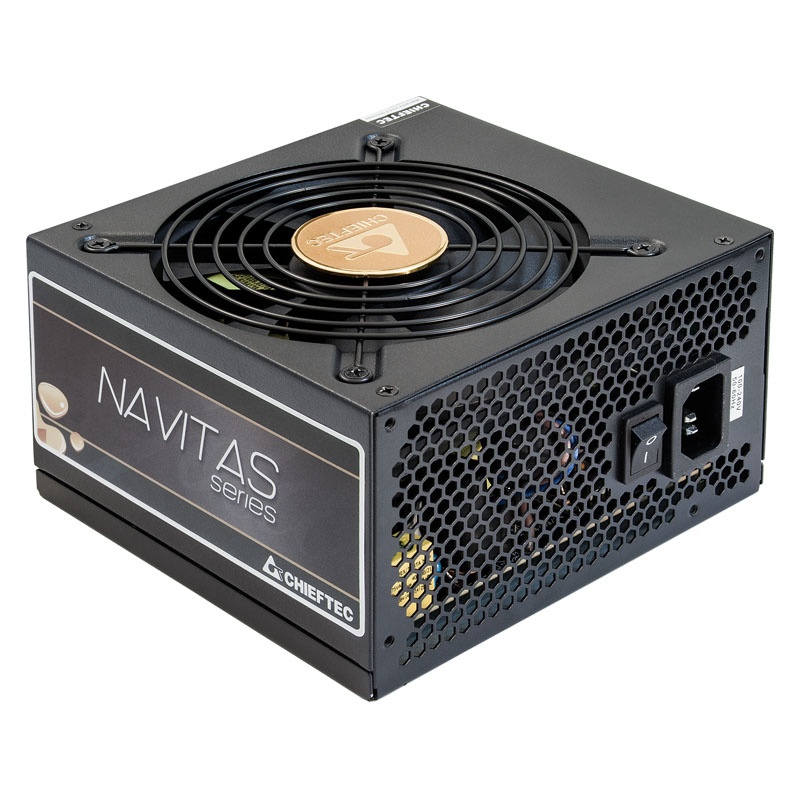

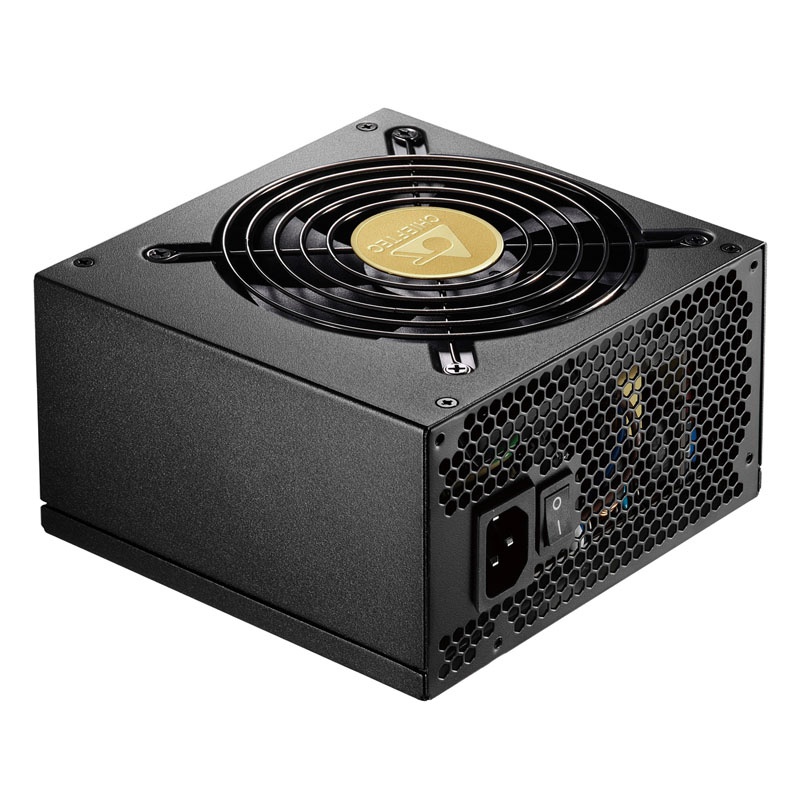

The Chieftec Navitas GPM-750S is intended for all who plan particularly economical computer. As one of the few manufacturers Chieftec brings modern technology in the upscale class. Finally, there are at gaming computers is no reason to waste expensive energy due to inefficient power supplies. Chieftec therefore relies on the 80 Plus Gold certification, together with a guaranteed efficiency of 90/87/87 percent 50/20/100 percent load. Thus, the GPM-750S works very energy efficient.
The high efficiency is achieved with modern technology: Under the I plugged DC-DC technology, including independent voltage regulation. The voltage values are therefore particularly close to the setpoint and can not be impressed by demanding asymmetric loads. The GPM can provide the entire nominal power on the + 12-volt line – ideal for modern CPUs and graphics cards. With 750 watts of continuous power all gaming rigs can be supplied. Even SLI and Crossfire systems are possible, as long as we confine ourselves to performance graphics card with a power plug.
The low price is paid for with small savings in the terminals. Chieftec dispensed with detachable connectors, all wiring harnesses are securely connected. The processor is supplied via a 4 + 4-pin EPS connector. Two 6 + 2-pin PCIe connectors are reserved for the pixel accelerator available. The Navitas S with 750 Watt is therefore particularly suitable for a massively overclocked high-end graphics card or two fast cards with only one power supply.
Technical details:
Dimensions: 140 x 86 x 150 mm (W x H x D)
Fan: 120 mm (automatic control)
Efficiency: at least 90/87/87 percent 50/20/100 percent load (including 80 Plus Gold certificate.).
Active PFC (0.9)
Form Factor: ATX12V 2.3 / EPS 2.92
Continuous power: 650 W
+ 3.3V: 22A
+ 5V: 22A
3.3V + 5V: 120W
+ 12V: 750 W / 62.5 A
-12V: 0.3A (3.6 W)
+ 5Vsb: 3 A (15 W)
Connections (fixed):
1x 24-pin
1x 8-pin (CPU / ATX12V, EPS12V)
2x 6 + 2-pin PCIe
7x SATA
2x 4-pin Molex
Manufacturer Warranty: 24 Months
