The small form factor enclosure IX-01B Chieftec is a mini-tower case for bargain hunters who want to see as a compact package their hardware. Fits Mini ITX boards, the IX-01B is the ideal condition for a space-saving office or HTPC with ample space for the most important hardware.
The small form factor enclosure IX-01B Chieftec is a mini-tower case for bargain hunters who want to see as a compact package their hardware. Fits Mini ITX boards, the IX-01B is the ideal condition for a space-saving office or HTPC with ample space for the most important hardware.
The small form factor enclosure IX-01B Chieftec is a mini-tower case for bargain hunters who want to see as a compact package their hardware. Fits Mini ITX boards, the IX-01B is the ideal condition for a space-saving office or HTPC with ample space for the most important hardware.
No products found

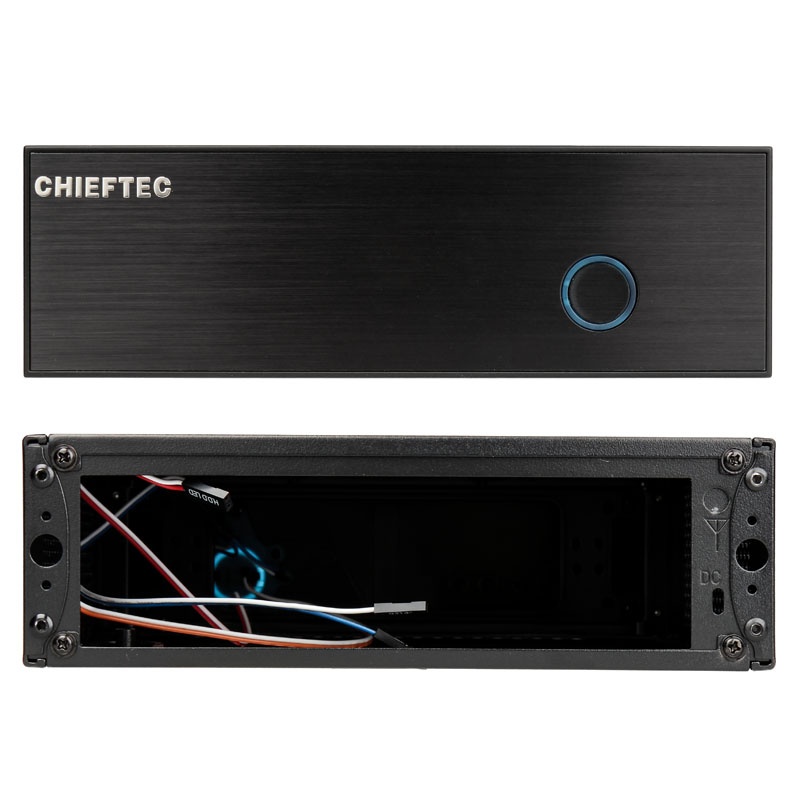

The design of the IX-01B has Chieftec kept relatively simple, so there is a completely black case from a steel body with breathable honeycomb structure, which can penetrate sufficiently air. The decorated with an aluminum plate front, however, includes a glowing blue power button and the Chieftec logo, creating a cleaner and noble look is created. By magnetic feet the housing in the horizontal and vertical alignment is always a good grip.
At the back are next to the recess for the I / O Shield two more holes for the hollow plug, where eventually a HTPC PSU can be connected. In addition, there is a recess for an external wireless antenna on the back, so can guarantee optimum reception. On expansion slots is completely dispensed with IX-01B.

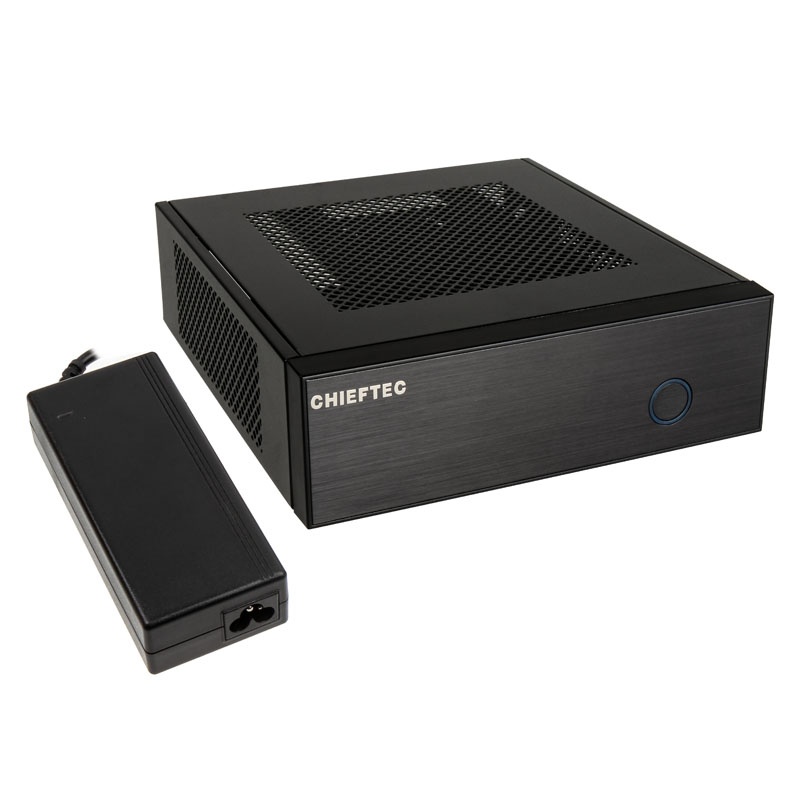

In also a compact interior is a Mini-ITX motherboard, and two 2.5-inch hard drives can obstruct. It must be noted that the maximum CPU cooler height of 40 mm, the block of SSDs to the appropriate height must be reduced. In this version, a 85-watt power supply included is included, sufficient energy for your office or HTPC hardware.
If the CPU cooler is not sufficient to include full hardware in IX-01B to sufficiently cool, there is the opportunity to install two optional 50 mm fan in the lid. Thus, the small enclosure offers enough potential for optimally cooled hardware.
If that is not enough to pack his office or HTPC hardware properly, the Chieftec are two optional expansion possibilities at hand. First, the accessory kit MK-35DV, whereby the functionality of the housing can be increased enormously and either install a slimline optical drive or the memory capacity is increased by the use of 3.5-inch and 2.5-inch hard drive can be. Secondly, the practical bracket WMK-04, with which the housing can be mounted on suitable monitors.
Technical details:
Dimensions: 197 x 63 x 220 mm (W x H x D)
Material: Steel (Body), aluminum (front)
Material thickness: 0.8 mm
Weight: approx 1.5 kg
Color: Black
Form Factor: Mini-ITX
Fan:
2x 50 mm (cover, optional)
Drive bays (external):
1x 5.25-inch slimline (optional with MK-35DV-side part)
Drive bays (internal):
2x 2.5-inch or optional with MK-35DV page part: 1x 3.5-inch and 1x 2.5-inch ()
I / O panel:
1x Power Button
PSU: 85 watts (included)
Maximum CPU cooler height: 40 mm (without 2.5-inch hard disk drive)
