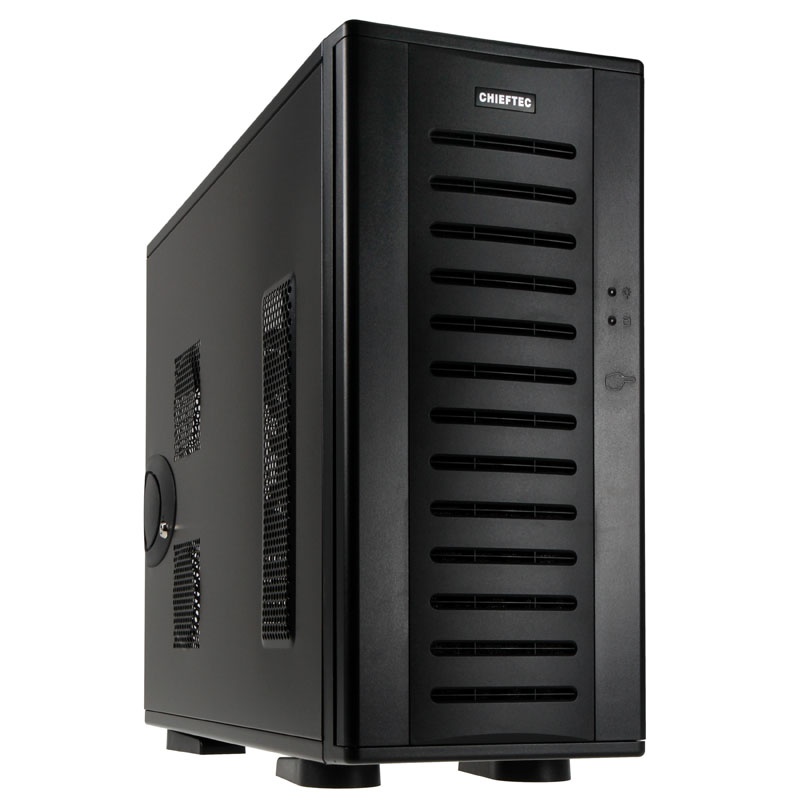

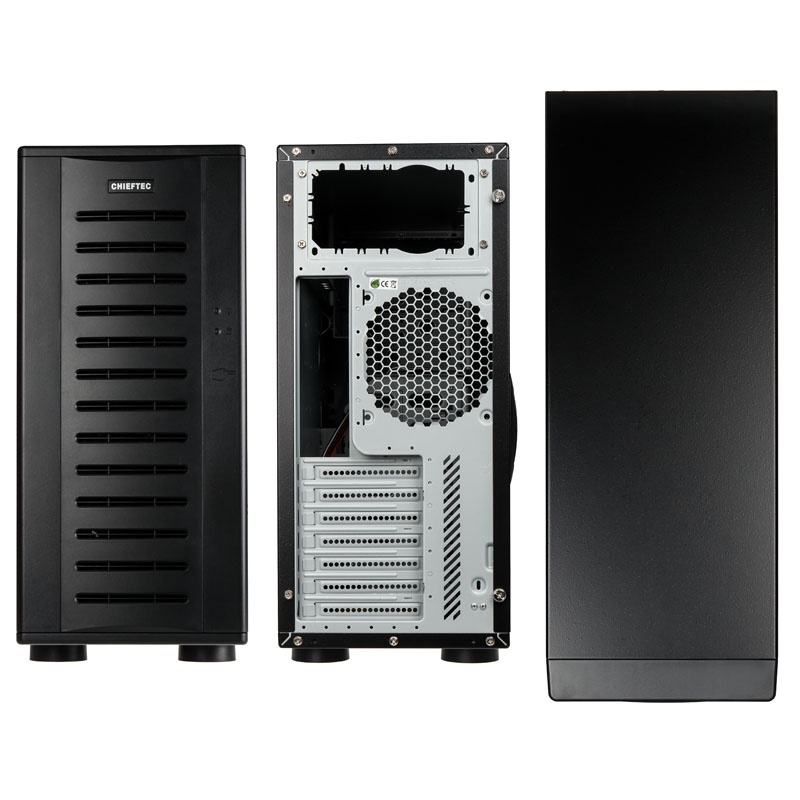

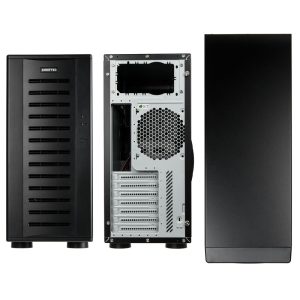

Chieftec Bravo Series BH-01B-U3 Midi-Tower - black

Three of these drive slots are equipped with anti-vibration brackets CHIEFTEC and take on 5.25-inch drives, while the fourth, offset to the left slot accommodates an external 3.5-inch drive. Among the drives are a mesh surface with dust filter as well as two status LEDs and one power and reset button on the I / O panel.

The two modern USB 3.0 ports, a welcome FireWire port and the two mandatory audio connections are located on the lower right side of the front cover and complete the I / O panel. Directly behind the terminals of the I / O panels are mounting options for two optional 92-mm fan.

These two fans provide in connection with the ventilation grilles on the opposite side for a good airflow in the area under the external drives, which can accommodate up to six 3.5-inch hard drives. Another optional 120 mm fan can be mounted in the back under the optional ATX power supply and additional optional 92mm fan can be installed in the left side part ..

One or more up to 320 mm long graphics cards can be installed in the BH-01B-U3 Midi-Tower and total are seven PCI-aperture for insertion and expansion cards while CPU cooler can be up to 160 mm high.

Technical details:

    Dimensions: 205 x 440 (with feet + 20 mm) x 540 mm (W x H x D)
    Material: steel, plastic
    Weight: 12.48 kg
    Color: Black (outside), gray (inside)
    Form Factor: E-ATX, ATX, Micro-ATX
    Fan total possible:
    1x 120 mm (rear)
    2x 92mm (right side panel)
    2x 92 mm (left side panel)
    Drive Bays:
    3x 5.25 inches (external)
    1x 3.5 inch (external)
    6x 3.5 inch (internal)
    Power Supply: 1x standard ATX (optional)
    Extension slots: 7
    I / O Panel:
    2x USB 3.0
    1x FireWire
    1x per Audio In / Out
    Maximum video card length: 320 mm
    Maximum CPU cooler height: 160 mm
