CableMod SE-Series KM3, XM2, XP2 / 3, FL2, XFX Cable Kit - Black / Yellow

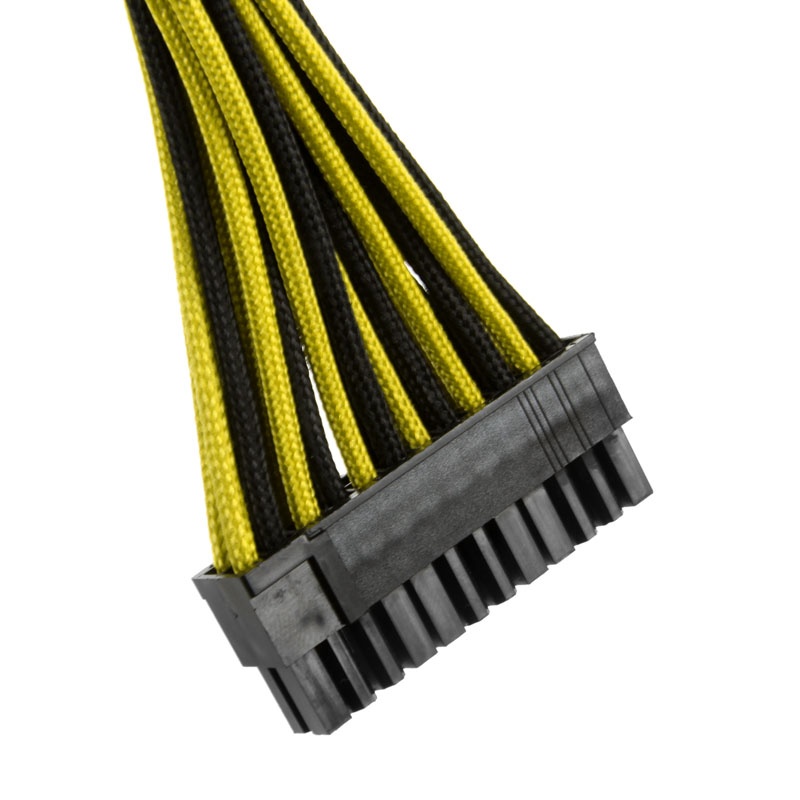

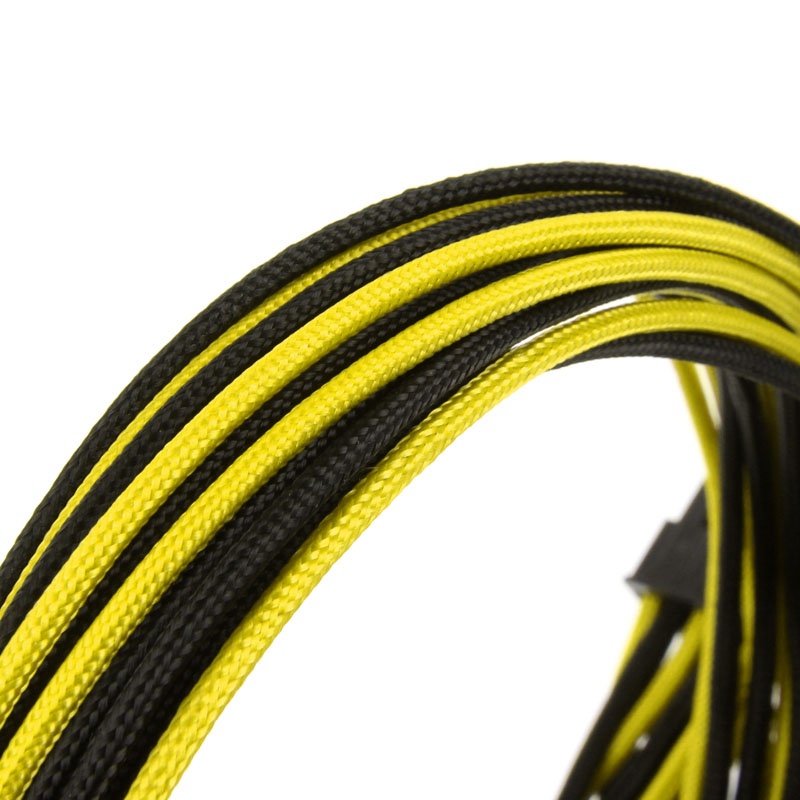

Each wire of a wire harness is here surrounded by its own sleeve that looks fantastic and ensures maximum flexibility of the entire cable. Stubborn cable that simply do not want to get there, where to go? Was yesterday! CableMods material for the Sleevings called ModFlex, a specially designed fabric that meets even the highest demands of experienced modders because it is softer and more flexible than nylon sheaths, but still incomparably tightly woven and therefore one hundred percent opaque.

The processing of CableMods sleeved cables is impeccable, what immediately stands out visually and sensually enjoyable if you take the cable for the first time in the hand. Also a definite plus compared to many competitors: CableMod completely waives Shrink Tubing at the transitions between the wires and plugs. The colored ModFlex-wrappers instead go right into it until the black connectors so that no vile Heatshrinks disrupt the perfect visual impression.

A big advantage over jacketed extension cables consists in the CableMod kits is that they directly replace standard connection cables that are supplied with the compatible modular power supplies. So, in order to obtain a uniform and very high quality cables look, must not be laid hidden until the original cable inside the case, at least at the interface to the power supply are always a little to see.

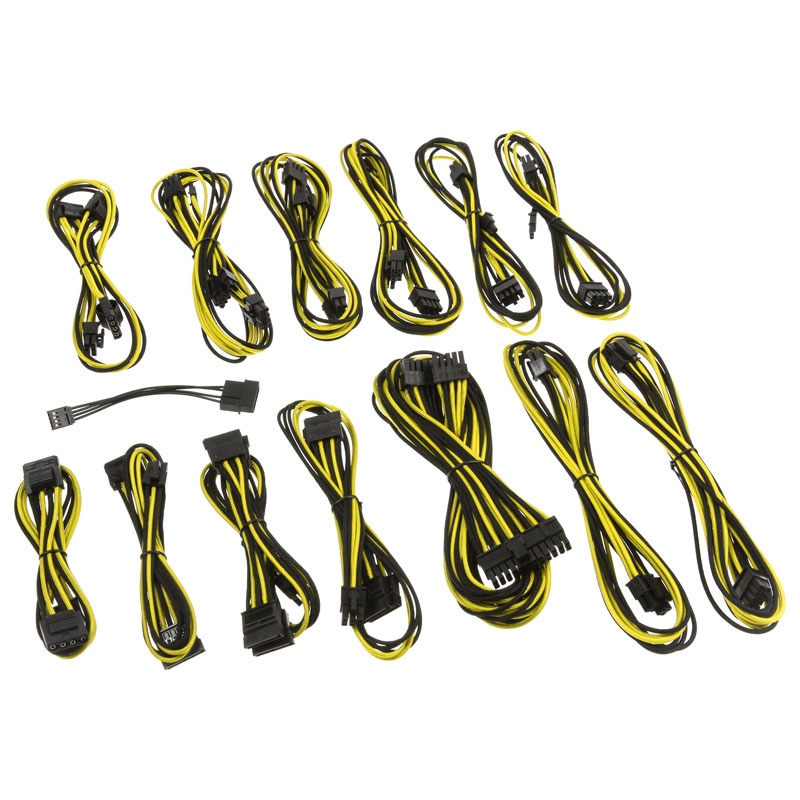

The offered black-yellow Cable Kit is a set of a total of 13 cables, the individual wires are sleeved with alternating black and yellow ModFlex fabric. The set is compatible with the Seasonic power supplies of series X KM3 (z. B. SS 750KM3), X XM2 (z. B. SS 1050XM2), Platinum XP2 (about SS 760XP2), Platinum XP3 (about SS 1200XP3) and Platinum Fanless FL2 (z. B. SS 520FL2) or the XFX Pro Series Black Edition (z. B. 850B-BEFX) and the cable strands fit into the sockets provided on the Power Supply Unit. The exact number of cables and connectors and their length can be found in the technical details.

Notes: Please note that the cable set offered here is available only for the specified power supply models with modular cable management Seasonic!
Figure 6 shows examples of some of the colors offered, only the cable specifically mentioned in the technical details will be here but offered.

Technical details:

    Sleeves Material: Textile (ModFlex)
    Color: Black / Yellow (sleeves), black (male)
    Compatibility mode power supplies:
    Seasonic X series KM3: X-650 BM3, X-750 BM3, X-850 BM3
    Seasonic X series XM2: 1050W XM2, 1250W XM2
    Fanless Seasonic Platinum Series FL2: 400W FL2 FL2 460W, 520W FL2
    Seasonic Platinum XP3 series: 1050W XP3, 1050W Snow White XP3, 1200W XP3
    Seasonic Platinum XP2 series: 660W XP2, XP2 760W, 860W XP2
    XFX Pro Series Black Edition: 850B-BEFX, 1050 BEFX, 1250 BEFX
    Cable:
    1x 20 + 4-pin ATX12V / EPS12V (580 mm without plug)
    2x 4 + 4-pin ATX12V / EPS12V (680 mm without plug)
    2x 6 + 2-pin PCIe (580 mm without plug)
    3x dual 6 + 2-pin PCIe (1/2 port. 580/670 mm without plug)
    1x Quad-SATA (. 1st / 2nd / 3rd / 4th port: 530/630/740/840 mm without plug)
    1x Quad-SATA (. 1st / 2nd / 3rd / 4th port: 380/480/590/700 mm without plug)
    1x Dual SATA (1/2 port. 380/490 mm without plug)
    1x triple 4-pin Molex (. 1st / 2nd / 3rd connection: 520/610/710 mm without plug)
    1x Dual 4-pin Molex (1/2 port. 370/470 mm without plug)
    1x 4-pin Molex adapter to floppy (100 mm without connector, no sleeve, black single plastic coating)
