CableMod CM-Series V / VS Cable Kit - Black / Orange

Each wire of a wire harness is here surrounded by its own sleeve, which looks fantastic and ensures maximum flexibility of the entire cable. Stubborn cables that simply do not want to get there, where to go? Old news! CableMods material for Sleevings called ModFlex, a specially designed fabric which satisfies even the highest demands of experienced modders, as it is softer and more flexible than nylon wrappings, but still incomparably tightly woven and therefore one hundred percent opaque.

The processing of CableMods sleeved cables is perfectly what immediately stands out visually and sensually enjoyable if you take the cable for the first time in the hand. Also a definite plus compared to many competitors: CableMod dispenses entirely with shrink tubing at the junctions between the wires and plugs. The colored ModFlex-wrappers instead go right into it until the black terminals, so no filthy Heatshrinks disturb the perfect visual impression.

A big advantage over jacketed extension cords is at the CableMod kits is that they directly replace the normal connection cables that are supplied with the compatible modular power supplies. Thus, in order to obtain a uniform and very high quality cable look, must not be laid hidden until the original cable in case that at least at the interface to the power supply a little are always seen.

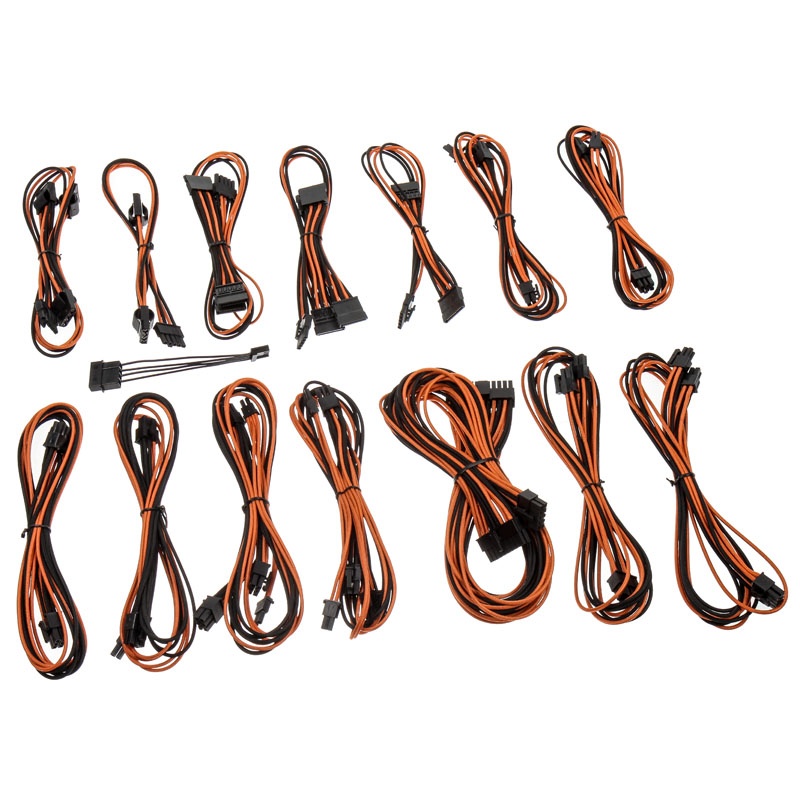

The offered black and orange Cable Kit is a set of a total of 14 cables, the individual wires are alternately sleeved with black and orange ModFlex fabric. The set is compatible with the Cooler Master power supplies V-Series (with 80 PLUS Gold – or 80 PLUS Platinum certificate) and slightly limited * to participate modular VS series (with 80 PLUS Gold certificate) and the cable strands fit into the sockets provided on the Power Supply Unit. The exact number of cables and connectors and their length can be found in the technical details.

Notes: Please note that the cable set offered here is available exclusively for the specified power supply models with (some) modular cable management from Cooler Master!
Figure 6 shows an example of some of the color options offered, only the cable specifically mentioned in the technical details, there are here but available.

Technical Details:

    Material Sleeves: Textile (ModFlex)
    Black / Orange (sleeves), black (male)
    Compatibility Power Supplies:
    Cooler Master VS-Series: V450SM *, * V550SM, V650SM *, V750SM *
    Cooler Master V-Series: V700, V850, V1000, V1200
    Cable:
    1x 24-pin ATX12V / EPS12V (580 mm without connector) *
    2x 4 + 4-pin ATX12V / EPS12V (680 mm without plug)
    2x dual 6 + 2-pin PCIe (1/2 connection. 730/670 mm without plug)
    4x 6 + 2-pin PCIe (580 mm without plug)
    1x Quad-SATA (. 1st / 2nd / 3rd / 4th port: 530/630/740/840 mm without plug)
    1x Quad-SATA (. 1st / 2nd / 3rd / 4th port: 380/480/590/690 mm without plug)
    1x dual SATA (1/2 connection. 380/490 mm without plug)
    1x triple-4-pin Molex (. 1. / 2. / 3 connection: 520/610/710 mm without plug)
    1x dual 4-pin Molex (1/2 connection. 370/470 mm without plug)
    1x Adapter 4-Pin Molex to Floppy (100 mm without connector, no sleeve, black single plastic sheath)
    * Note:
    The power supply models of the Cooler Master VS series are only partially modular and have accordingly a permanently installed 24-pin ATX cable harness so that it can not be replaced and only 13 other CableMod Sleeve cable can be used.
