CableMod C-Series AX, HXI and RM Cable Kit - Blue

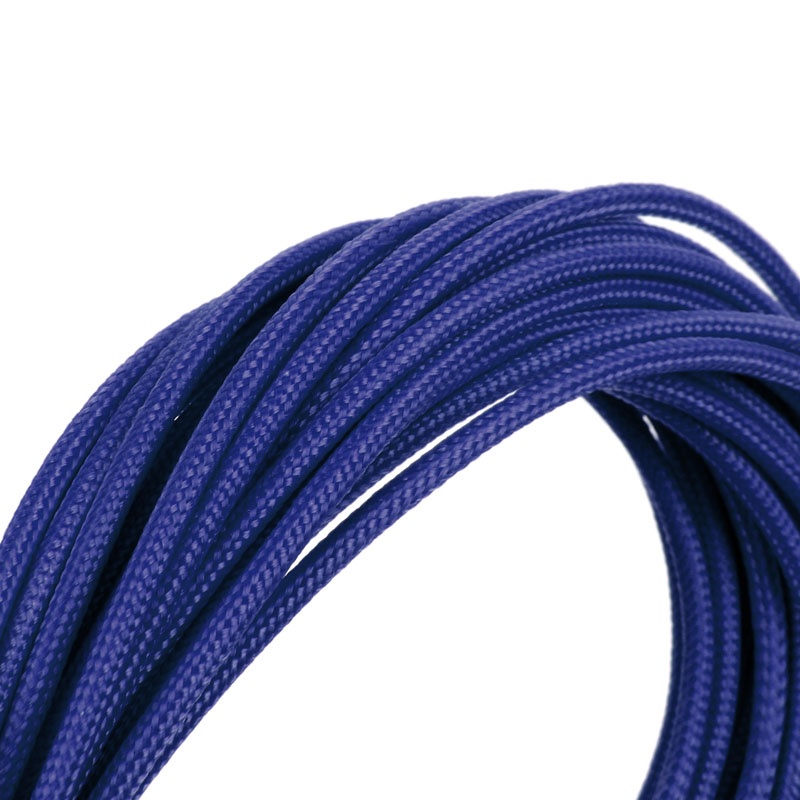

Each wire of a wire harness is here surrounded by its own sleeve that looks fantastic and ensures maximum flexibility of the entire cable. Stubborn cable that simply do not want to get there, where to go? Was yesterday! CableMods material for the Sleevings called ModFlex, a specially designed fabric that meets even the highest demands of experienced modders because it is softer and more flexible than nylon sheaths, but still incomparably tightly woven and therefore one hundred percent opaque.

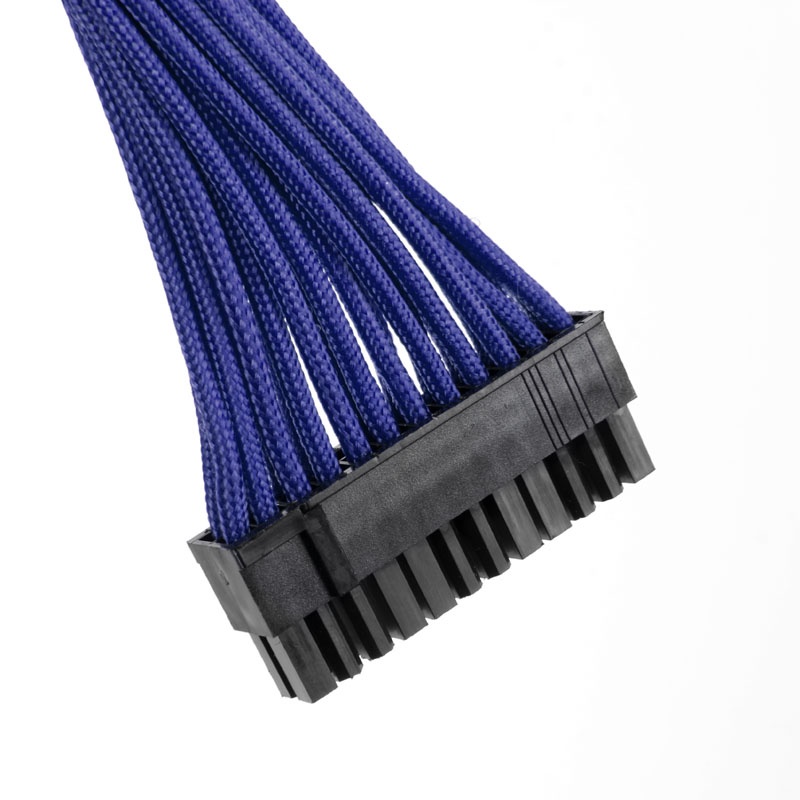

The processing of CableMods sleeved cables is impeccable, what immediately stands out visually and sensually enjoyable if you take the cable for the first time in the hand. Also a definite plus compared to many competitors: CableMod completely waives Shrink Tubing at the transitions between the wires and plugs. The colored ModFlex-wrappers instead go right into it until the black connectors so that no vile Heatshrinks disrupt the perfect visual impression.

A big advantage over jacketed extension cables consists in the CableMod kits is that they directly replace standard connection cables that are supplied with the compatible modular power supplies. So, in order to obtain a uniform and very high quality cables look, must not be laid hidden until the original cable inside the case, at least at the interface to the power supply are always a little to see.

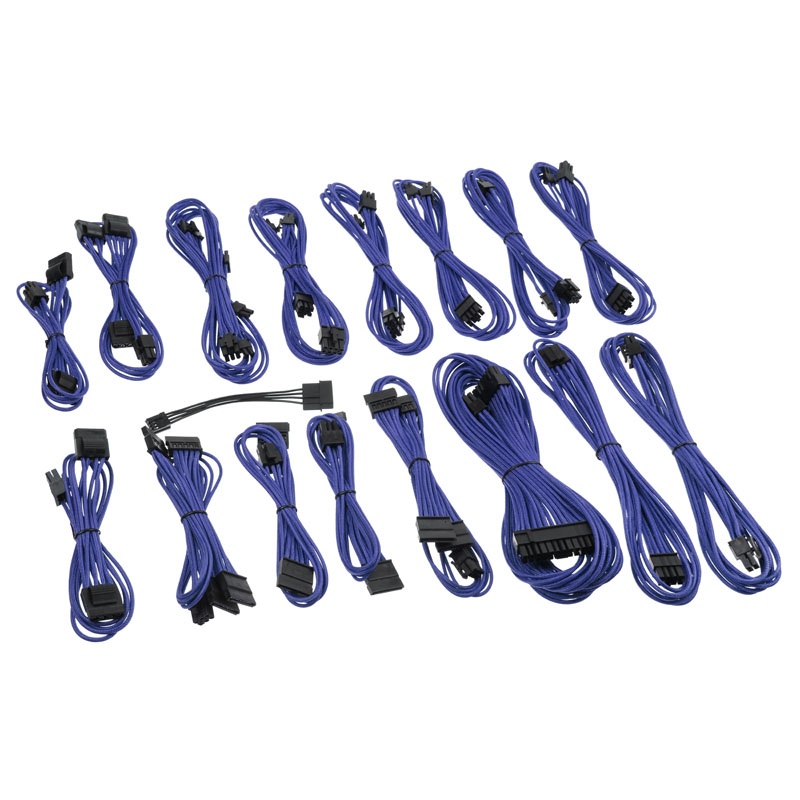

The offered location is blue Cable Kit is a set of 16 cables, the individual wires are sleeved with blue ModFlex fabric. The set is compatible with the Corsair power supplies of the AX series (z. B. Corsair AX1200i), HXI (about Corsair HX850i) and RM (for example, Corsair RM750) and the cable strands fit into the sockets provided on the Power Supply Unit. The exact number of cables and connectors and their length can be found in the technical details.

Notes: Please note that the cable set offered here is available only for the specified power supply models with modular cable management from Corsair!
Figure 6 shows examples of some of the colors offered, only the cable specifically mentioned in the technical details will be here but offered.

Technical details:

     Sleeves Material: Textile (ModFlex)
     Color: Blue (sleeves), black (male)
     Compatibility mode power supplies:
     Corsair AX series i: AX760i, AX860i, AX1200i, AX1500i
     Corsair HX series i: HX750i, HX850i, HX1000i
     Corsair RM series: RM450, RM550, RM650, RM750, RM850, RM1000
     cable:
     1x 20 + 4-pin ATX12V / EPS12V (580 mm without plug)
     2x 4 + 4-pin ATX12V / EPS12V (680 mm without plug)
     4x 6 + 2-pin PCIe (580 mm without plug)
     2x Dual-6 + 2-pin PCIe (1/2 port. 580/670 mm without plug)
     1x Quad-SATA (. 1st / 2nd / 3rd / 4th port: 530/630/740/840 mm without plug)
     1x Quad-SATA (. 1st / 2nd / 3rd / 4th port: 380/480/590/700 mm without plug)
     2x Dual SATA (1/2 port. 380/490 mm without plug)
     1x triple 4-pin Molex (. 1st / 2nd / 3rd connection: 520/610/710 mm without plug)
     2x dual 4-pin Molex (1/2 port. 370/470 mm without plug)
     1x 4-pin Molex adapter to floppy (100 mm without connector, no sleeve, black single plastic coating)
