BitsPower Orion GPU cooler RTX 4090 FE - acrylic

– Effective cooling performance thanks to nickel-plated and chrome-plated copper base
– Impressive look thanks to the transparent acrylic lid
– Four G1/4 connections to be included in the circuit
– Digitally addressable RGB LED lighting (3-pin, 5VDG)
– Including backplate made of black anodized aluminum

The Bitspower Orion water cooler in detail:

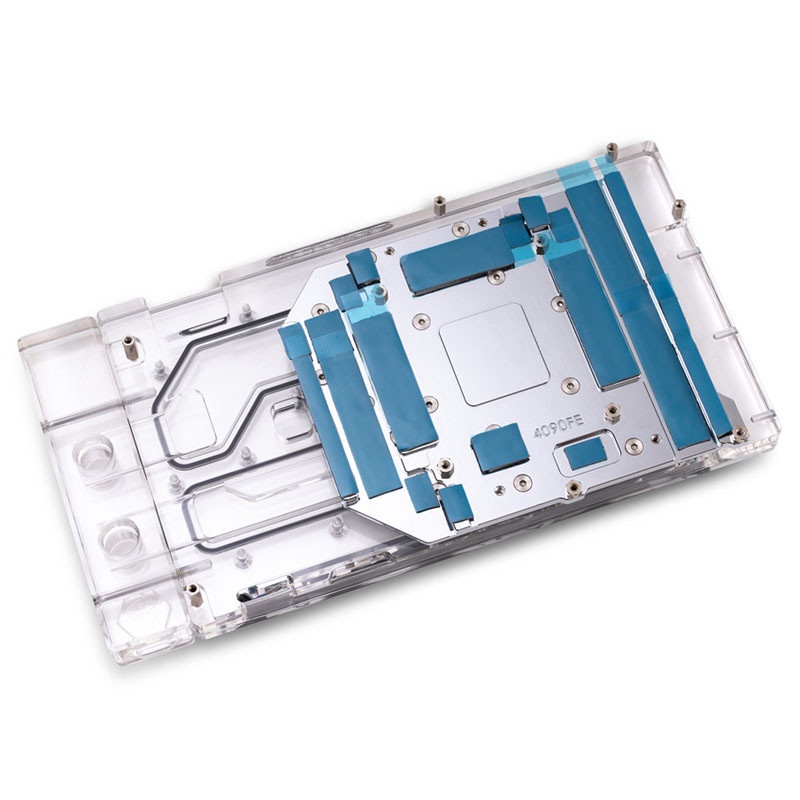

It is a full-block design that covers all relevant heat sources of the graphics card and thus cools them effectively – i.e. the GPU, the memory and the voltage converters. Nickel-plated and chrome-plated copper is used to optimally transfer the heat.

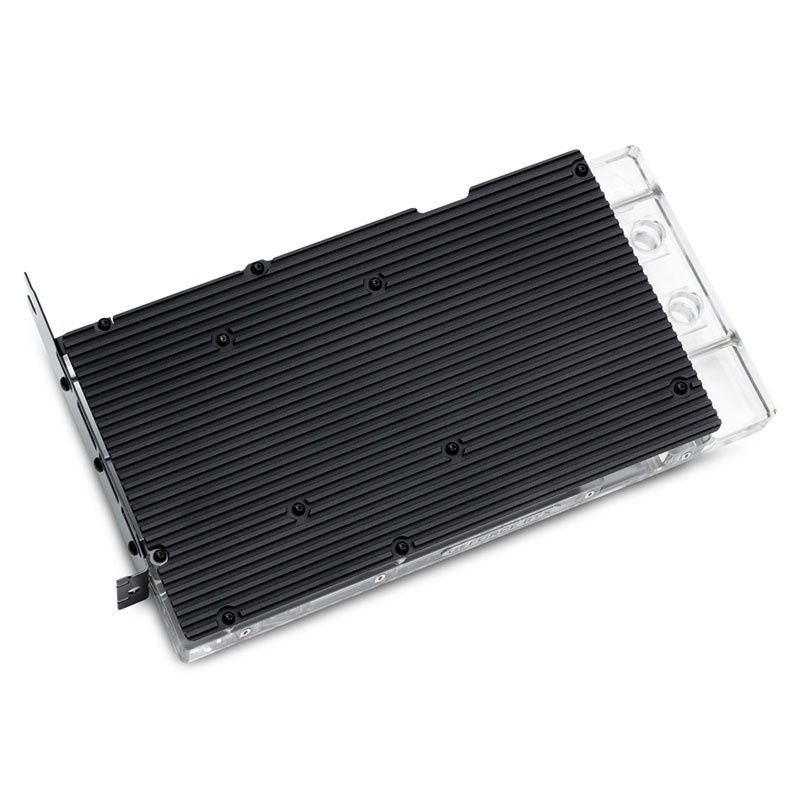

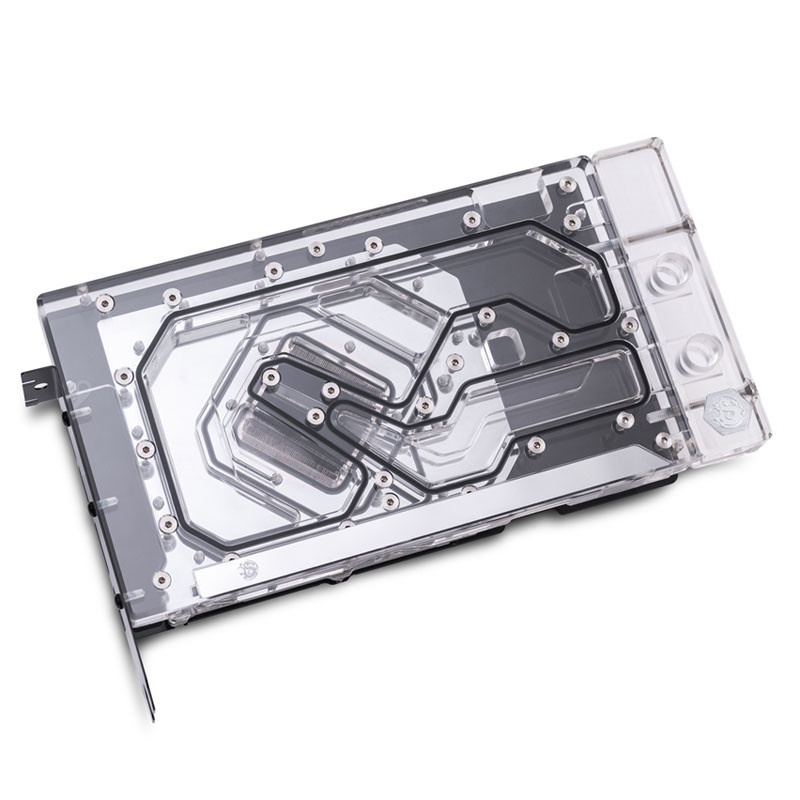

The cover is made of transparent acrylic glass, which allows a view of the coolant flowing through. The connection terminal has four holes (G1/4 inch thread). Due to the flat design of the cooler, it is also possible to connect several graphics cards in a network without any problems. The included backplate is made of black anodized aluminum and covers the back of the graphics card, contributing to the coolers elegant look. In addition, it increases the stability of the graphics card with built-in cooler.

The digitally addressable RGB LED lighting is connected to a mainboard or RGB controller via a 3-pin connector (5VDG). Compatibility with GIGABYTE RGB Fusion 2, ASRock Polychrome Sync, NVIDIA Aura Sync, MSI Mystic Light, Biostar Vivid LED DJ and Razer Chroma is also available.

Technical details:
– Dimensions: 234.5 x 119 x 34.2 mm (W x D x H)
– Material: nickel-plated and chrome-plated copper (base), acrylic (lid)
– silver
– Thread: 4x G1/4 inch
– Compatibility:
– NVIDIA GeForce RTX 4090 Founders Edition
– Scope of delivery:
– -Bitspower Orion NVIDIA GeForce RTX 4090 Founders Edition GPU Cooler
 thermal pads
– backplate
– mounting material

Note: Some coolers are delivered with a protective film on the bottom. This must be removed before installation and commissioning in any case. We assume no liability for damage caused by faulty or incorrect assembly and improper use!
