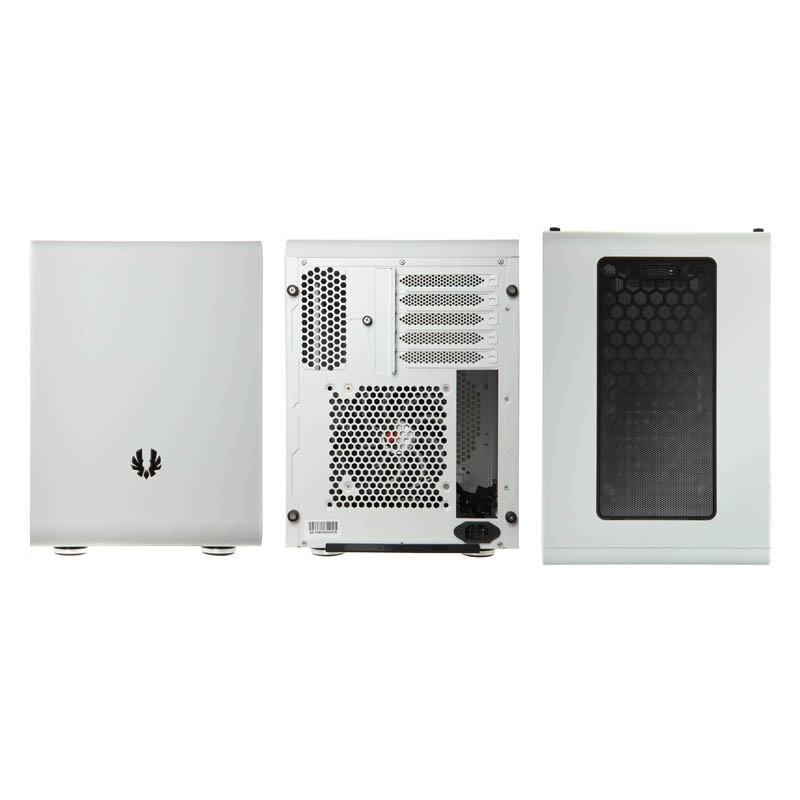

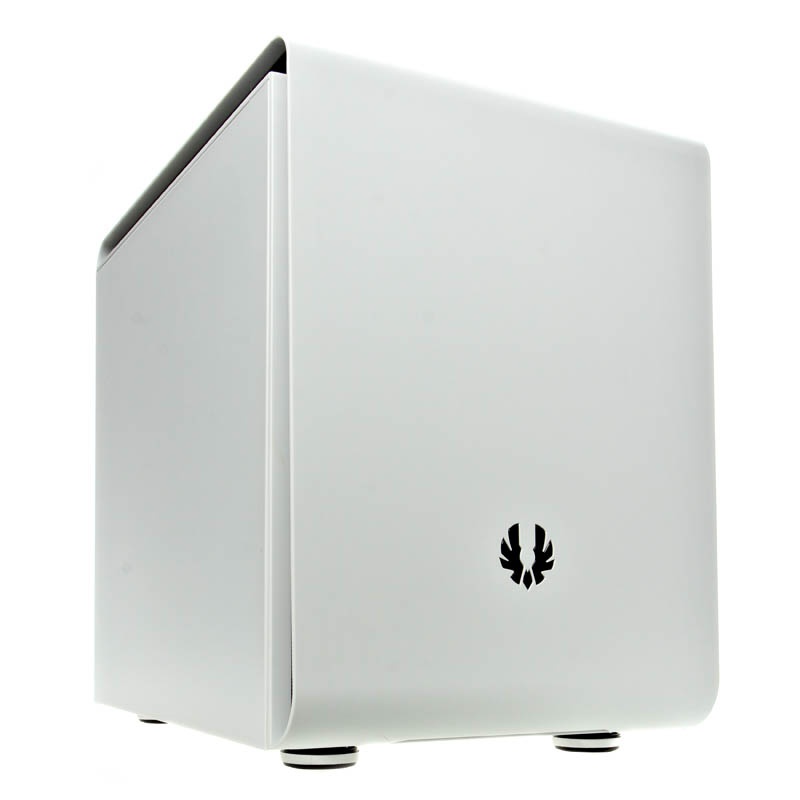

The design can be described as all in all cleaner , instead FyberFlex bows is the extravagance in the Phenoms – much more discreet , of course – the slightly tapered front end , with rounded top and bottom edges flatters the eye. Mesh grid imposes itself the Phenom cube the viewer not to , but is placed in the lateral air inlets of BitFenix through which an adequate supply is guaranteed.
Thus, in this white version of the rich white SofTouch surface of the front remains strong and will only send adorned by dark BitFenix logo in the bottom center . Black mesh on a larger scale , there are only then in the lid, where it allows the use of up to two optional 120 mm fans or a dual 240mm radiator. In the case of the Phenom for Micro-ATX , however, this must not be thicker than 27 mm and fits only when using a single graphics card into it.
The power supply is again positioned as unusual , namely an upright position directly aligned behind the front , with the fan to the front to suck in fresh air from there for the self-cooling . Warm exhaust air is then blown down under the Phenom . This airflow direction is generally provided by BitFenix : above cold air in, warm air out the back and down . Instead fans can be in soil but also two disks place .
So that the heated air of the power supply will not go up again rises above the ground, BitFenix provides the heat shield with a magnetically adherent plate which closes the bottom vents. However drives can also accommodate different about the Storage Rack , a horizontal beam in front of the right side panel. And even if you do not remove these , CPU coolers is still an area of up to 160 mm in the Phenom available – small enclosure , great design !
Technical details :
Dimensions: 250 x 330 x 374 mm (W x H x D)
Material: Steel , SofTouch
Color: White , Black
Form Factor: Micro-ATX, Mini-ITX
Fan total possible:
1x 140/120 mm (rear)
2x 120 mm (cover)
1x 230/200 mm / 2 x 120 mm ( bottom , instead of 2 x 3.5 inches)
Thereof pre-installed :
1x 120 mm (rear)
1x 120 mm ( bottom )
Filters: AC adapter / front cover
Drive Bays:
up to 5 x 3.5 inches ( internal)
up to 5 x 2.5 inches ( internal)
Power Supply: Standard ATX 1x ( optional, max 160 mm. )
Expansion Slots: 5
I / O panel :
2x USB 3.0 ( internal connector )
1x each Audio In / Out
Maximum video card length : 320 mm
Maximum CPU cooler height ( with drive tray ): 160 mm
