The Silent Base 600 is the second case of be quiet! and ties, as a slightly more compact version, on the success of the Silent Base 800th The black / silver midi tower merges perfect way to whisper-quiet operation, outstanding cooling performance, user-friendly design with plenty of room for high-end hardware. Manufacturers typically sets be quiet! also in this case for maximum noise reduction. Pre-installed insulating mats, controlled air flow, anti-vibration mounting elements and silent fans provide quiet operation.
The Silent Base 600 is the second case of be quiet! and ties, as a slightly more compact version, on the success of the Silent Base 800th The black / silver midi tower merges perfect way to whisper-quiet operation, outstanding cooling performance, user-friendly design with plenty of room for high-end hardware. Manufacturers typically sets be quiet! also in this case for maximum noise reduction. Pr...
The Silent Base 600 is the second case of be quiet! and ties, as a slightly more compact version, on the success of the Silent Base 800th The black / silver midi tower merges perfect way to whisper-quiet operation, outstanding cooling performance, user-friendly design with plenty of room for high-end hardware. Manufacturers typically sets be quiet! also in this case for maximum noise reduction. Pr...
No products found

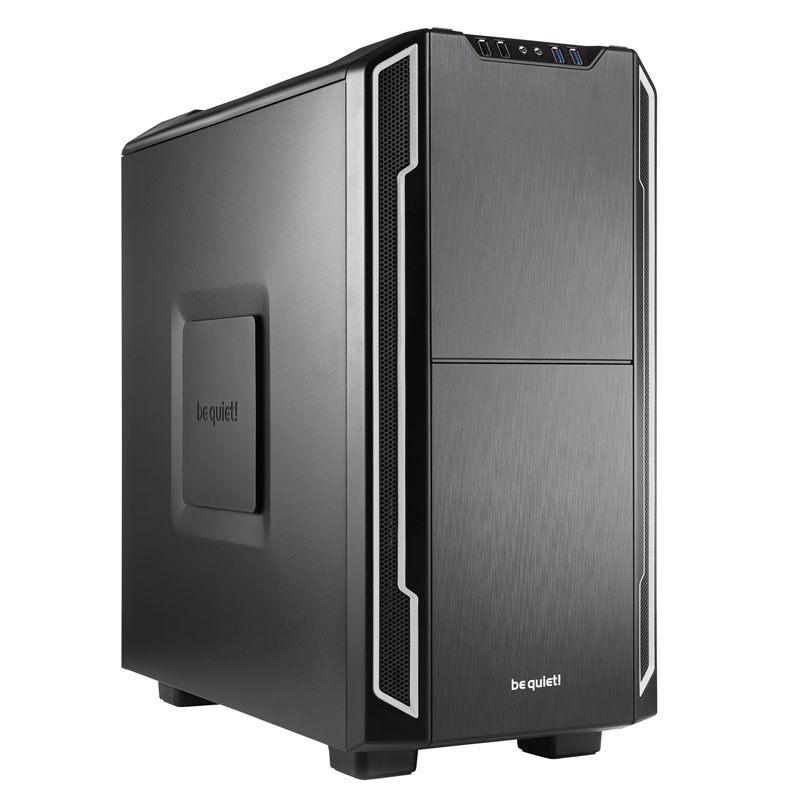

Visually, the Silent Base 600 also need not hide, the closed front is held flat and appear in a matt black design. It shall be bordered on each side by silver framed ventilation openings. Inside are more silvery accents. When you open the front door, the drive-panel come to the fore, covering the three slots for 5.25-inch drives.
In the housing interior is found beyond enough space for three 3.5-inch drives and three 2.5-inch drives. The 3.5-inch drives will be doing without tools installed in a hard disk cage is completely decoupled via silicone anti-vibration rails, so that the transmission of vibration is prevented in the cage.
The midi tower takes motherboards in the ATX form factor, Micro-ATX and Mini-ITX into itself. Anyone who wants to install a CPU cooler, can easily do thanks to the recessed cut-out in the side wall, however, should consider the maximum height of 167 mm. Graphics cards can be installed in the seven expansion slots and may be 290 mm long. If you build the hard drive cage, 400 mm long graphics cards can even be installed.
Two fans are preinstalled in Silent Base 600th A 140 mm large Pure-Wings-2 fan with 900 U / min at the front and a 120 mm large Pure-Wings-2 fan with 1200 rpm / min at the back. 3-stage fan control included! In addition, can be two 140s or 120s in the lid, install a 140-mm or 120-mm fan on the bottom and another 140s in the front. The adjustable openings of the side portion to enable the user to set the air flow kleinstufig or add another 120 mm fan if necessary. In addition, removable dust filter are integrated in the front, in the soil and in two side parts.
Through the targeted combination of unique air flow feed and sound absorbing materials on the front and the side parts of the Silent Base 600 a first-class housing, ideal for high-end gaming and silent systems. The innovative design of the side panels, the housing cover and the housing base ensures perfect air circulation and reduces turbulence, which ensures outstanding cooling performance with lower fan speed and for a whisper-quiet operation.
But even water cooling radiators can be installed instead of the fan. A 120mm / 140mm radiator can be installed, while a 120mm large radiator takes place on the back to the front. The housing cover may even carry a up to 240 mm radiator.
An excellent cable management is ensured by four silicone openings and plenty of space behind the motherboard wall. The power supply unit is installed below and may be with verbautem floor fan up to 160 mm long without this fan even up to 290 mm. The I / O panel located on the cover and has a large, elegant power switch, two audio jacks, two USB 3.0 and USB 2.0 ports.
Technical details:

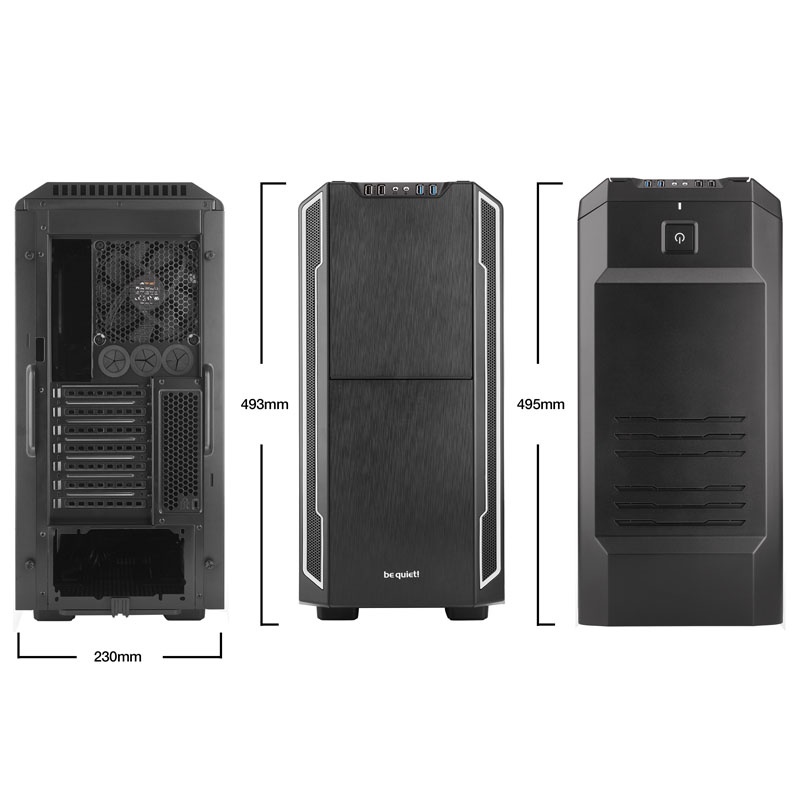

Dimensions: 495 x 230 x 493 mm (L x W x H)
Material: Steel, ABS plastic
Weight: 7.84 kg
Color: Black / Silver
Form Factor: ATX, Micro-ATX, Mini-ITX
Fan total possible:
2x 140 mm (front)
1x 120 mm (rear)
1x 120 mm (side panel)
2x 120/140 mm (cover)
1x 120/140 mm (bottom)
Of this pre-installed:
1x 140 mm (front side; Pure Wings 2, max 900 U / min, 17.1 dB (A), 55.8 m³ / h, 0.6 mm H20).
1x 120 mm (back side; Pure Wings 2, max 1.200 U / min, 16.8 dB (A), 41.7 m³ / h, 0.9 mm H20).
Radiator-Mountings:
1x 120/140 mm (front)
1x 120 mm (rear)
1x 120/140/240 mm (cover)
Filters: front, bottom, side panel (removable)
Drive Bays:
3x 5.25 inches (external, without tools)
3x 3.5 inch (internal; without tools)
3x 2.5 inch (internal; without tools)
Power Supply: 1x standard ATX (optional)
Extension slots: 7
I / O Panel:
2x USB 3.0 (internal connection)
2x USB 2.0 (internal connection)
1x per Audio In / Out
Maximum video card length: 290 mm (without any waiver)
Maximum video card length: 400 mm (without HDD cage)
Maximum power supply Length: 290 mm (without fan at the bottom) / 160 mm (with fan at the bottom)
Maximum CPU cooler height: 167 mm
