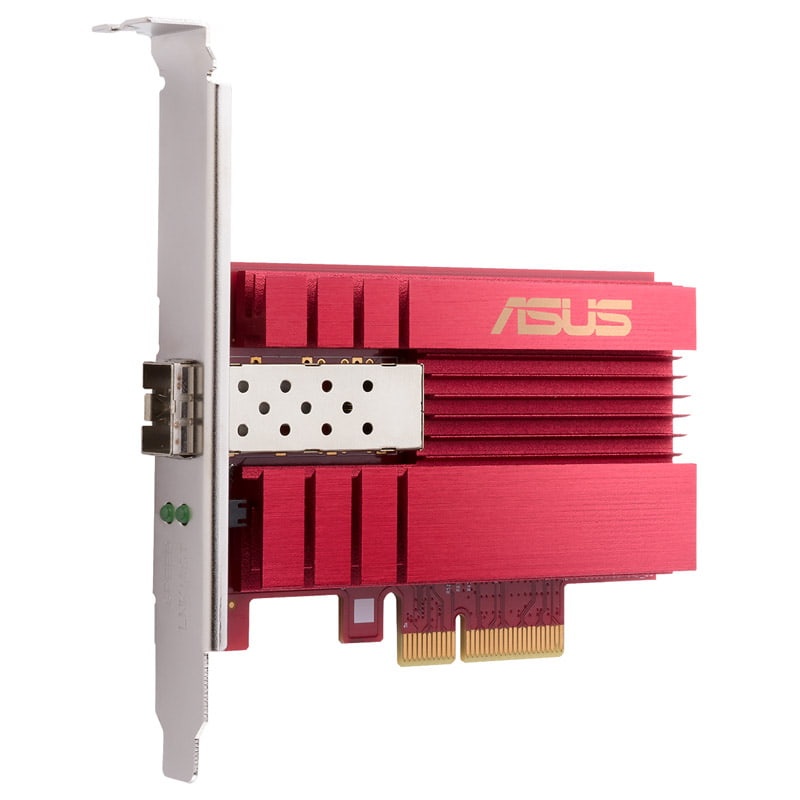

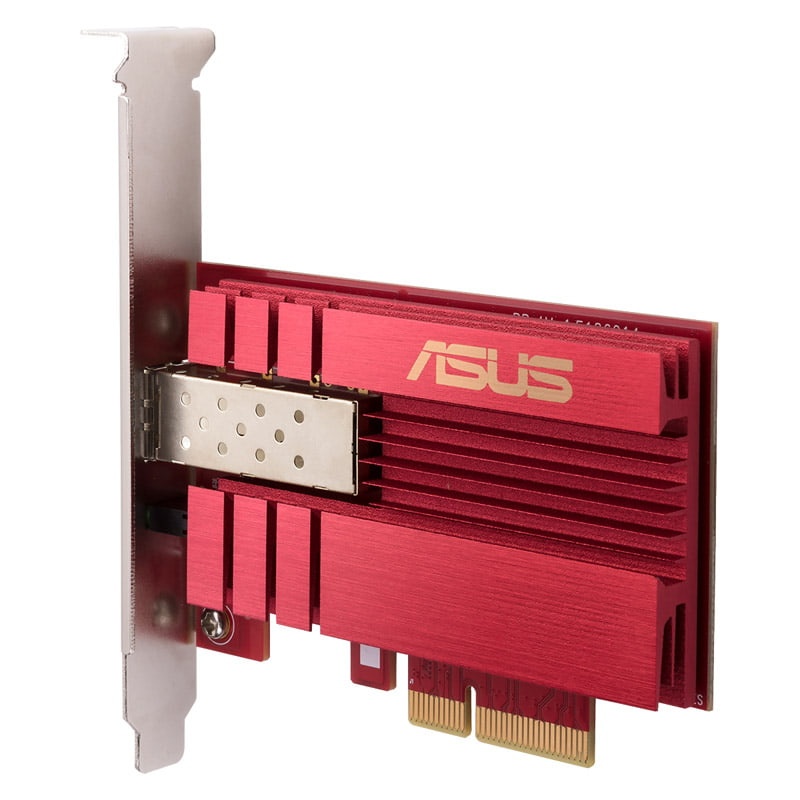

ASUS XG-C100F, 10G network card, SFP+ for fiber optic, PCIe

The network card uses the ultra-fast SFP+ interface for optical fiber transmissions. It offers extremely high transfer rates of up to ten gigabits per second and fits in a PCIe 3.0 x4 slot. The ASUS XG-C100F network adapter is also compatible with copper direct connections (DAC).

The high speed of the network card is based on the powerful Marvell/Aquantia AQtion AQC107 chipset. The passive heat sink allows the high performance level to be maintained permanently. In addition, the adapter is also well equipped – it offers, among other things, support for all current network standards including backwards compatibility and can prioritize important data packets using QoS. For installation in small cases, it is supplied with an additional and replaceable low-profile cover for HTPC cases and Mini-ITX systems.

Technical details:
– Dimensions: 113 x 120.5 x 21 mm (W x H x D)
– Weight: 110g
– Transmission standards: IEEE 802.3ae 10GBASE-LR/SR, IEEE 802.1p Priority Queuing, IEEE 802.1q VLAN Tagging
– Chipset: Marvell/Aquantia AQtion AQC107
– Slot: PCIe 3.0 x14
– Connections: 1x SFP+
– Special features: compatible with DAC cable, passive cooler, replaceable low-profile PCI slot cover
