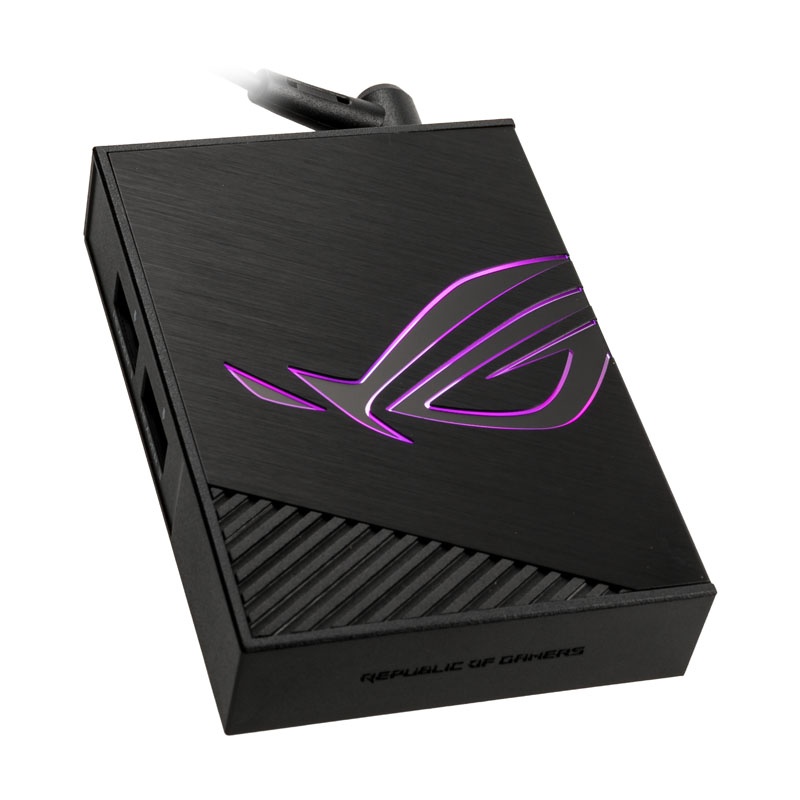

Product Information – ROG Aura Terminal RGB Addressable LED Controller – Black
The ASUS ROG Aura Terminal provides reactive RGB lighting behind the monitor for unprecedented immersion in games. When connected to the three included addressable LED strips, the integrated graphics processor analyzes the signals that the graphics card sends to the monitor and projects the appropriate lighting effects to the wall behind the monitor.
The features of the ASUS ROG Aura Terminal at a glance:
– RGB controller with graphics processor for digitally addressable LEDs
– Reactive RGB lighting to monitor content & illuminated logo
– Including 2x 30 cm & 1x 60 cm LED strips with addressable LEDs
– Compatible with ASUS Aura Sync & ROG Halo
– Easy installation with double-sided 3M adhesive tape
The features of the PHANTEKS Digital RGB Controller Hub in detail:
With digitally addressable RGB LEDs, significantly more complex lighting effects are possible. This feature is exploited by the ROG Aura Terminal and uses its discrete graphics processor to analyze the signals from the graphics card and visualize them via the connected LED strips. The included LED strips are taped to the back of the monitor, creating a halo effect on the wall behind.
In total, LED strips with a total of 210 LEDs or 4.2 meters in length can be connected to the four channels of the terminal. The Halo software also supports multiple Aura terminals and monitors. In addition, the lighting effects can be configured as usual via the ASUS Aura Sync software and synchronized with other RGB components. The terminal can be accommodated on a free 2.5-inch slot and has a RGB-illuminated logo. The terminal can be operated externally via a free USB port or internally via a free USB header.
Technical details:
– Dimensions: 100 x 70 x 20 mm (W x H x D)
– Minimum System Requirements: Windows 7 / dedicated GPU Halo does not support iGPUs
– Recommended system requirements: Windows 10 64-bit / Intel Core i5 6th Generation / AMD Ryzen 5, NVIDIA GeForce GTX 900 / AMD Radeon R9 or better
Connections:
– Input: USB 2.0
– Output: 4x 3-pin RGB (5VDG)
– Power supply: power supply pin plug
Delivery:
– 1x ROG Aura Terminal
– 1x 60 cm LED strip with 30 addressable LEDs
– 1x 30 cm LED strip with 15 addressable LEDs
– 3x RGB extension cable
– 1x 45W power supply
– 1x Molex to power pin adapter
– 1x USB type A to micro USB adapter
– 1x USB 9-pin header to micro-USB adapter
– 2x ROG cable ties
– 3x 3M double-sided adhesive tape
