The AMD Radeon R300-Series (codename ?? Pirate Islands ??) replaces the legacy of the R200-series (?? Volcanic Islands ??). From the economical, inexpensive entry-level graphics card up to the high-end cars with eight gigabytes of memory, AMD has made here based on the proven Graphics Core Next (CGN) architecture a broad portfolio to his feet, where for all claims an appropriate Map can be found.

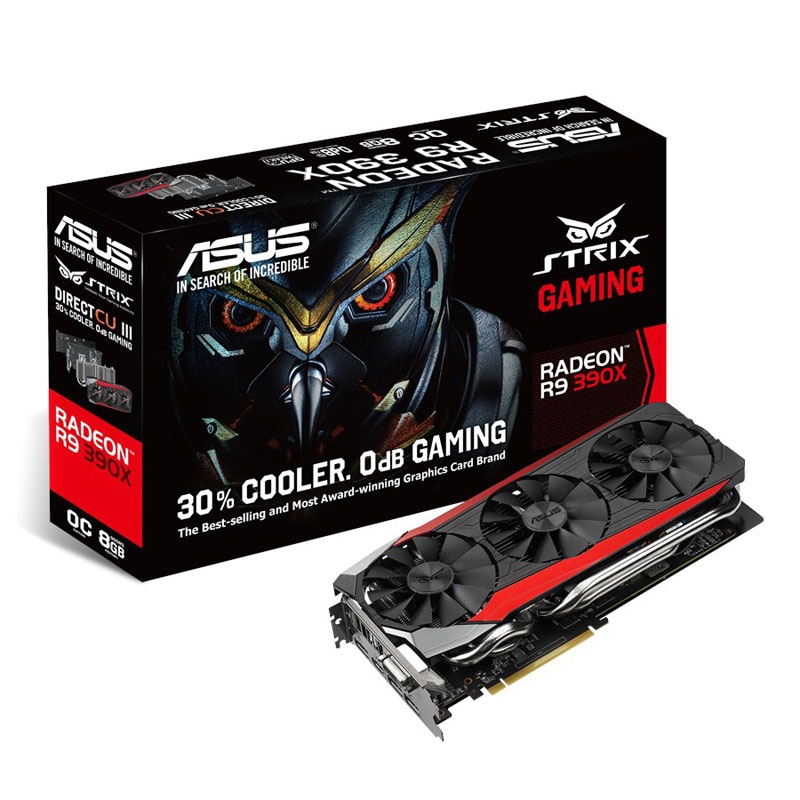

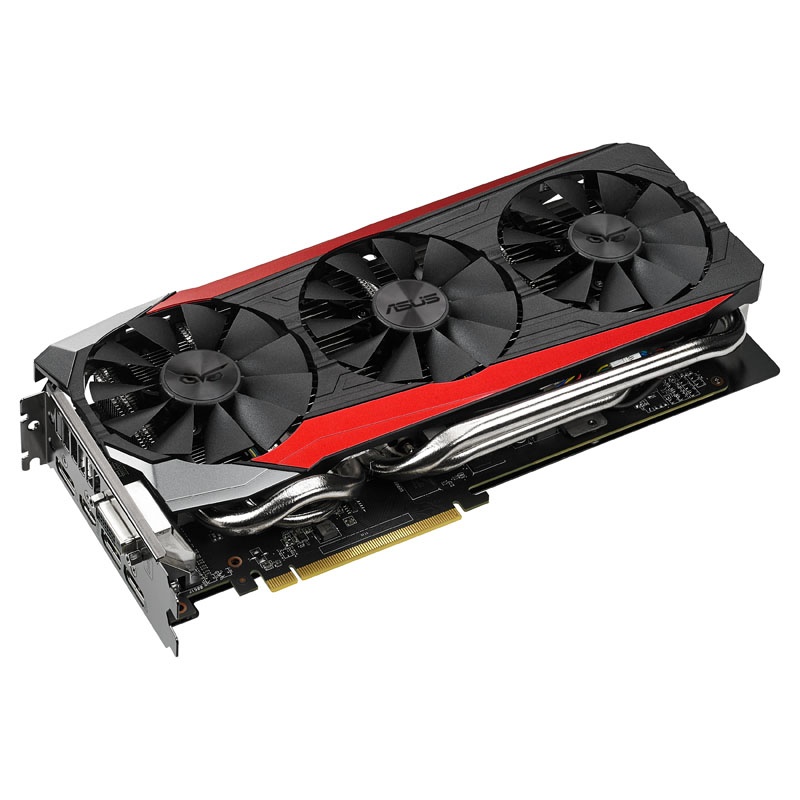

ASUS Radeon R9 390X STRIX DC3OC, 8192 MB GDDR5
The AMD Radeon R300-Series (codename ?? Pirate Islands ??) replaces the legacy of the R200-series (?? Volcanic Islands ??). From the economical, inexpensive entry-level graphics card up to the high-end cars with eight gigabytes of memory, AMD has made here based on the proven Graphics Core Next (CGN) architecture a broad portfolio to his feet, where for all claims an appropriate Map can be fou...
- SKU: GCAS-131
- MPN: 90YV08G0-M0NA00
- EAN: 4712900115833
- Warranty: 12 Months
The AMD Radeon R300-Series (codename ?? Pirate Islands ??) replaces the legacy of the R200-series (?? Volcanic Islands ??). From the economical, inexpensive entry-level graphics card up to the high-end cars with eight gigabytes of memory, AMD has made here based on the proven Graphics Core Next (CGN) architecture a broad portfolio to his feet, where for all claims an appropriate Map can be fou...
Featured products
No products found
The Radeon R9 390X is the top model of the series. It has the ?? Grenada XT ?? – GPU which a whopping 2,816 shader units provides that communicate via a 512-bit wide memory interface with extremely 8 gigabytes of GDDR5 memory. The clock of the GPU is the factory overclocked Radeon R9 390X STRIX DC3OC of ASUS at 1,070 MHz, the memory operates at 3000 (effective 6000) MHz – thus, the Radeon R9 390X its predecessor, the R9 290X, clearly in the shadows.
To spite of the enormous power that is possible thanks to this technical equipment to enable a cool and quiet, ASUS relies on the third generation of the popular, because very quiet and effective DirectCU cooler in the semi-passive ?? STRIX ?? version – ?? ?? DirectCU III. Several 10-mm copper heatpipes are – flattened at the appropriate place – directly on the GPU (= DirectCU = DC) and run the heat quickly from this from. Thus, the card is also very silent under full load, the more but idle – here particularly much power is saved, what ASUS at the cards of the STRIX ?? ?? – ?? means 0dB ?? Gaming Series – uses technology in idle and off entirely fan at low load. A chic black aluminum backplate to protect PCBs and for additional cooling completes the package.
The bandwidth for the exchange between video card and motherboard or CPU falls from high, because the R9 390X brings the latest interface standard PCI Express 3.0 with up, whereby – given a suitable residual Hardware – the bandwidth over PCIe 2.0 to 16 GB / s doubles. Even otherwise, all modern standards are supported – DirectX 12, AMDs own Mantle API, DisplayPort, FreeSync and Ultra-HD / 4K resolutions are of course for the R9 390X no strangers.
In addition, the card thanks CrossFireX and Eyefinity is very flexible when it comes to support for multi-GPU setups and multiple screens. These can be accessed via three DisplayPort connectors as well as one HDMI and DVI port. Power is provided via a 6-pin and one 8-pin PCIe connector for operating a power supply with at least 750 watts is recommended. In order to exploit the full potential of the card in the future, new drivers from AMD or ASUS should be downloaded and installed at regular intervals.
Technical Details:
Dimensions: 300 x 40 x 138 mm (W x H x D)
Height: 2 slot
GPU: AMD Radeon R9 390X (?? Grenada XT ??)
Production: 28 nm
GPU clock: 1,070 MHz (max. Boost)
Shader units: 2,816
Memory Size: 8192 MB
Memory clock: 3,000 (6,000) MHz
Type: GDDR5
Memory interface: 512-bit
Slot: PCIe x16 (PCIe / PCIe 2.x / PCIe 3.0)
Connections:
3 x DisplayPort 1.2a
1 x HDMI
1 x DVI-D (dual link)
Typical power consumption under load: 275 Watt
Power supply: 1 x 8-pin PCIe, 1 x 6-pin PCIe
Recommended power supply capacity: min. 750 Watt
Features: DirectX 12, OpenGL 4.5, OpenCL 2.1, Mantle, Eyefinity 2.0, CrossFireX, HD3D, True Audio, FreeSync
