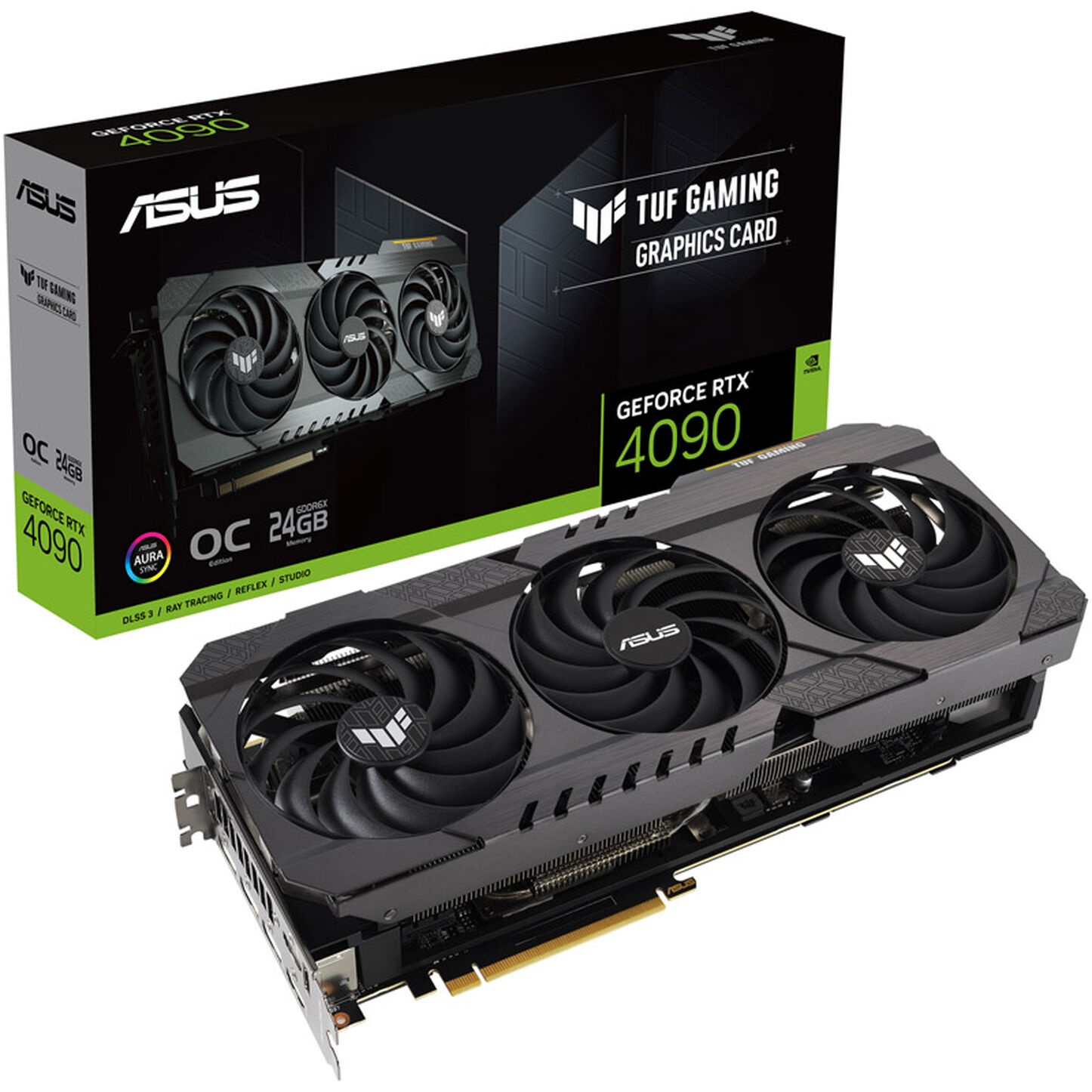

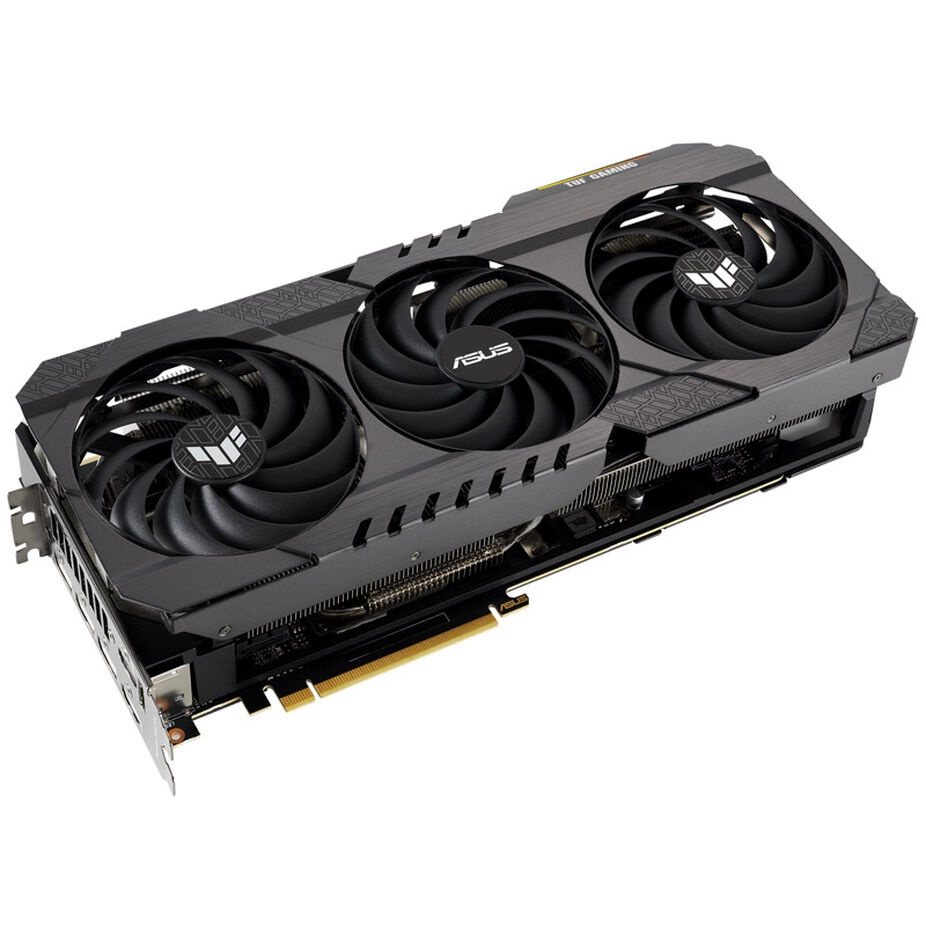

ASUS GeForce RTX 4090 TUF O24G OG, 24576MB GDDR6X

NVIDIA GeForce RTX 4090 Graphics Card, with 2.235/2.565 MHz Base/Boost Clock, 24 GB GDDR6X VRAM with 21 GHz RAM Clock (effective), Triple-Fan Cooler Design with RGB-LED Lighting

– Efficient triple fan cooler design with semi-passive cooling
– Subtle RGB LED lighting
– High base clock of the GPU: 2,235 MHz
– Enormous boost clock of the GPU: 2,565 MHz
– New generation graphics memory: 24 GB GDDR6X
– Extremely high memory clock: 2,625 MHz (effective 21,000 MHz)
– Wide memory interface of 384 bits
– Very large memory bandwidth of 1,008 GB/s
– Pure computing power: 16,384 CUDA cores (shaders)
– Additional PCIe power connectors: 1x 16-pin 12VHPWR
– Video outputs: 3x DP 1.4a, 1x HDMI 2.1

The ASUS GeForce RTX 4090 TUF O24G OG in detail
The ASUS GeForce RTX 4090 TUF O24G OG is equipped with a powerful graphics processor and particularly fast GDDR6X graphics memory. The gaming graphics card is suitable for gamers with the highest demands on graphics quality and performance. Compared to the RTX 3090 series, the computing speed of the rasterization optics and the ray tracing performance have been significantly increased. In addition, the graphics accelerators of the Ada generation support PCI Express 4.0. With a GeForce RTX 4090, extremely high frame rates in 4K and even smooth gaming in 8K are possible.

The high graphics performance of the ASUS GeForce RTX 4090 TUF O24G OG is ensured by the graphics processor with a maximum boost clock of 2,565 MHz and the 24 GB GDDR6X memory with an effective clock frequency of 21,000 MHz. The ASUS GeForce RTX 4090 TUF O24G OG is kept at low temperatures by the triple-fan design cooling system developed by ASUS. The graphics card is about 3 slots high and about 325.9 mm long.

Technical details
– Dimensions: 325.9 x 140 x 62.8 mm (L x W x H)
– Height: 3-slot
– GPU: GeForce RTX 4090
– Chip: AD102-300
– Manufacturing: 4 nm
– GPU clock: 2,235 MHz
– Boost clock Gaming Mode: 2,565 MHz
– Boost clock Extreme Mode: 2,595 MHz
– Shader units (CUDA cores): 16,384
– Memory size: 24,576 MB
– Memory clock: 2,625 (21,000 effective) MHz
– Type: GDDR6X
– Memory connection: 384 bit
– Memory bandwidth: 1,008 GB/s
Slot: PCIe x16 (PCIe/PCIe 2.x/PCIe 3.0/PCIe 4.0) Connections: 3x DisplayPort 1.4a 1x HDMI 2.1a Power supply: 1x 16-pin PCIe 5.0 (12VHPWR) TDP: 450 watts Recommended power supply power: min. 850 watts Features: DirectX 12 Ultimate, OpenGL 4.6, Vulkan RT API, VR Ready, G-SYNC HDR, NVIDIA GPU Boost 4.0, HDCP 2 .3, NVIDIA Surround, 3D Vision, Tessellation, PhysX, DLSS 3, CUDA, NVENC Encoder 8, NVENC Decoder 5, AV1, Adaptive Vertical Sync, VXGI, Super Resolution, 4K Ultra HD Support, SMP, NVIDIA ShadowPlay, Real-Time Ray Tracing, Dual BIOS

– Color
– Main color
– Black
– Secondary color
– Gray
– Dimensions
– Length
– 325.9 mm
– Width
– 140 mm
– Height
– 62.8 mm
– Graphics card
– GPU series
– RTX 40 series, NVIDIA GeForce RTX Gaming
– Graphics card
– NVIDIA GeForce RTX 4090
– Clock rates
– Max. GPU clock (base)
– 2235 MHz
– Max. GPU clock (boost)
– 2565 MHz
– Max. memory clock
– 21000 MHz
– Cooling
– Number of fans
– 3
– Water cooling
– Water cooling
– No
– Internal connections
– Required power connections
– 16-pin PCIe 5.0 – 12VHPWR (1x)
– External connections
– Display connections
– Display Port, Display Port (2x), Display Port (3x), HDMI
