- Efficient triple fan cooler design with semi-passive cooling
- Extensive RGB LED lighting
- High base clock of the GPU: 2,230 MHz
- Enormous boost clock of the GPU: 2,610 MHz
- New generation graphics memory: 24 GB GDDR6X
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace architecture and ray tracing
- Extremely high memory clock: 2,625 MHz (effective 21,000 MHz)
- Wide memory interface of 384 bits
- Very large memory bandwidth of 1,008 GB/s
- Pure computing power: 16,384 CUDA cores (shaders)
- Additional PCIe power connectors: 1x 16-pin 12VHPWR
- Video outputs: 3x DP 1.4a, 2x HDMI 2.1
- Efficient triple fan cooler design with semi-passive cooling- Extensive RGB LED lighting- High base clock of the GPU: 2,230 MHz- Enormous boost clock of the GPU: 2,610 MHz- New generation graphics memory: 24 GB GDDR6X- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace architecture and ray tracing- Extremely high memory clock: 2,625 MHz (effective 21,000 MHz)- Wide memory interface of 384 bi...
- Efficient triple fan cooler design with semi-passive cooling- Extensive RGB LED lighting- High base clock of the GPU: 2,230 MHz- Enormous boost clock of the GPU: 2,610 MHz- New generation graphics memory: 24 GB GDDR6X- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace architecture and ray tracing- Extremely high memory clock: 2,625 MHz (effective 21,000 MHz)- Wide memory interface of 384 bi...
No products found
– Efficient triple fan cooler design with semi-passive cooling
– Extensive RGB LED lighting
– High base clock of the GPU: 2,230 MHz
– Enormous boost clock of the GPU: 2,610 MHz
– New generation graphics memory: 24 GB GDDR6X
– Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace architecture and ray tracing
– Extremely high memory clock: 2,625 MHz (effective 21,000 MHz)
– Wide memory interface of 384 bits
– Very large memory bandwidth of 1,008 GB/s
– Pure computing power: 16,384 CUDA cores (shaders)
– Additional PCIe power connectors: 1x 16-pin 12VHPWR
– Video outputs: 3x DP 1.4a, 2x HDMI 2.1

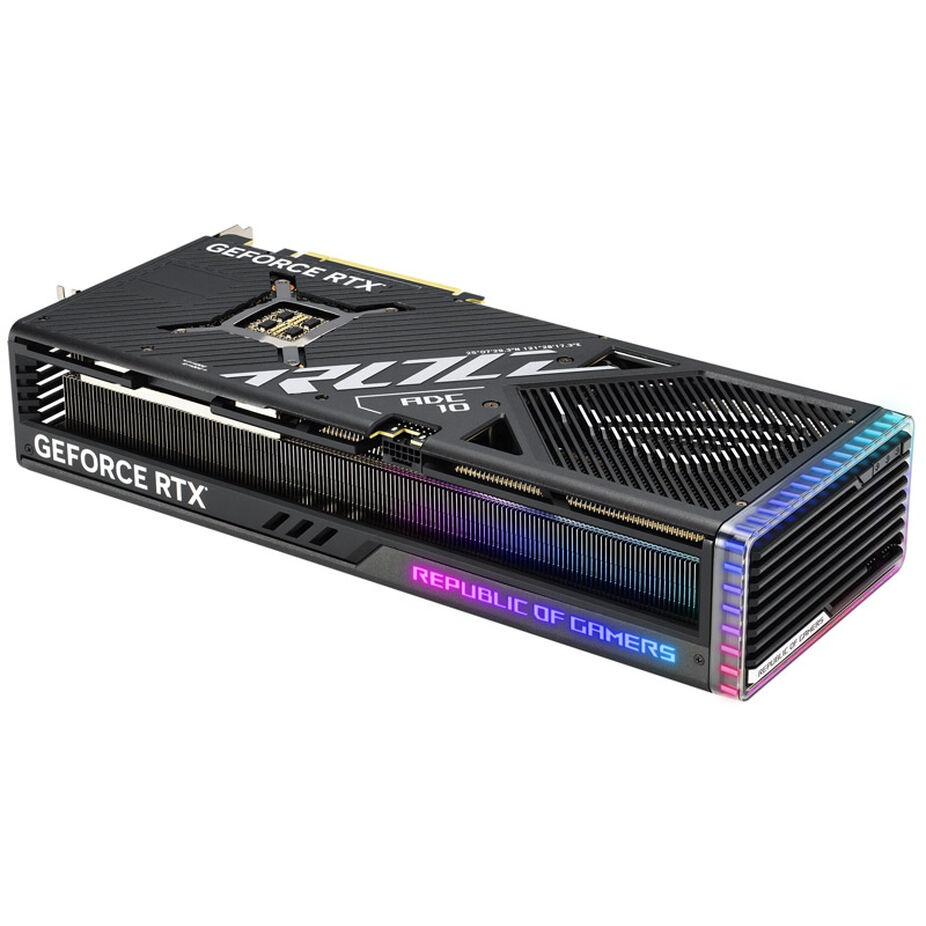

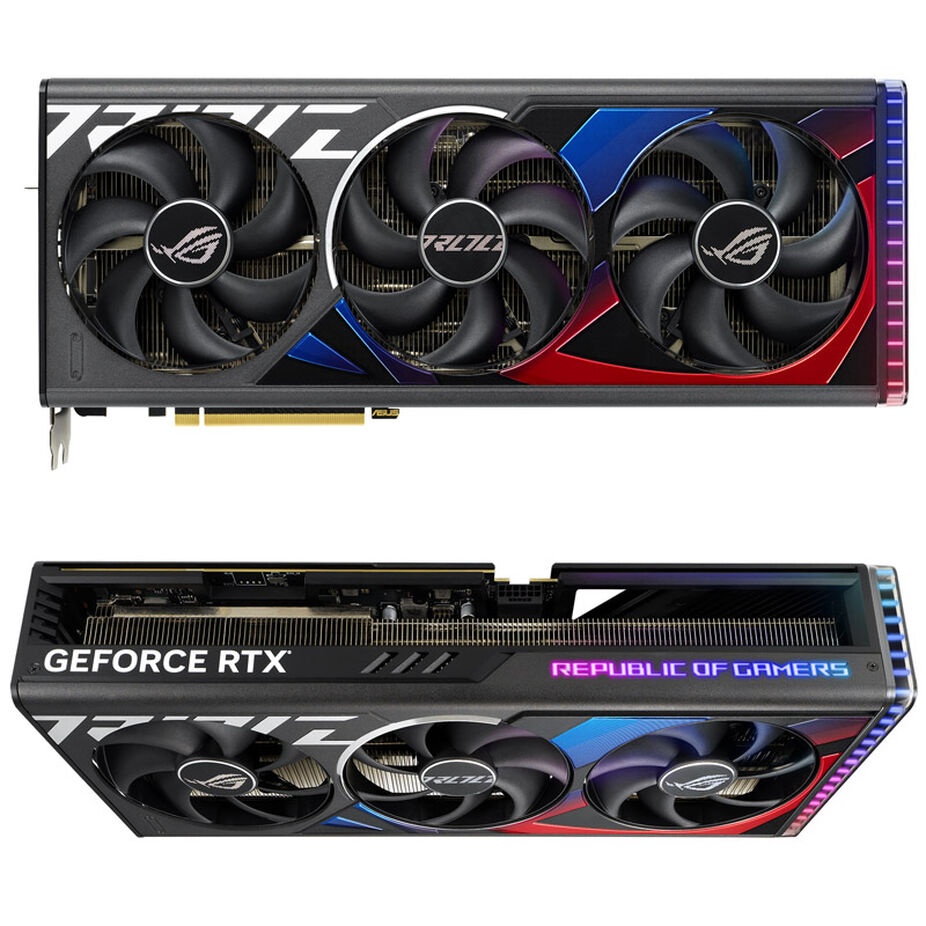

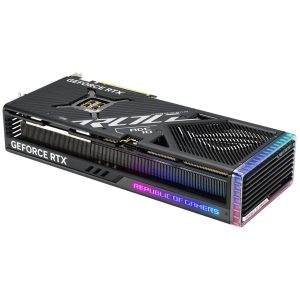

The ASUS GeForce RTX 4090 ROG Strix O24G in detail
The ASUS GeForce RTX 4090 ROG Strix O24G is equipped with a powerful graphics processor and particularly fast GDDR6X graphics memory. The gaming graphics card is suitable for gamers with the highest demands on graphics quality and performance. Compared to the RTX 3090 series, the computing speed of the rasterization optics and the ray tracing performance have been significantly increased. In addition, the graphics accelerators of the Ada generation support PCI Express 4.0. With a GeForce RTX 4090, extremely high frame rates in 4K and even smooth gaming in 8K are possible.
The high graphics performance of the ASUS GeForce RTX 4090 ROG Strix O24G is ensured by the graphics processor with a boost clock of 2,610 MHz and the 24 GB GDDR6X memory with an effective clock frequency of 21,000 MHz. The ASUS GeForce RTX 4090 ROG Strix O24G is kept at low temperatures by the triple-fan design cooling system developed by ASUS. The graphics card is 3.5 slots high and about 35.7 cm long.
Technical details
– Dimensions: 357.6 x 149.3 x 70 mm (L x W x H)
– Height: 3.5 slot
– GPU: GeForce RTX 4090
– Chip: AD102-300
– Manufacturing: 4 nm
– GPU clock: 2,230 MHz
– Boost clock: 2,610 MHz (Gaming Mode)
– Boost clock: 2,640 MHz (OC Mode)
– Shader units (CUDA cores): 16,384
– Memory size: 24,576 MB
– Memory clock: 2,625 (21,000 effective) MHz
– Type: GDDR6X
– Memory connection: 384 bit
– Memory bandwidth: 1,008 GB/s
Slot: PCIe x16 (PCIe/PCIe 2.x/PCIe 3.0/PCIe 4.0) Connections: 3x DisplayPort 1.4a 2x HDMI 2.1a Power supply: 1x 12-pin PCIe 5.0 (12VHPWR) TDP: 450 watts Recommended power supply power: min. 1,000 watts Features: DirectX 12 Ultimate, OpenGL 4.6, Vulkan RT API, VR Ready, G-SYNC HDR, NVIDIA GPU. Boost 4.0, HDCP 2.3, NVIDIA Surround, 3D Vision, Tessellation, PhysX, DLSS 3, CUDA, NVENC Encoder 8, NVENC Decoder 5, AV1, Adaptive Vertical Sync, VXGI, Super Resolution, 4K Ultra HD Support, SMP, NVIDIA ShadowPlay, Real-Time Ray Tracing, Dual BIOS
