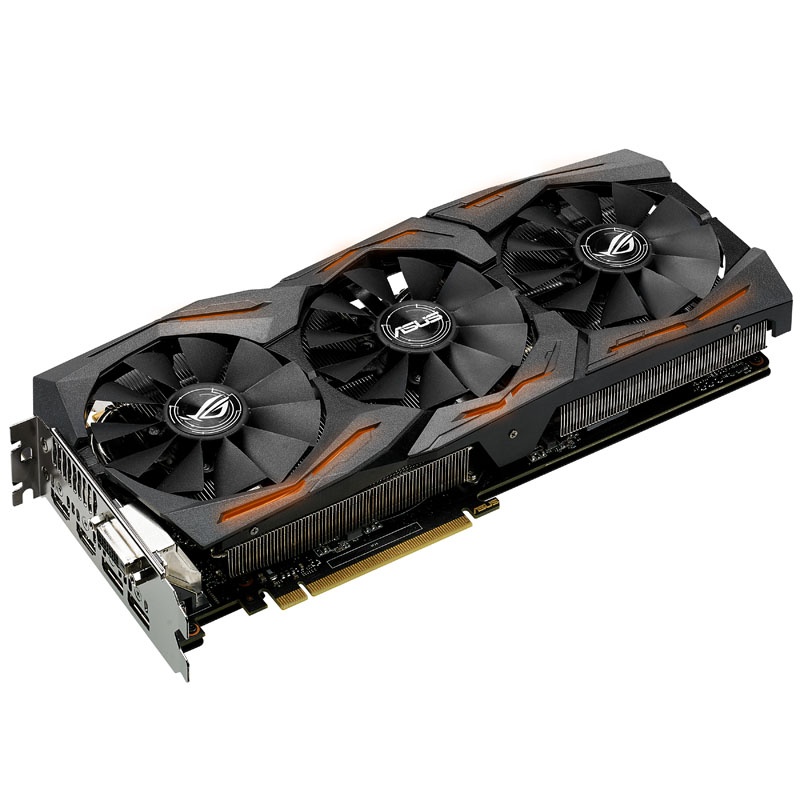

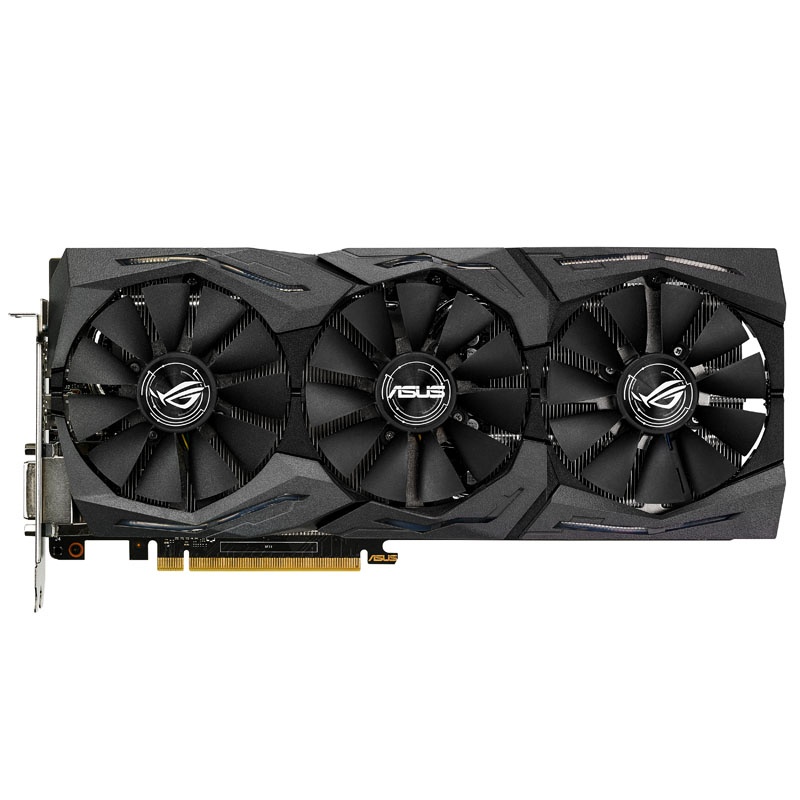

The features of the ASUS GeForce GTX 1070 STRIX 8G Gaming Overview
Semi-passive STRIX cooler with Aura LED lighting
Base clock of the GPU: 1531 MHz
Boost clock of the GPU: 1721 MHz
Fast Memory clock: 4,004 MHz (8,008 MHz effective)
As an additional power connector: 1x 8 pin
Semi-passive Strix cooler, Aura RGB LEDs & OC mode
The ASUS GeForce GTX 1070 STRIX 8G Gaming has a base clock of 1,506 MHz. With GPU Boost 3.0 this can be increased if necessary to a boost clock of 1,683 MHz. About the GPU Tweak II software can change the ASUS GeForce GTX 1070 STRIX O8G Gaming in the OC mode. The OC mode increases the base clock to 1531 MHz and the boost clock at 1.721 MHz. The memory clock is 4,004 MHz (8,008 MHz effective) MHz. For the cooling of the graphics card is a semi-passive cooling design comes in STRIX version for use.
When DirectCU III cooler design of ASUS copper heatpipes are directly on the graphics chip. The remitted to aluminum fins heat is swirled by three fans. If the graphics chip is not fully utilized and require less cooling, the fan will be turned down or switched off completely. This allows for a silent operation of the graphics card.
About two 4-pin fan connectors up to two PWM case fans can be connected to the graphics card. Thereby, it is possible to adjust the rotational speed of the fan housing PWM to the temperature of the pixel accelerator. Because the graphics chip while gambling in general, more heat generated as the CPU can be ensured by this solution a better venting of the housing.
The gray-black radiator cover is provided with RGB LED lighting. Together with the RGB-lit Strix logo on the backplate the Strix graphics card is stylish staged. The control of RGB LEDs on the Aura lighting technology. These can also be found on various ASUS motherboards. Some of these motherboards even have connections for RGB LED Strips, which then ensure in accordance with the motherboard and graphics card for lighting!
GeForce GTX 1070: gaming power for VR and 4K!
The 8 GB of video memory, the GeForce GTX 1070 are connected via a 256-bit memory interface to the GPU. The GP104 graphics chip GTX 1070 has 1,920 CUDA cores and the computing power of the GTX 1070 is 6.5 TFLOPS. This is the GeForce GTX 1070 in terms of computing power slightly above the GeForce GTX Titan X, which the Maxwell GPU series flagship!
The GTX-1070-series graphics cards support DirectX 12 and the latest gaming technologies, including NVIDIA GameWorks, Warp, stereo X, VR-Audio, PhysX and SMP (Simultaneous Multi-Projection). The latter is supported in version 4.0 and provides mainly for VR, Curved displays and multi-display setups great benefits.
Especially while gambling in the Virtual Reality (VR) benefit gamers of the new technology. With SMP 4.0 Total 16 viewports and two viewports can be rendered in a single pass. By utilizing multiple viewports the rendered image also comes out with a lower number of calculated pixels, which increases the energy in VR mode improved enormously.
The GeForce GTX 1070 has an image transfer of 4K / Ultra HD resolutions at 60 Hz via two DisplayPort 1.4 and HDMI 2.0b ports, the latter feature HDCP 2.2, and thus send encrypted signals and receive ( 4K Blu-Ray / 4K streams). Alternatively, has the GTX 1070 a DVI-D (Dual Link) output.
In order to exploit the full potential of the card in the future, new drivers from NVIDIA or ASUS should be downloaded and installed at regular intervals.
Graphics Card Exchange without waiting for Caseking!
During the warranty period of 2 years from receipt of the goods are at Caseking of retail entitled complaining graphics cards – that is, those with a confirmed defect of us – all brands listed below directly exchanged against virgin (if in stock). A submission of the defective goods to the manufacturer and related longer waiting times thus completely eliminated! If the graphics card to be replaced is no longer in stock or available, so a credit issued by us. Then can thus be freely selected from our range an alternative graphics card. Here incurred extras are easily been settled and any resulting excess payment shall be refunded by us.
What do I do with failures of my graphics card? -> Graphics Card immediate replacement if defective (click here)
Brands: ASUS, Club 3D, EVGA, Gigabyte, Inno3D, Palit, PNY, PowerColor, Sapphire, VTX3D, XFX, ZOTAC & King Mod
Free games for NVIDIA GeForce GTX gaming graphics cards:
Each Purchased at Caseking games graphics card will be the associated Coupon codes in the latest game bundles. Not eligible products are not accompanied by vouchers. All promotions are limited and only valid while stocks last or will be finished by the offer. The decision is final. Subsequently all currently active coupon actions are listed by NVIDIA:
Currently there are currently no active games Bundles for NVIDIA GeForce GTX graphics cards
Technical details:
Dimensions: 298 x 134 mm (W x D)
Height: 2-Slot
GPU: NVIDIA GeForce GTX 1070
Chip: GP104
Production: 16 nm
GPU clock (Gaming Mode): 1506 MHz
Boost Clock (Gaming Mode): 1683 MHz
GPU clock (OC-mode): 1531 MHz
Boost Clock (OC-mode): 1721 MHz
Shader units (CUDA cores): 1,920
Memory Size: 8192 MB
Memory clock: 4,004 (8,008) MHz
Type: GDDR5
Memory interface: 256-bit
Memory Bandwidth: 256GB / s
Slot: PCIe x16 (PCIe / PCIe 2.x / PCIe 3.0)
Connections:
2x DisplayPort 1.4
2x HDMI 2.0b
1x DVI-D (dual link)
Power supply: 1x 8-pin PCIe
Recommended power supply capacity: min. 500 Watt
Features: DirectX 12, OpenGL 4.5, VR Ready, SLI Ready, NVIDIA Ansel, G-Sync, Game Stream, GPU Boost 3.0, HDCP 2.2, NVIDIA Surround, 3D Vision, Tessellation, PhysX, CUDA, NVENC, Adaptive Vertical Sync, VXGI, Super resolution 4K Ultra HD support, SMP, NVIDIA Shadowplay
