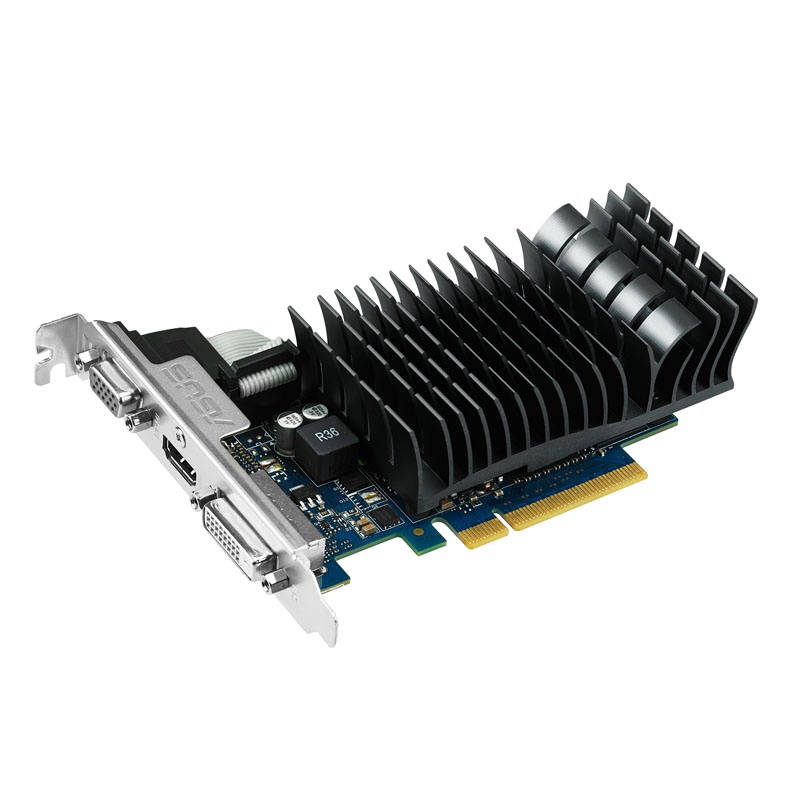

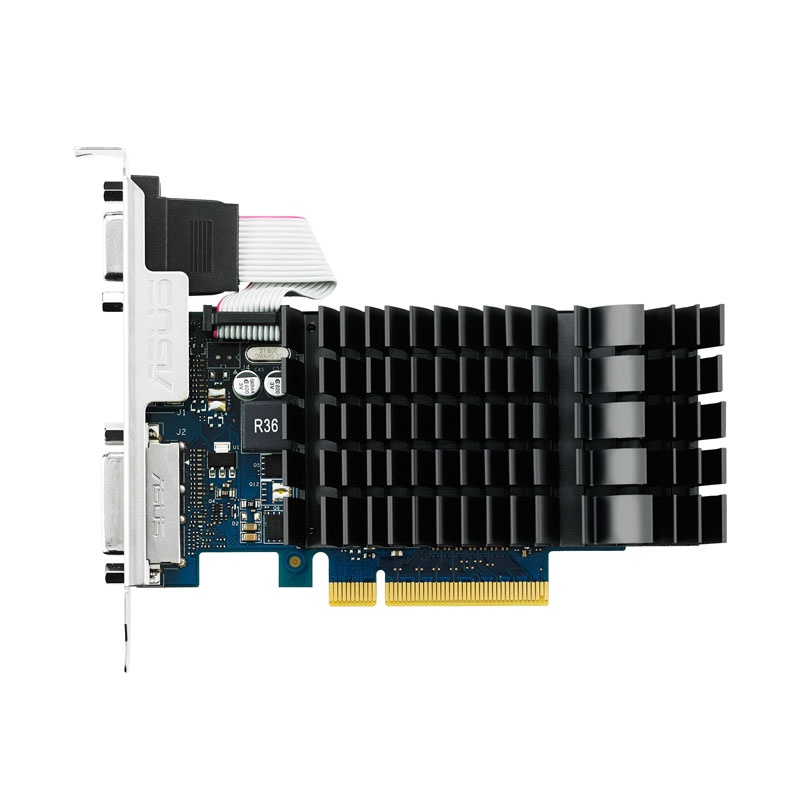

ASUS is one of the four largest motherboard manufacturers in the world. But in addition to the distribution of the main boards and PCBs of any kind, the Taiwanese company makes a big sales with laptops, complete systems and graphics cards - including with the refreshed GeForce 600 series from NVIDIA, which now also with modern Kepler instead of the older Fermi GPUs is available.
The here offered GeForce GT 630 the Kepler generation with completely fanless silent cooling is ideal for use in office machines and small HTPCs. With 902 MHz clock frequency of the passively cooled GK208 chip and the 800 (effective 1600) MHz GDDR3 memory with a capacity of 1024 MB ASUS GeForce GT 630 enables the efficient functioning or the liquid-frame playback of multimedia data.
ASUS is one of the four largest motherboard manufacturers in the world. But in addition to the distribution of the main boards and PCBs of any kind, the Taiwanese company makes a big sales with laptops, complete systems and graphics cards - including with the refreshed GeForce 600 series from NVIDIA, which now also with modern Kepler instead of the older Fermi GPUs is available.
The here offered...
ASUS is one of the four largest motherboard manufacturers in the world. But in addition to the distribution of the main boards and PCBs of any kind, the Taiwanese company makes a big sales with laptops, complete systems and graphics cards - including with the refreshed GeForce 600 series from NVIDIA, which now also with modern Kepler instead of the older Fermi GPUs is available.
The here offered...
No products found
The card does not consume much power, also requires therefore no additional PCI connector from the power decreases with its 13.7 cm length a little space in the housing, so fits in compact cases. In addition, the model offered here can also be used as an LP card for mini-case using an optional low-profile slot bracket.
With support for DirectX 11, Shader Model 5.0, OpenGL 4.4, CUDA, HDCP and UEFI BIOS, the GeForce GT 630 can handle almost every modern video codec and plays film material of various kinds from liquid. As connections HDMI, DVI and VGA are available and give the user therefore great flexibility.
In order to realize the full Potentzal the map in the future, new drivers from NVIDIA or ASUS should be downloaded and installed at regular intervals.
Technical Details:
Dimensions: 137 x 30 x 69 mm (W x H x D)
Height: 2-Slot
GPU: NVIDIA GeForce GT 630
Type: Kepler GK208
Manufacturing process: 28 nm
GPU Clock: 902 MHz
Shader units (CUDA cores): 384
Memory Size: 1024 MB
Memory clock: 800 (1600) MHz
Type: GDDR3
Memory interface: 64 bit
Slot: PCIe x16 (PCIe, PCIe 2.x, PCIe 3.0)
connections:
1x HDMI 1.4a
1x DVI-D (Dual-Link)
1x VGA (D-Sub)
Power supply: only about PCI-Express slot
Features: DirectX 11, Shader Model 5.0, OpenGL 4.4, PhysX, CUDA, HDCP, UEFI BIOS Support, passive cooling, low-profile capable (with optional LP-panel)
Compatibility (operating system): Windows 8, 7, Vista
