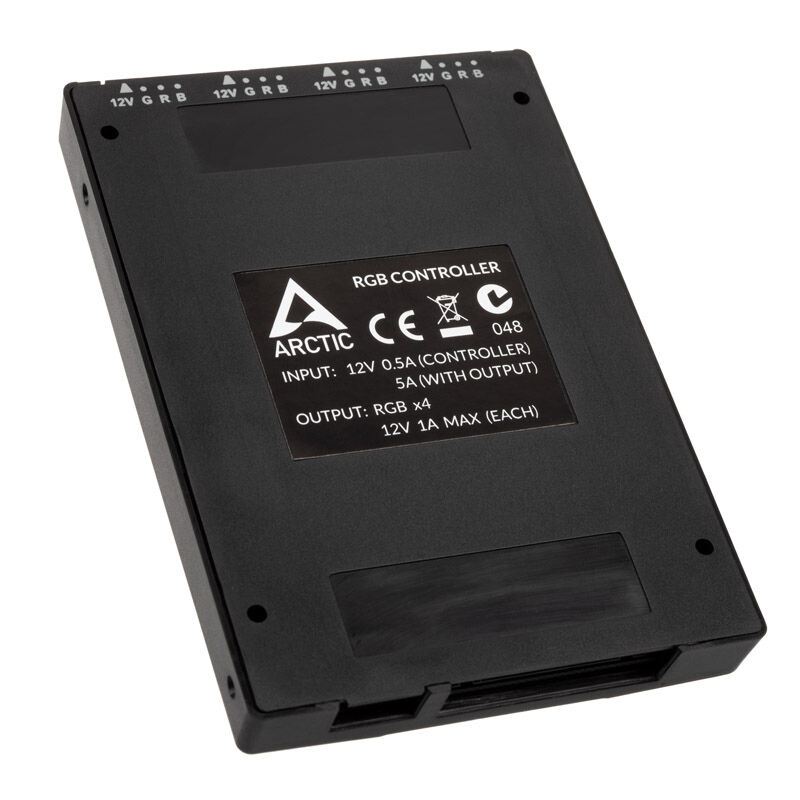

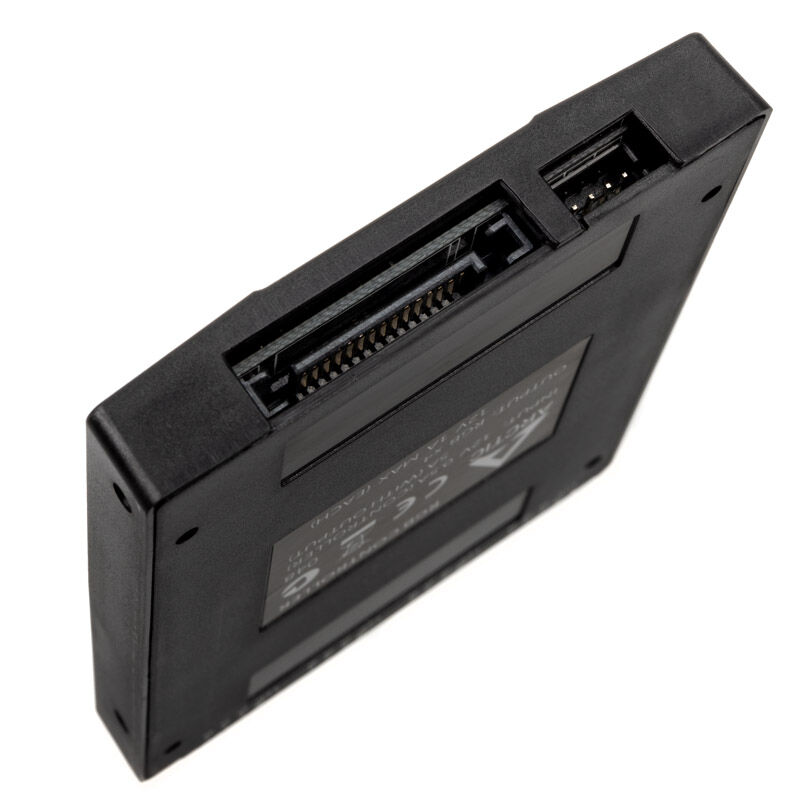

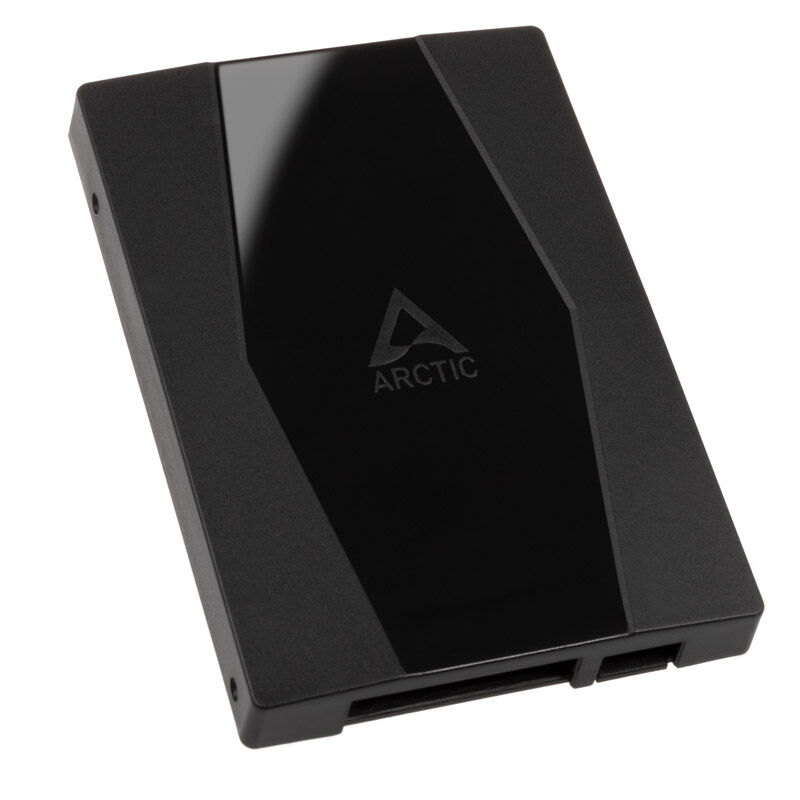

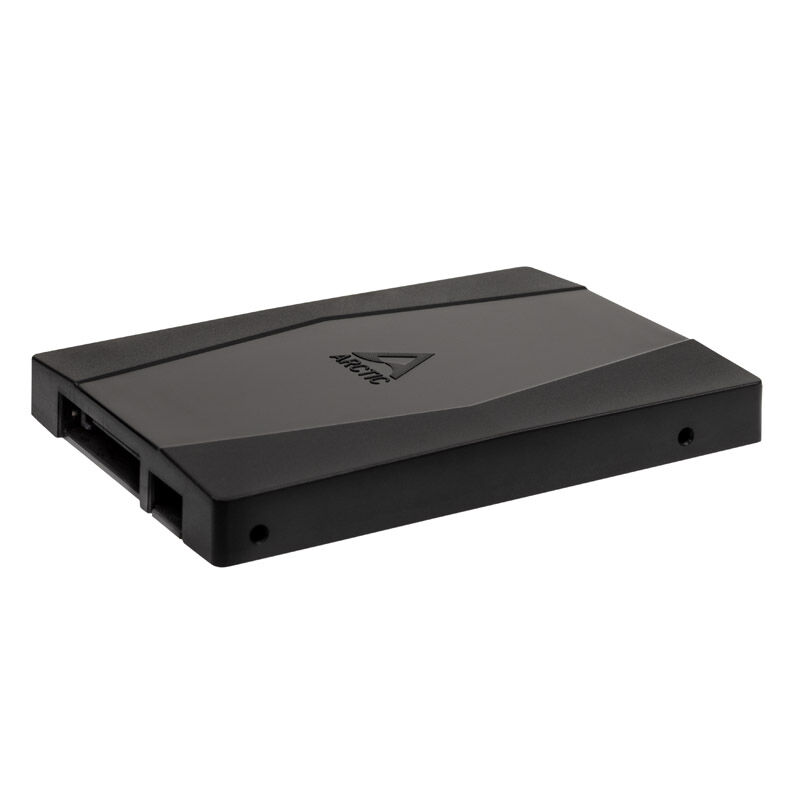

The ARCTIC RGB controller is a software-controlled RGB controller.
No products found
The highlight of the RGB controller is that it also works on mainboards without RGB LED slots. Connected to the power supply unit and the mainboard, it serves as a practical control center for up to four 4-pin RGB elements. To do this, it is simply connected to an internal USB 2.0 slot. The lighting is controlled via the ARCTIC RGB master software.
The features of the ARCTIC RGB controller at a glance:
Software-controlled RGB-LED controller from ARCTIC
For mainboards without RGB headers
Four 4-pin connectors (12VGRB, 12V)
Connection to an internal USB 2.0 port on the mainboard
Control ARCTIC RGB master software
Assembly with screws, double-sided adhesive or Velcro tape
The features of the ARCTIC RGB controller in detail
The ARCTIC RGB controller has four 4-pin channels for RGB elements. The controller is connected to the mainboard via an internal USB header. This means that mainboards without a dedicated RGB header can also be used to control effective and colorful RGB lighting. For this purpose, the manufacturer provides the ARCTIC RGB master software on its website.
The ARCTIC RGB controller can be installed in a slot for 2.5-inch data carriers. Matching screws are included. The scope of delivery also includes Velcro and double-sided adhesive tape with which the controller can be placed anywhere in the housing. Power is supplied via the SATA cable via the power pack.
Technical details:
– Dimensions: 100 x 12 x 70 mm (W x H x D)
– Weight: 60 g
– Material: Plastic
– Color: Black
– Connections:
– Input: USB 2.0 (5-pin / Micro-USB, via header on the mainboard)

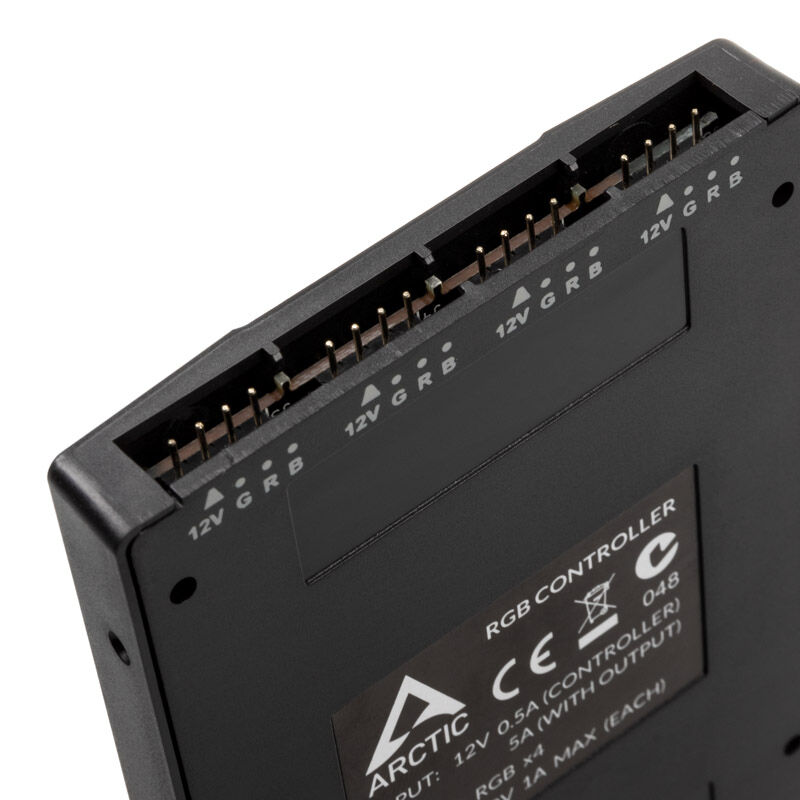

– Output: 4x 4-pin RGB headers (12VGRB, 12V)
– Power supply: SATA power

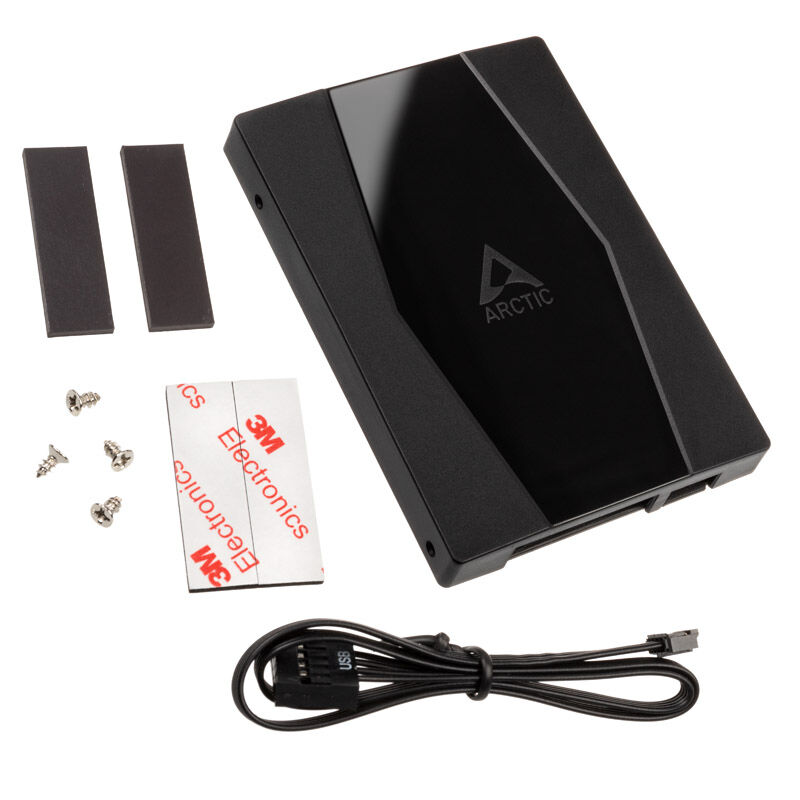

– Scope of delivery:
-1x RGB controller
– 1x USB connection cable
– 4x screws
– 2x magnetic tape
-2x Velcro tape
