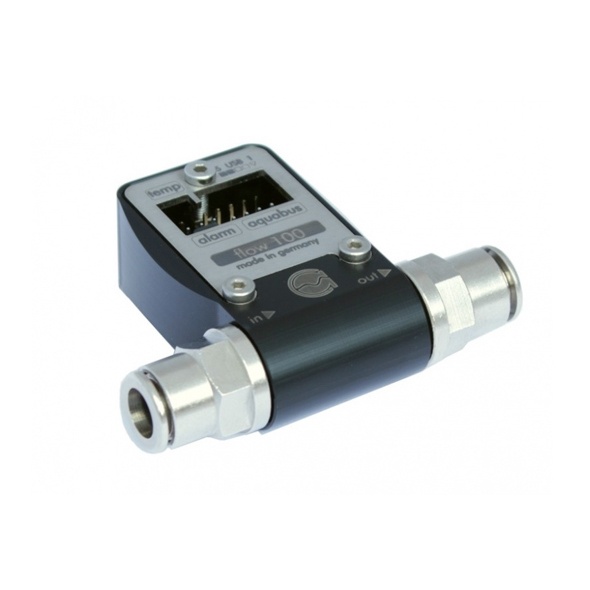

Aquacomputer flow rate sensor mps flow 100, G1/4
No products found
The flow sensors mps flow series are technically based on a differential pressure measurement, without any moving parts and due to the high sensitivity of the sensors has only a minimal flow resistance. With this in PC water cooling unique principle of the flow sensors mps flow series are extremely compact. The sensors have an integrated electronic controller with USB interface and aquabus a configurable alarm output, an integrated water temperature sensor and an external temperature sensor input. For monitoring and configuring the software is aquasuite available for download. The four-pole aquabus interface also allows direct connection to a aquaero 5 controller (not included). The alarm output can be configured either as an artificial speed signal for connection to a fan tachometer output signal processing (such as the motherboard) or timer output, for example, an LED for switching on alarm. For alarm monitoring are in addition to the measured flow and the water temperature and external temperature sensor input. The external temperature sensor input is compatible with all computers offered by Aqua compatible temperature sensors.
Currently there are three variants of the flow sensor mps to choose from, which differ in their range. Please select the one best for your system applicable sensor:
mps flow 100: Measuring range 20 – 100 liters per hour (Art. 71 214)
mps flow 200: Measuring range 40 – 200 liters per hour (Art. 71 213)
mps flow 400: Measuring range 80 – 400 liters per hour (Art. 71 216)
Compatibility List aquabus interface:
aquaero 5 XT (Art. 70 213 70 173 and)
aquaero 5 PRO (Art. 70 174)
aquaero 5 LT (Art. 70 175)
Compatibility list of external Temperatusensoreingang:
Inline temperature sensor G1 / 4 (art. 71 162)
Temperature sensor female thread G1 / 4 (71 160 and 71 170 Articles)
Temperature sensor 50 cm and 90 cm (Art. 71 125 and 71005)
Specifications:
Dimensions without connections and without cable: approx 55 x 34 x 21 mm
Connection thread G 1/4, delivered without connections!
Mounting thread: 2x M3, distance 24 m
Delivery:
A flow sensor
An internal USB connector cable
A aquabus / speedometer signal cable (3 pin)
