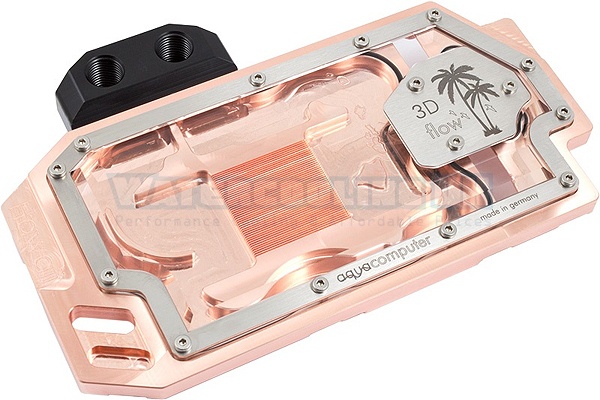

Combined GPU / RAM / VRM - cooler for graphics cards of the type R9 Radeon 290X and 290 with 4GB RAM accor ding to reference design .
This cool Combines the features of a graphics chip cooler and RAM - coolers in an elegant and very flat watercooler . Additionally the voltage regulators are cooled so effectively.
The kryographics for R9 290X and 290 water block offers outstanding cooling performance and a low flow resistance . All mounting threads are equipped with spacers for easy installation and to prevent prevention twisting the graphics card .
Combined GPU / RAM / VRM - cooler for graphics cards of the type R9 Radeon 290X and 290 with 4GB RAM accor ding to reference design .This cool Combines the features of a graphics chip cooler and RAM - coolers in an elegant and very flat watercooler . Additionally the voltage regulators are cooled so effectively.The kryographics for R9 290X and 290 water block offers outstanding cooling perfor...
Combined GPU / RAM / VRM - cooler for graphics cards of the type R9 Radeon 290X and 290 with 4GB RAM accor ding to reference design .This cool Combines the features of a graphics chip cooler and RAM - coolers in an elegant and very flat watercooler . Additionally the voltage regulators are cooled so effectively.The kryographics for R9 290X and 290 water block offers outstanding cooling perfor...
No products found
The areas Contacting the GPU and RAM modules are polished for excellent heat transfer . For the voltage regulators , a thermal pad with high thermal conductivity is included.
The kryoconnect waterblock series features a delrin connection terminal did Has A Significantly Reduced flow resistance Compared to the previous aquagraFX series . The terminal is Fastened to the water block by three screws and Has G1 / 4 inlet and outlet ports on each side for flexible installation. Two sealing screws are Supplied to seal the unused connection threads .
The terminal can be Replaced with kryoconnect kits for SLI configurations ( art. no.17196 , 17197 or 17198 , not included in delivery ) .
material :
Base part: Copper
Top cover : Acrylic glass with stainless steel frame
Terminal: Delrin
Scope of delivery :
cooler without connectors ( screw threads G 1/4)
mounting material incl Thermally Conductive pad
two sealing plugs for unused connection threads
Please note:
Graphic card and fittings are not included in delivery, please order separately . Threads are G 1/4. Thermally Conductive paste is required for installation.
