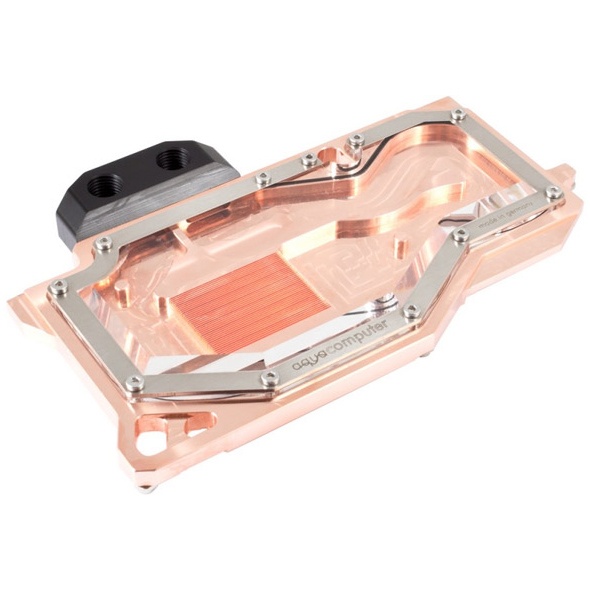

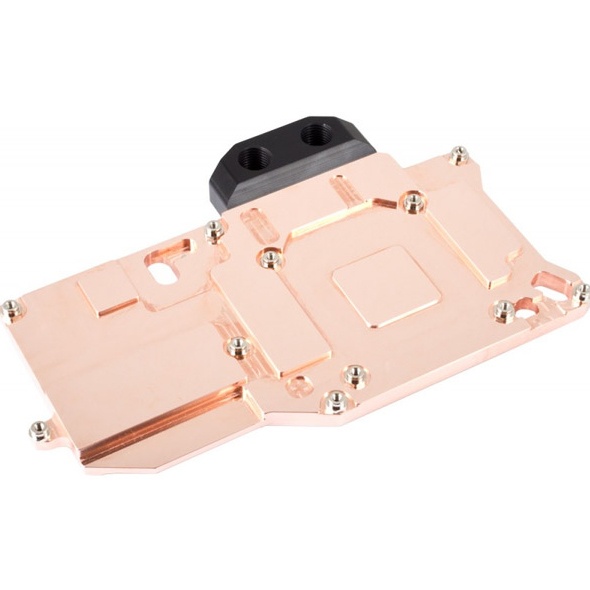

Aqua Computer GTX 680 kryographics for acrylic glass edition

The kryographics for GTX 680 waterblock offers outstanding cooling performance and a low flow resistance. All mounting threads are equipped with spacers for easy installation and to prevent prevention twisting the graphics card. New companies in the areas the GPU and RAM modules are polished for excellent heat transfer. For the voltage regulators, a thermal pad with high thermal conductivity is included.

The kryoconnect waterblock series features a delrin has a connection terminal did Significantly reduced flow resistance aquagraFX Compared to the previous series. The terminal is fastened to the water block by three screws and has G1 / 4 inlet and outlet ports on each side for flexible installation. Two sealing screws are Supplied to seal the unused connection threads. The terminal can be Replaced with kryoconnect kits for SLI configurations (item no 17196, 17197 or 17198, not included in delivery).

material:
Base part: Copper
Top cover: Acrylic glass with stainless steel frame
Terminal: Delrin

Scope of delivery:
cooler without connectors (screw threads G 1/4)
mounting material incl Thermally Conductive Pad
two sealing plugs for unused connection threads
Torx screwdriver (for removal of the air cooling unit)

Please note:
Graphic card and fittings are not included in delivery, please order separately. Threads are G 1 / fourth
