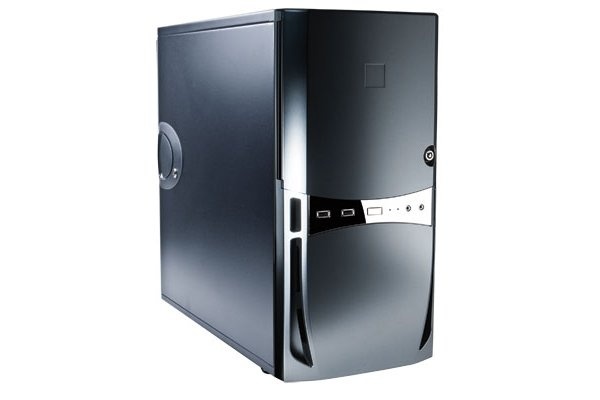

Antec SONATA PROTO

features:

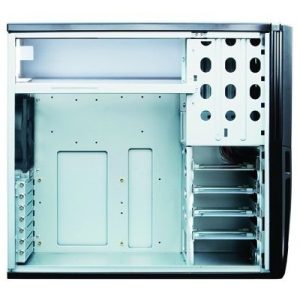

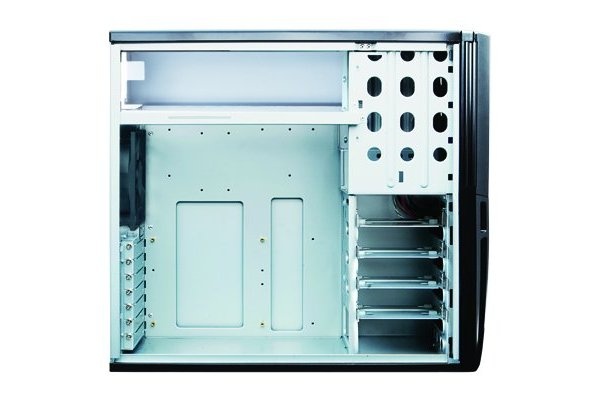

10 Drive Bays:
– 3 bays for 5.25-inch drives with external access
– 2 bays for 3.5-inch drives with external access
– 4 bays for 3.5-inch drives with no outside access
– 1 slot for 2.5-inch SSD drives without access from the outside (below)
7 expansion slots
Sophisticated cooling system:
– TriCool ™ fan (120 mm) with two speeds at the back
– One fan (120 mm) in the center (optional)
Built-in washable air filter
I / O ports on the front panel:
– 2 USB 3.0 ports
– Audio input and output (AC97 and HDA compatible)
0.8 mm thick cold rolled steel increases durability
Power unit not included in delivery
Compatible Motherboards: Mini-ITX, Micro-ATX or ATX standard
Unit dimensions:
– 430 mm (H) x 216 mm (W) x 475 mm (D)
– 17.0 (H) x 8.5 (W) x 18.7 (D)
Packing size:
– 500 mm (H) x 270 mm (W) x 550 mm (T)
– 19.7 (H) x 10.7 (W) x 21.7 (D)
weight:
– Net: 7.5 kg / 16.7 lbs
– Gross: 10.0 kg / 22.0 lbs
