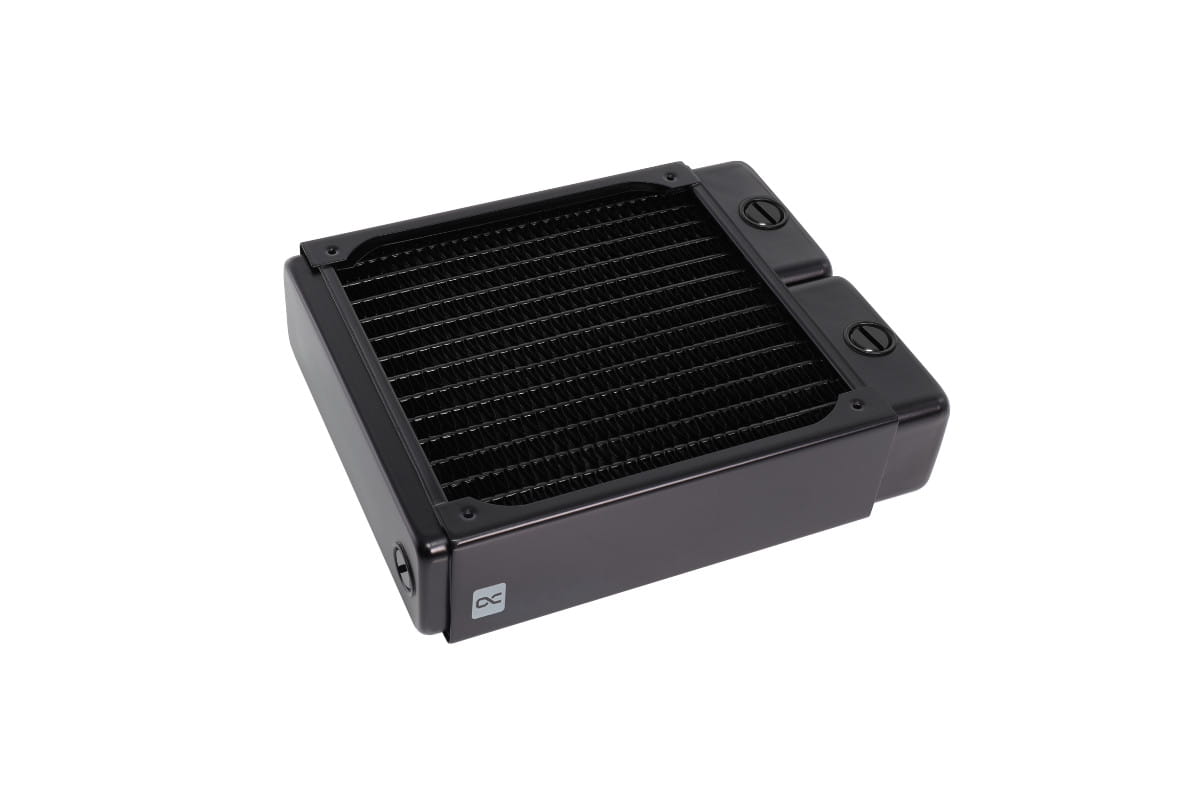

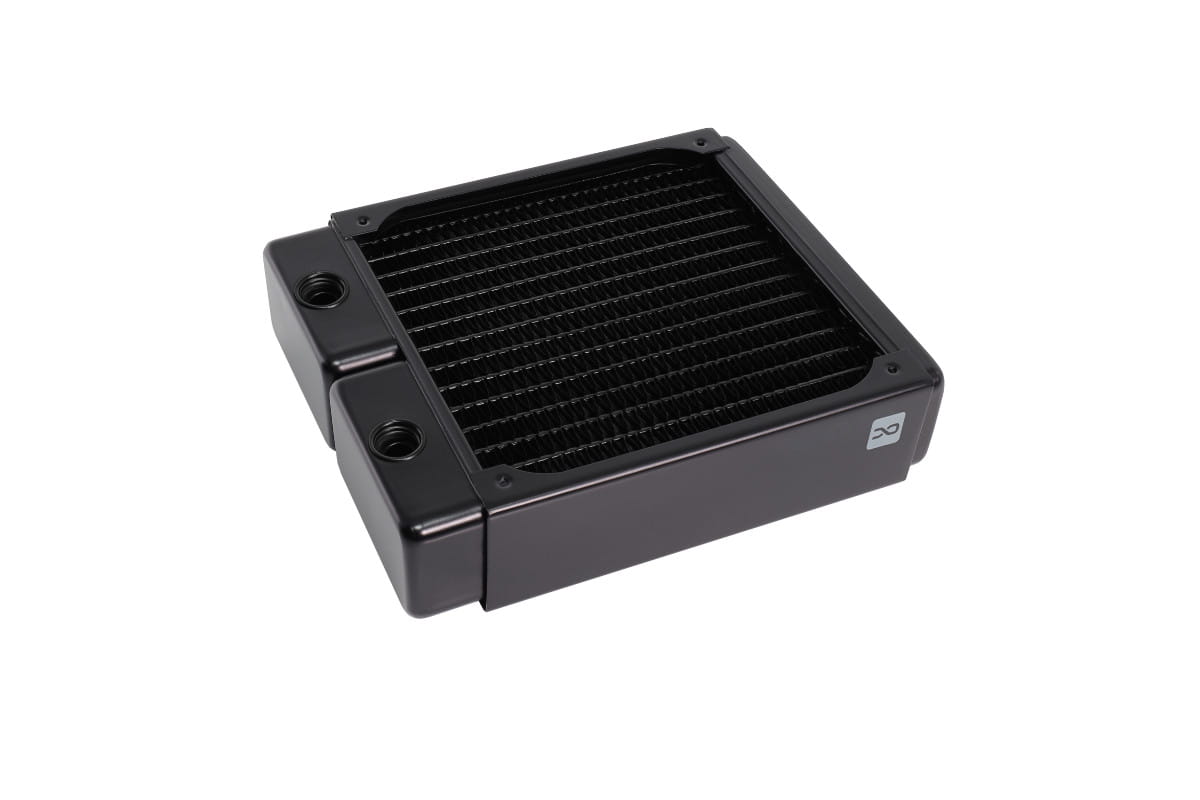

Alphacool NexXxoS XT45 Full Copper 140mm radiator V.2

Increase the performance of your system with the new Alphacool NexXxos V.2 radiators.

rnrnrn

New and yet proven

Alphacool also has been able to combine the best quality with the most beautiful design for the
NexXxos V.2 radiators. The end chambers have been manufactured in a noble, modern design. In
addition, the NexXxos ST30 V.2 radiators now also have a G1/4; connection at the opposite end
chamber than the inlet/outlet for easy bleeding of the loop. Mount your Alphacool NexXxos radiator
in any position, the possibilities are unlimited.

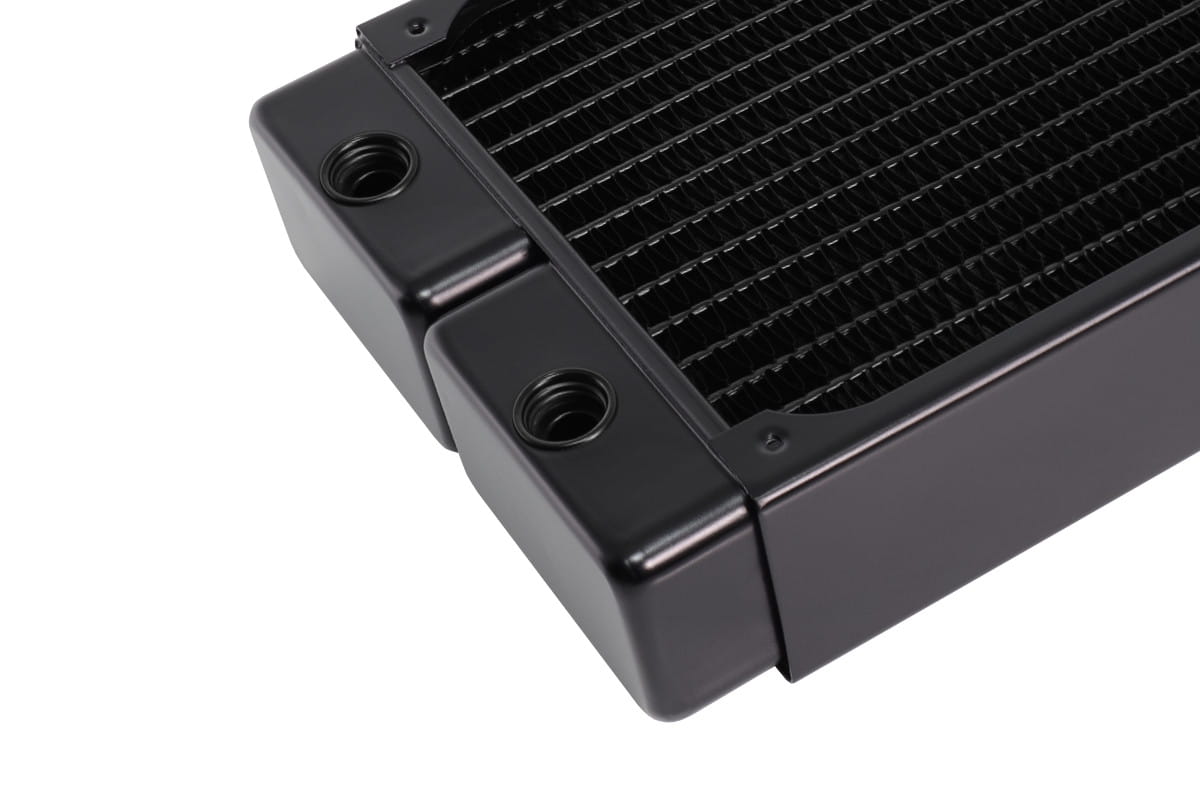

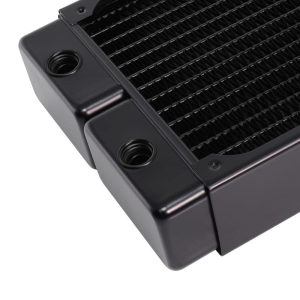

Countersunk screw plugs – anything but ordinary

rnrnrn

For the first time Alphacool has created countersunk the screw plugs for the NexXxoS range. This
unique, patented design allows you to stay flexible with your Alphacool NexXxos V.2 Radiator.
Mount your radiator the way you want it. Thanks to the differently positioned inlets and outlets, you
remain individual and unique.

Solid copper – the best performance at the highest level

As always with Alphacool, the new Alphacool NexXxos series is also made of solid copper. Thus, the
Alphacool NexXxos radiators offer you the highest thermal conductivity for the best performance.
Rely on the No. 1 in materials.

Different sizes – same quality

The new Alphacool NexXxos V.2 is available in many different sizes and thicknesses. Thanks to its
special shape, installation is childs play, even with the larger radiators. Decide for yourself which
size is perfect for your system and always choose the best quality.

rnrnrn

 ATTENTION: The NexXxoS V.2 radiators are only compatible with connections with a maximum thread length of 5 mm.

rnrnrn

Technical Details

rnrnrn

rnrn
• WxDxH 514 x 124 x 45,5 mm

rnrnrn

• Net Weight 1409g

rnrnrn

• Maximum Working Temperature 180 degreesC

rnrnrn

• Material (fins/channels/outer shell): Cooper

rnrnrn

• Material (outer shell)

rnrnrn

• Fins per Inch 12

rnrnrn

• Connections 5x G1/4

rnrnrn

• Screw Size M3

rnrnrn

• Fan size 120 mm

rnrnrn

• Fans 4 per side, 8 total

rnrnrn

• Lüftergewinde M3

rnrnrn

• Pressure Tested 1,5 Bar

rnrnrn

• Certificates CE, FC, ROHS

rnrn

rnrnrn

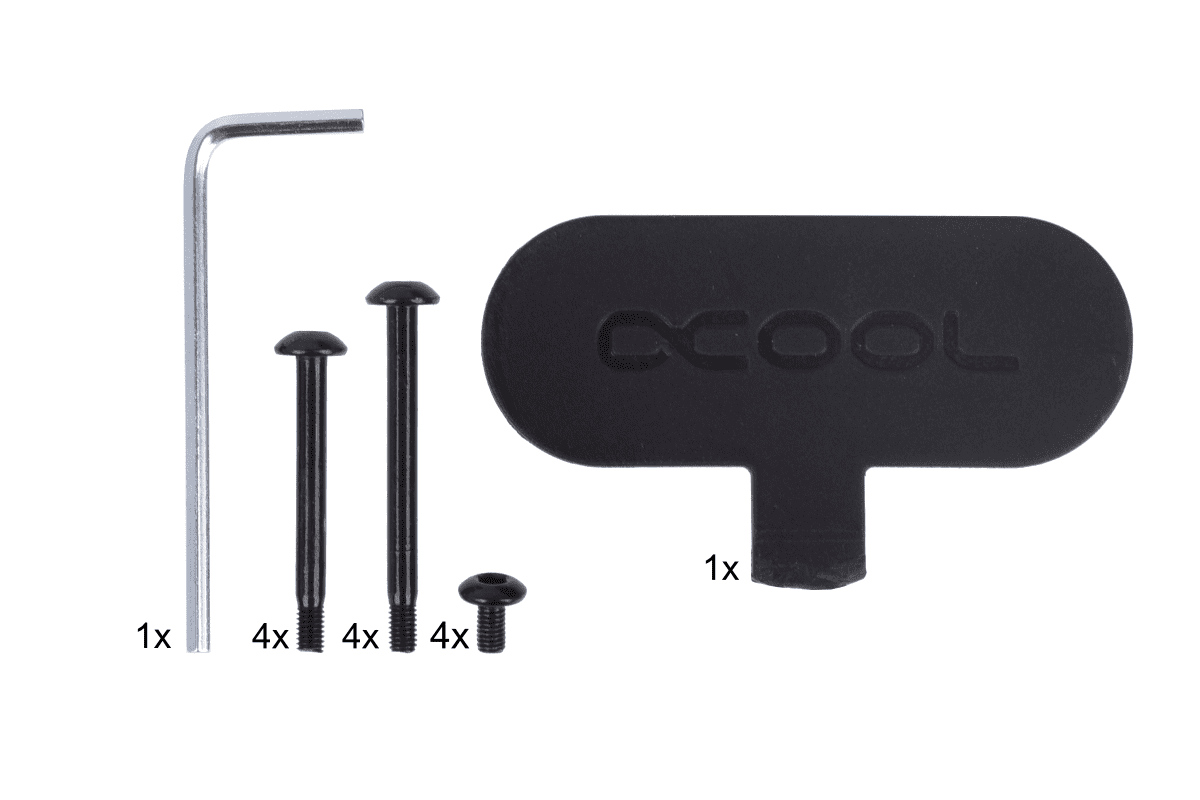

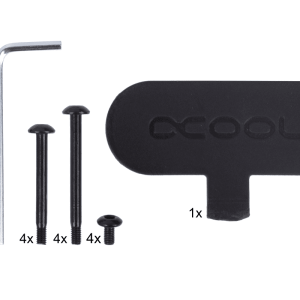

Scope of Delivery

rnrnrn

rnrn
• Alphacool NexXxoS XT45 Full Copper 140mm radiator V.2

rnrnrn

• Mounting material
