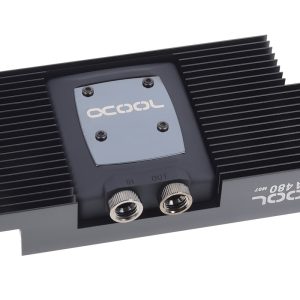

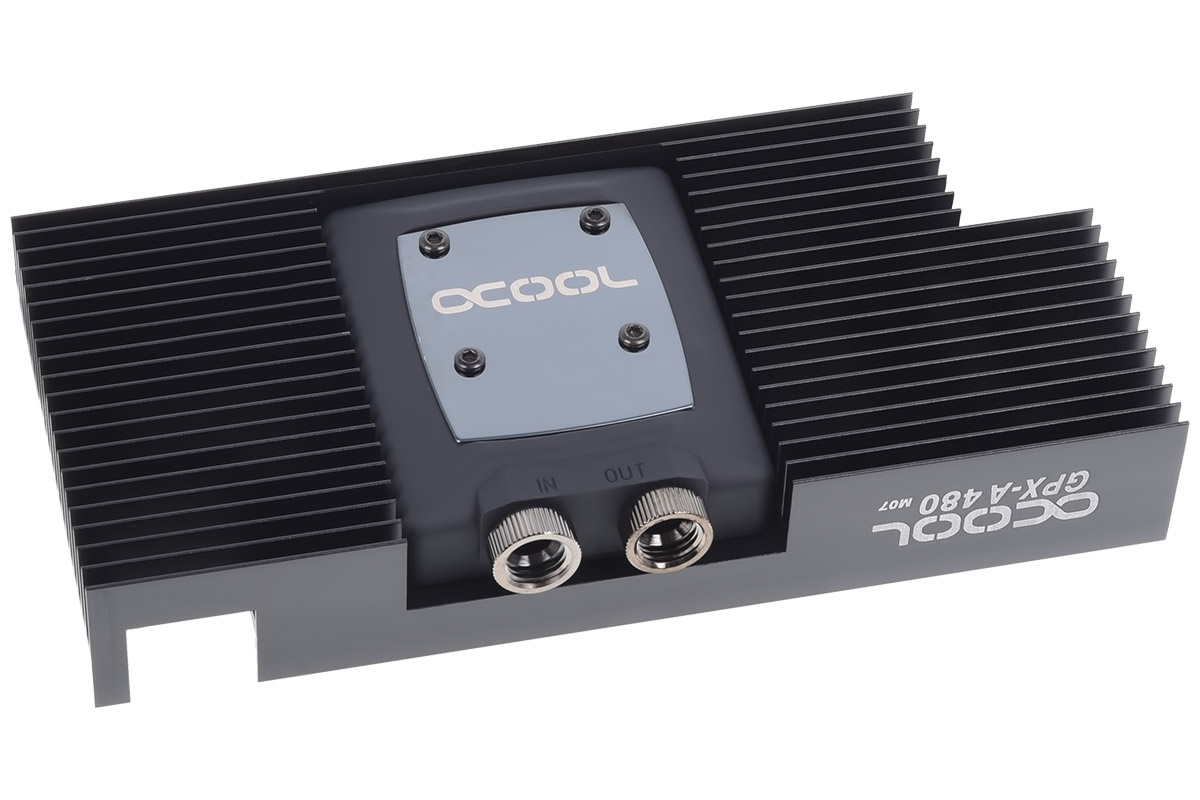

Alphacool NexXxoS GPX - AMD R9 480 M07 - incl. backplate - Black

Function
The GPU is actively cooled through the ingenious new injection technology. All the other chips are sufficiently cooled through the passive cooler in which the GPU water cooler is enclosed.

Cross Slot Structure
The cross slot technology in the base plate, patented in 2004 and used in the Alphacool NexXxoS XP, has been developed further. The fins and channel structure have been refined. The remaining panes are 0.5 x 0.5mm in size and 2.5mm tall. This enables a very large and fast rate of heat transfer from the copper to the coolant.

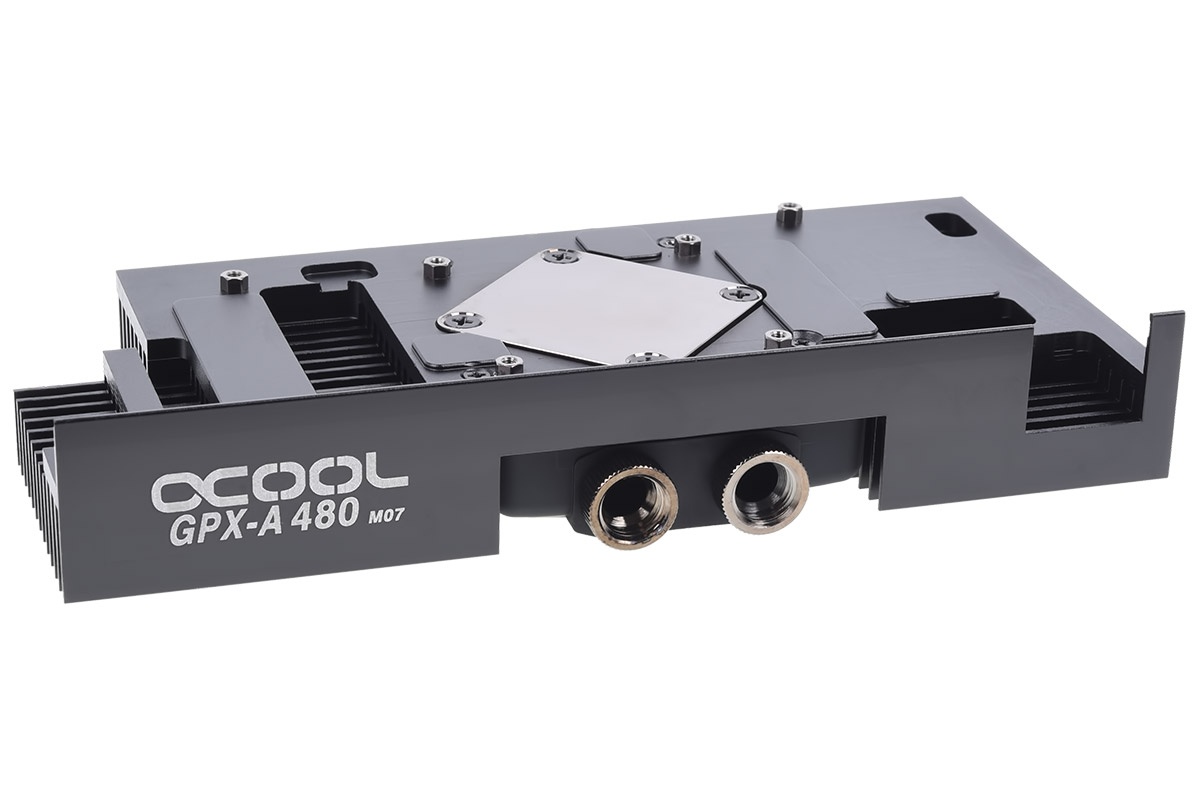

SLI Operation
Through the outside-facing inlet and outlet, this cooler can be used in SLI configurations with little difficulty. This way, up to four graphics cards can be connected with the Alphacool GPX SLI Connector.

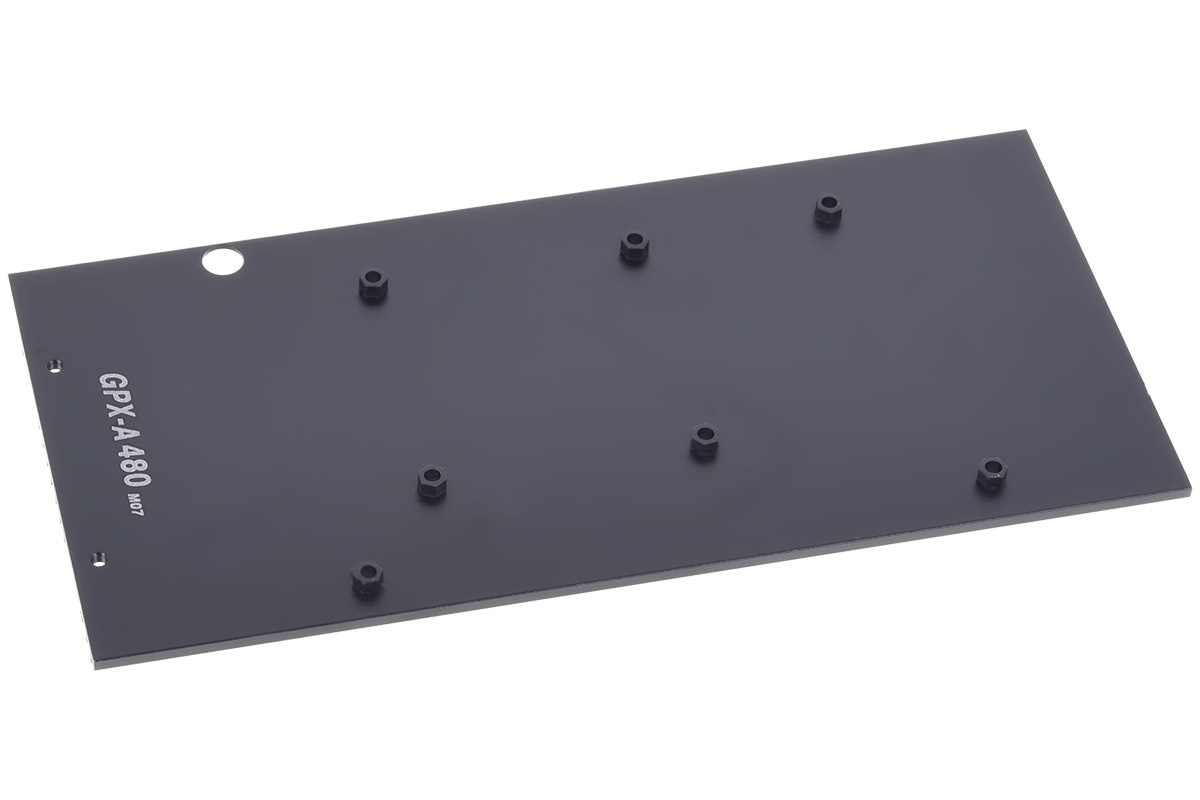

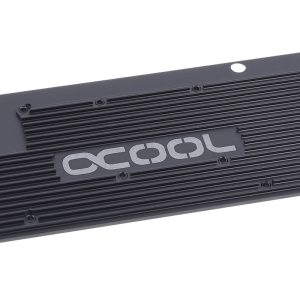

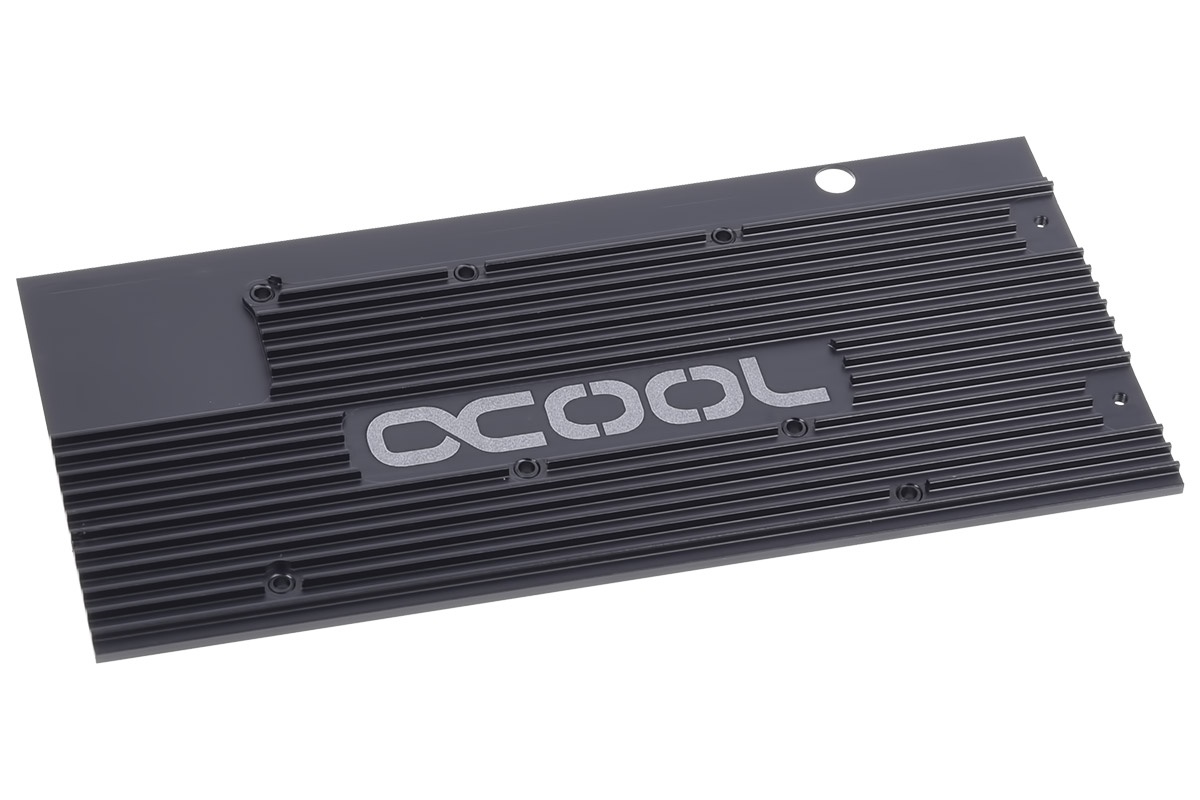

Backplate
Every cooler now includes a backplate which uses little passive cooling fins to cool the graphics card again, as well as giving the graphics card a finished appearance and protecting it at the same time.

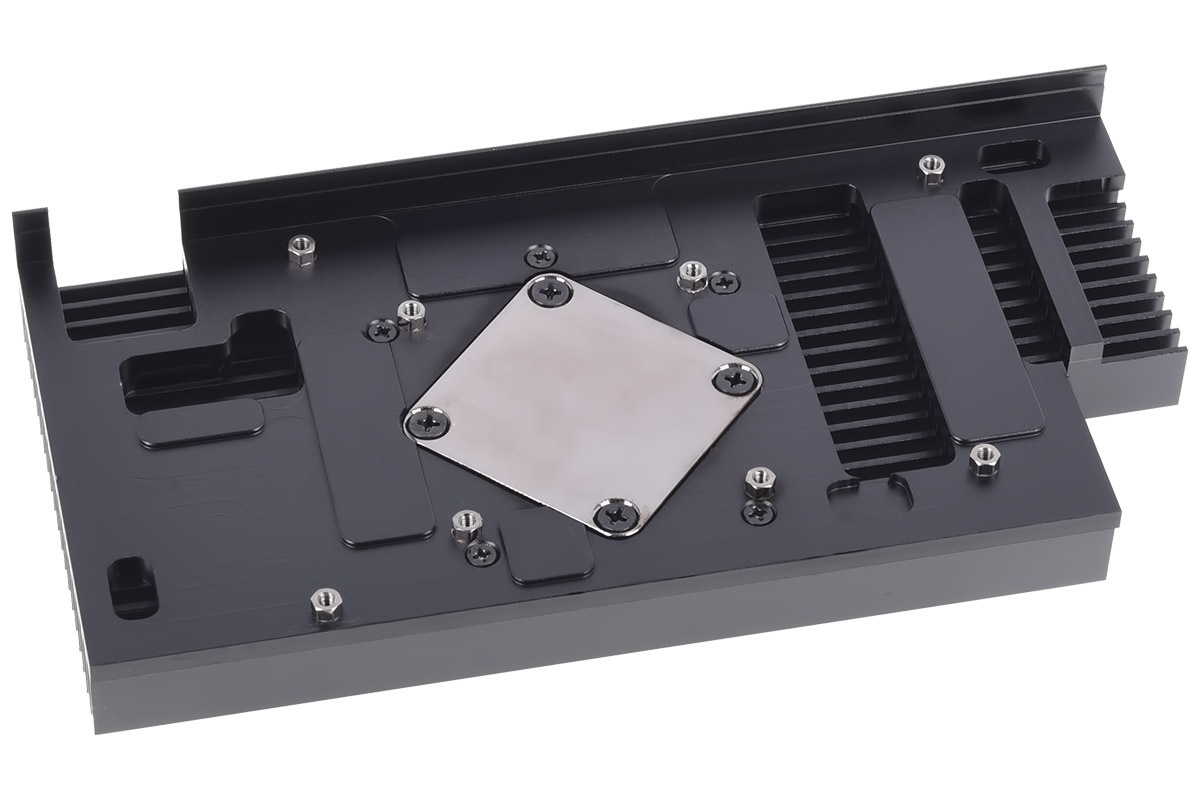

Cooling fins
Passive cooling happens through perfectly balanced, barely 18mm deep cooling fins, which completely cover the remaining parts of the graphics card. Light air circulation in the case means this cooler is in no way inferior to conventional coolers.

Graphics card not included

Compatibility

    XFX Radeon RX 480 RS, 8GB GDDR5, DVI, HDMI, 3x DisplayPort (RX-480P8LFB6)
    XFX Radeon RX 480 8GB GDDR5 (RX-480P8LDLR)
    XFX Radeon RX 480 RS 4GB GDDR5 (RX-480P4LFB6)
    XFX Radeon RX 480 RS 8GB GDDR5 (RX­480P836BM)

Scope of Delivery

    1x Graphics card cooler
    1x Backplate
    Thermal pads
    Thermal paste
    Assembly materials
