Aerocool 800 Midi-Tower - blue

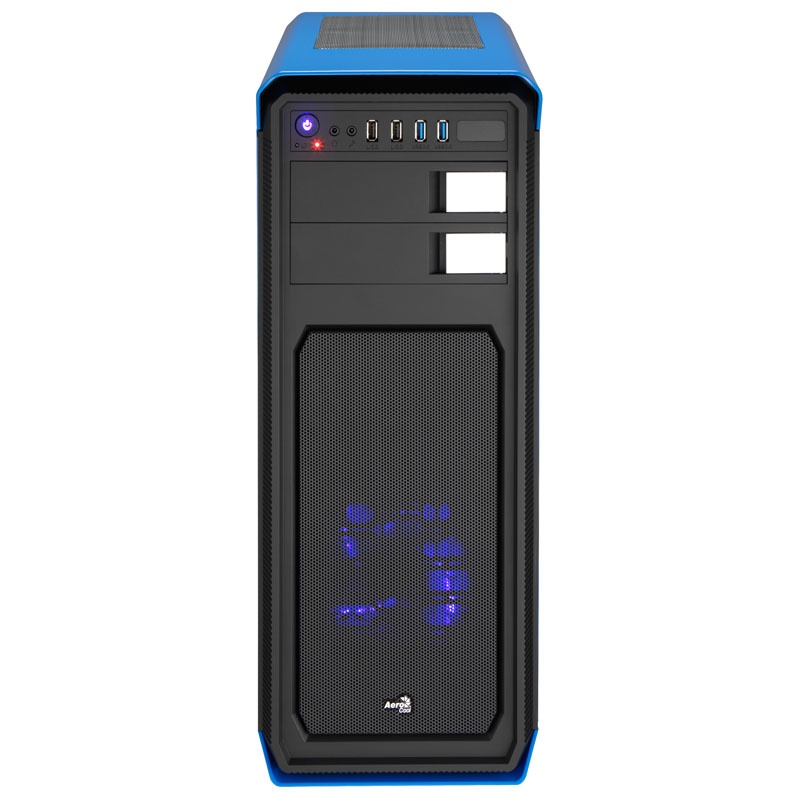

When blue-black Aerocool 800 Midi-Tower, the manufacturer relies on a simple but effective design, which is characterized by straight lines and large black mesh panels on the front and lid. About the mesh element on the front there are two external 5.25-inch slots for optical drives or fan controllers and card readers. The upper part of the front of houses alongside the power and reset buttons and the modern and easily accessible by the practical placement I / O panel with one audio in / out and the two USB 3.0 or USB 2.0 ports. The rear portion of the upper part is also provided with a mesh element which occupies about two-thirds of the total length.

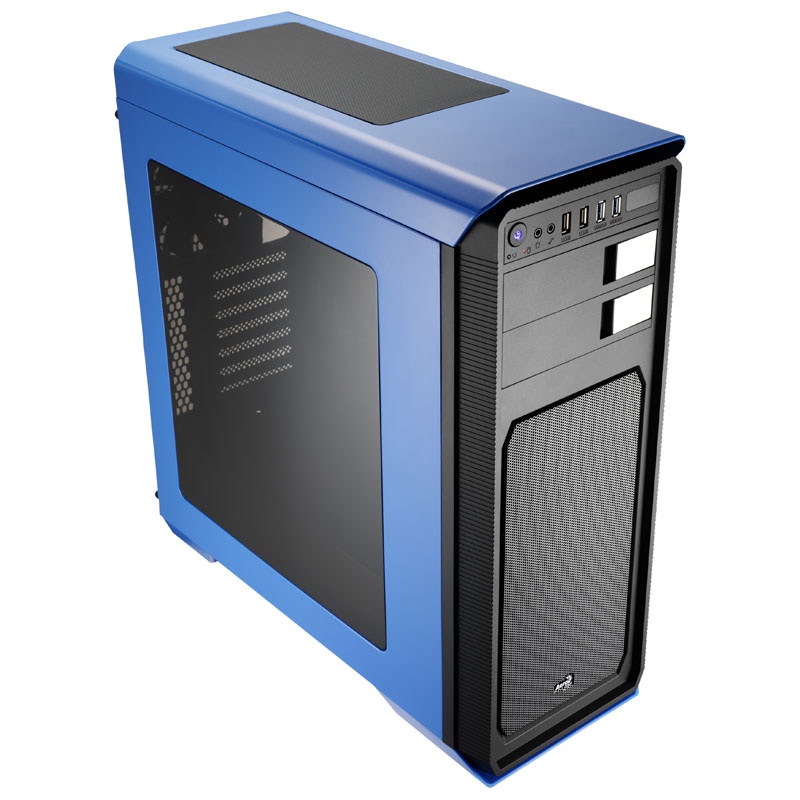

If you have solved the view from the front and the lid, lands the eye send next on the tinted window (Dimensions: 312 times 340 mm) on the left side, which allows interesting insights into the inner workings of PCs and invites you to to give special effort in the optical tuning of the hardware components. The black interior is largely classically designed and convinces also with clever design features such as the thanks staggered backward drive cages ordinary radiator support to the front.

For adequate ventilation all hardware components in the Aerocool 800 provide up to five fans, including a pre-installed at the front 120 mm fan, which initially draws cold air. The warm exhaust air from the housing interior is then transported by a likewise pre-installed 120mm fan in the back and a choice of two optional 120 mm fans in the lid, while the ATX power supply is mounted completely decoupled from the rest of the air circulation at the bottom and thus particularly protected is , Here all the air imbibing fan with removable (and the cover magnetic) to protect dust filter.

For alternative cooling of the PC by means of water cooling, can each in the lid (120 ?? 240 mm, up to 32 mm deep) and on the front (here up to 45 mm deep) 120-, 140-, 240- or 280-mm Radiators are mounted, while can also find a 120-mm radiator space at the back. Even with the other equipment options, the AERO 800 fully convincing and has two drive cages for two 3.5-inch or 2.5-inch disk and a third drive cage for three 2.5-inch SSDs / HDDs.

Built-up graphics cards or expansion cards can be up to 390 mm long while the CPU cooler can be up to 155 mm high and can be easily mounted on any ATX very, Micro-ATX or Mini-ITX board. Several rubberized openings in the tray also allow a tidy cable management inside the enclosure.

Technical details:

    Dimensions: 200 x 501 x 475.8 mm (W x H x D)
    Material: Steel (0.55 mm), plastic
    Weight: 6.15 kg
    Color: Blue, Black
    Form Factor: ATX, Micro-ATX, Mini-ITX
    Fan total possible:
    2x 120 mm (lid)
    2x 120/140 mm (front)
    1x 120 mm (rear)
    Of this pre-installed:
    1x 120 mm (front, black, LED, 1,100 rev / min, 36.4 m³ / h, 26.5 dB (A), 1.32 mm H2O)
    1x 120 mm (rear; black, 1,200 rev / min, 32.1 m³ / h, 23.5 dB (A), 0.64 mm H2O)
    Radiator-Mountings (without fans slots):
    1x max. 120/240 mm (lid, max. Depth 32 mm) 1x max. 120 mm (rear) 1x max. 120/140/240/280 mm (front, max. Depth 40 mm)
    Filters: power supply, cover, front (removable)
    Drive Bays:
    2x 5.25 inches (external)
    2x 2.5 / 3.5 inch (internal)
    3x 2.5 inch (internal)
    Power Supply: 1x standard ATX (optional)
    Extension slots: 7
    I / O Panel:
    2x USB 3.0 (internal connection)
    2x USB 2.0 (internal connection)
    1x per Audio In / Out
    Maximum power supply Length: 180 mm
    Maximum video card length: 390 mm (without central drive cage)
    Maximum CPU cooler height: 155 mm
