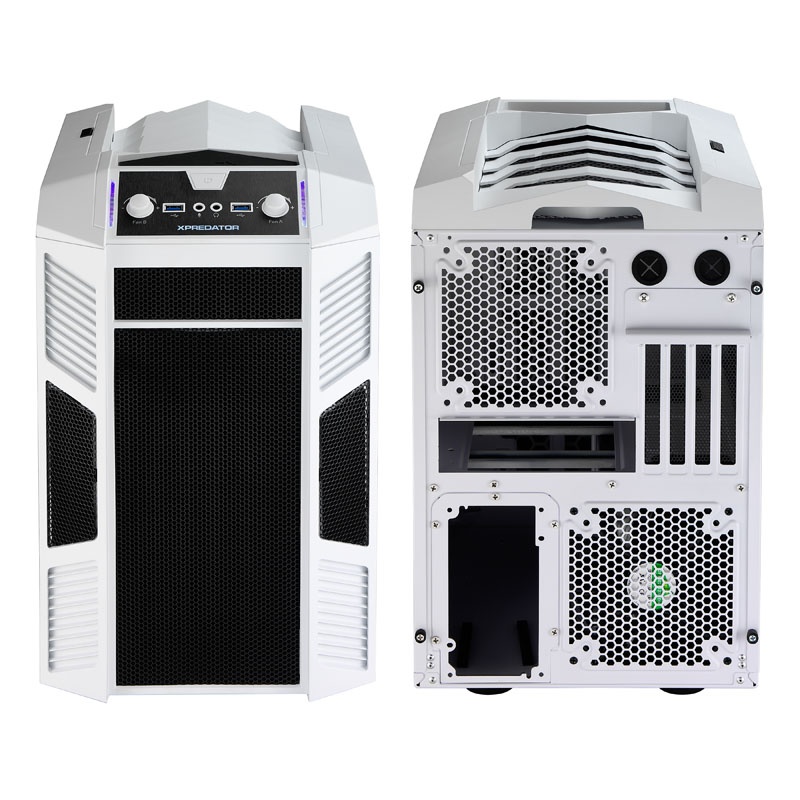

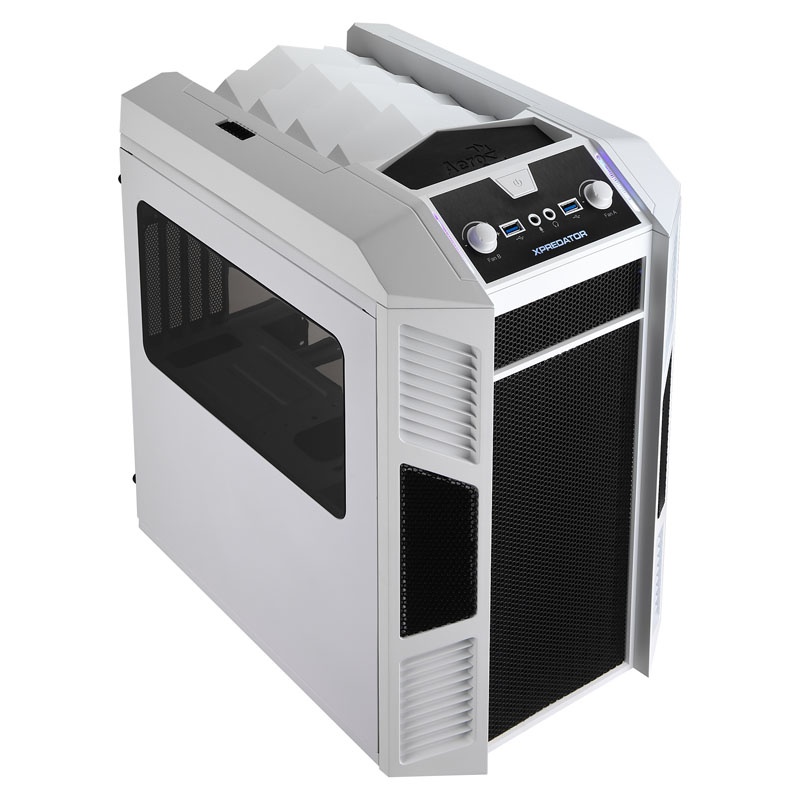

With the XPredator Cube, which is offered here as a white version with black sections in front and lid, Aerocool has expanded its XPredator range of cases and provides the ability to focus, very powerful micro systems with Mini-ITX or Micro-ATX motherboard at the heart of to build, which are either controlled by massively good Aircooling or by lush water cooling on temperature. The design of the XPredator cubes can thereby identify which Aerocool range of cases the small-form-factor case is assigned without doubt.
This begins with the striking front section with a lot of mesh, goes beyond the almost one to one the XPredator X3 Midi-Tower entliehenem I / O panel with its two USB 3.0 ports and the two fan control knobs (per channel max. 15W ) and will make the clearest on the cover, where open and close four white, wedge-shaped ventilation flaps using a slider on the left side. Depending on the situation, thus the Silent mode priority (closed) or it is the cooling potential of the underlying fan (optional 2x 120 or 140 mm) or a radiator (to 240 or 280 mm) increased (open).
With the XPredator Cube, which is offered here as a white version with black sections in front and lid, Aerocool has expanded its XPredator range of cases and provides the ability to focus, very powerful micro systems with Mini-ITX or Micro-ATX motherboard at the heart of to build, which are either controlled by massively good Aircooling or by lush water cooling on temperature. The design of the X...
With the XPredator Cube, which is offered here as a white version with black sections in front and lid, Aerocool has expanded its XPredator range of cases and provides the ability to focus, very powerful micro systems with Mini-ITX or Micro-ATX motherboard at the heart of to build, which are either controlled by massively good Aircooling or by lush water cooling on temperature. The design of the X...
No products found
The Aero XPredator Cube is not only top-side extraordinarily receptive happy, it can also be equipped with two rear positions with 120er- or 140s-fans (is a 140s pre-installed) and behind the black hole mesh front allows you to control other dual heat exchanger (max. 240/280 mm) and two 120 or 140 mm fan placed if you do not want to stay with the big 200-mm-propeller that is there advanced from Aerocool. The Cooling – whether by air or water – is therefore extremely well implemented for a compact housing. Moreover, the layout inside the XPredator cubes can be described as very modern.
The upper area is all alone of the underlying Mini-ITX or Micro-ATX board, or the graphics card (up to 34.5 cm without front fans!) And a processor cooler (max. 19cm without lid fan) reserved. Furthermore, some still one external 5.25-inch ODD, whose frame is removable (for. Example, if a dual-radiator has to be used in the cover), but this may, on its underside, two 2.5-inch drives wear. In the lower floor there is a removable cage for a further three small or optionally 3.5-inch disk is available. The large hard drives without tools and decoupled mounted.
Similarly, the ATX power supply that can be accommodated here and can use the entire space to the front (at least 32 cm). Fresh air sucks it at the right outside and blows it out backwards, a magnetically adhesive filter protects the PSU from dust. This dual compartment layout gives the components in Aero XPredator Cube not only a lot of space, but also contributes significantly to the fact that the hardware does not heat each other. Also shows the view through the top mounted Window in the left part only the respectable parts, while boring SSDs / HDDs, Cable Assemblies are hidden.
Technical Details:
Dimensions: 280 x 380 x 350 mm (W x H x D)
Weight: 7.2 kg
Material: steel (0.7 mm), plastic
Color: White, Black
Form Factor: Mini-ITX, Micro-ATX
Fan total possible:
1x 200 mm / 2x 140/120 mm (front)
2x 140/120 mm (rear)
2x 140/120 mm (cover)
Thereof pre-installed:
1x 200 mm (front, LED)
1x 140 mm (rear)
Radiator Mountings (partial waiver of fan slots):
1x max. 280/240 mm (front)
2x max. 140/120 mm (rear)
1x max. 280/240 mm (lid, with waiver of 5.25-inch frame)
Fan control: 2 channels, max. each 15 W, infinitely
Filters: front, power supply (removable)
Drive bays:
1x 5.25 inches (external)
3x 3.5 inch (internal; tools)
5x 2.5 inch (internal; 3x instead of 3.5 inches, 2x on 5.25-inch frame)
Power supply: 1x Standard ATX (optional)
Expansion Slots: 4
I / O panel:
2x USB 3.0 (internal connection)
1x per Audio In / Out
Maximum PSU length: 320 mm
Maximum video card length: 320 mm (with front fan)
Maximum video card length: 345 mm (without front fan)
Maximum CPU cooler height: 165 mm (with lid fans)
Maximum CPU cooler height: 190 mm (without lid fan)
