EK-Loop PCI Bracket Pass-Through [3831109908426]

This product aims to optimize water-cooling setups by eliminating limitations imposed by case size.

Previously, users had to resort to drilling holes in the case to mount two pass-throughs, but with this product, that is no longer necessary. The EK-Loop PCI Bracket Pass-Through simplifies the entire process, requiring no tools or modifications to the case, ensuring no risk of voiding the warranty or compromising the resale value of the case.

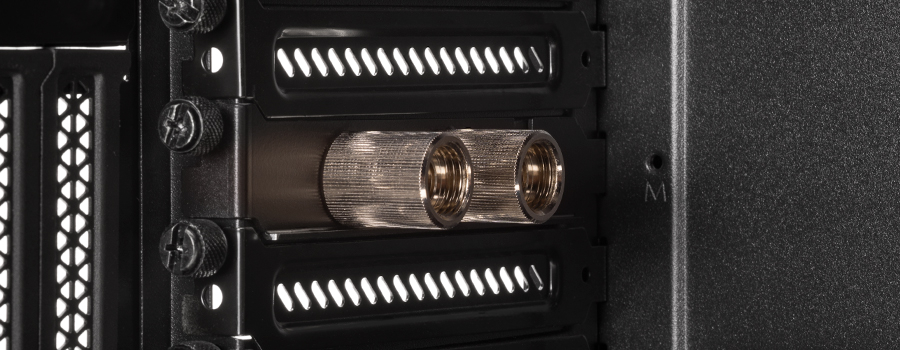

The PCI cover integrates two pass-through fittings and a cable management hole to ensure an organized setup. Dual G1/4" ports on both sides offer flexibility for selecting tubing and fitting type and size. Specifically designed for this PCI expansion slot cover, the integrated pass-through adapter fittings ensure a secure and reliable connection. The cable management hole, featuring a rubber gasket, prevents friction damage to cables passing through the metal gap on the bracket.

Technical data:
- Port Finish: Nickel
- Port diameter: 16,5mm
- Port radius: 8,25mm
- Port Material: Brass
- Ports: 4
- External port length: 14,5mm
- Internal port length: 21,5mm
- Thread: G1/4" BSP; 4.5mm male thread length
